Zenoah G4501 User Manual

GB-3
G4501/G5201/G5201P
G
B
Power unit:
Displacement (cm
3
):
G4501 ................................................................. 45.0
G5201/G5201P ................................................... 49.3
Fuel: .................Mixture (Gasoline 50: Two-cycle oil 1)
(when using ZENOAH genuine oil)
Fuel tank capacity (cm
3
) ........................................550
Chain oil: ................................ Motor oil SAE# 10W-30
Oil tank capacity (cm
3
) .......................................... 260
Carburetor: ...................Diaphragm type (Walbro WT)
ignition system: ................................... Pointless (CDI)
Spark plug:
G4501 ................................................... NGK BPM7A
G5201/G5201P ......................................NGK BPM8Y
Oil feeding system: ......Automatic pump with adjuster
Sprocket (Teeth x Pitch): ............................ 7T x 0.325
Dimensions (L x W x H)(mm):
G4501/G5201 ...................................420 x 235 x 270
G5201P .............................................420 x 245 x 270
Dry weight
Power unit only (kg):
G4501 ................................................................... 4.8
G5201 ................................................................... 4.9
G5201P .................................................................5.0
Cutting head:
Guide bar
Type: ................................Hard nose, Sprocket nose
Size (in. (mm)): .............................................18 (450)
Saw chain
Type: ....................................................Oregon 21BP
Pitch (in. (mm)): ......................................0.325 (8.26)
Gauge (in. (mm)): ..................................0.058 (1.27)
Power (kw/min
-1
)
G4501 ......................................................... 2.1/9,000
G5201 ....................................................... 2.7/10,000
G5201P ..................................................... 2.6/10,000
Max speed (min
-1
)
G4501 ............................................................. 13,500
G5201 ............................................................. 14,500
G5201P ........................................................... 14,000
Idle speed (min
-1
)
G4501 ............................................................... 2,500
G5201 ............................................................... 2,500
G5201P .............................................................2,500
Noise at Operator’s ear (Racing)
G4501.....105dB (A)
G5201.....107dB (A)
G5201P...107dB (A)
Specicatiotnsaresubjecttochangewithoutnotice.

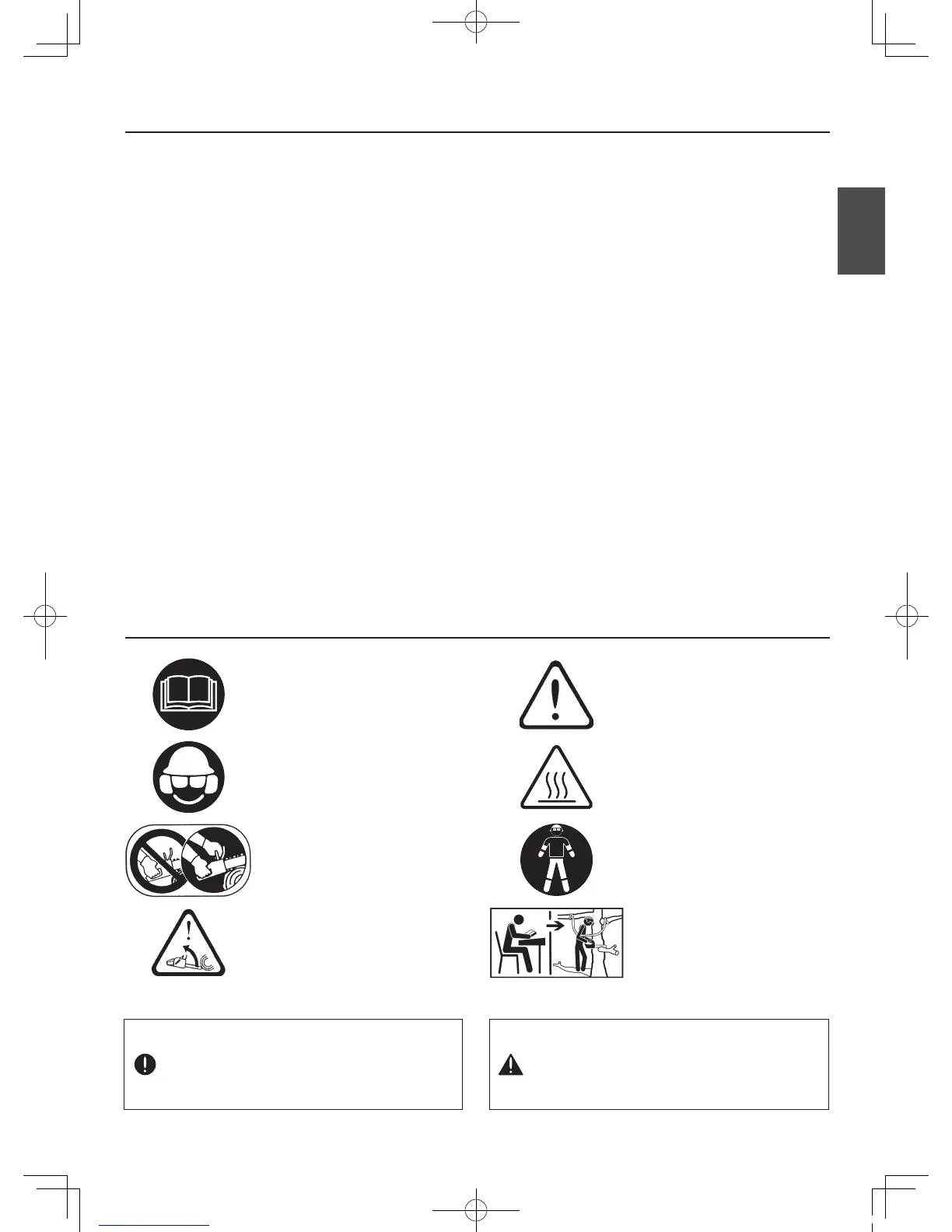

3. Warning labels on the machine
(1) Read operator's manual be-
fore operation this machine.
(5) Warning/Attention.
(2) Wear head, eye and ear pro-
tection.
(6) Never touch hot surface.
(3) Use the chain saw with two
hands.
(7) Use appropriate protections
for foot-leg and hand-arm.
(4) Warning! Kickback it’s dan-
ger.
(8) This saw is for trained tree
service operators only.
Never remodel the product.
We won’t warrant the machine, if you use the
remodeled product or you don’t observe the
proper usage written in the manual.
If warning label peels off or becomes soiled and
impossible to read, you should contact the
dealer from which you purchased the product
to order new labels and affix them in the re-
quired location(s).
2. Specicaions
01-G4501･5201･5201P_GB_306＿四.indd 3 13.6.20 11:29:33 AM

Zenoah G4501 Specifications

General

Brand	Zenoah
Model	G4501
Category	Chainsaw
Language	English
