9. Fuel tank
10. Starter rope handle
11. Starter housing
12. Front handle
13. Chain oil tank
14. Bar tip sprocket
15. Saw chain
16. Guide bar
17. Throttle trigger
18. Throttle trigger lockout
19. Belt eyelet
20. Clutch cover
21. Chain tensioning screw
22. Product and serial number plate
23. Chain catcher
24. Oil pump adjustment screw
25. Bar nut
26. Transportation guard
27. Operator's manual
28. Tool kit
29. Vibration damping system, 3 units
30. Spark plug
31. Spark plug cap
32. Muffler
33. Air filter
34. Brake band
35. Chain adjuster pin
36. Muffler cover

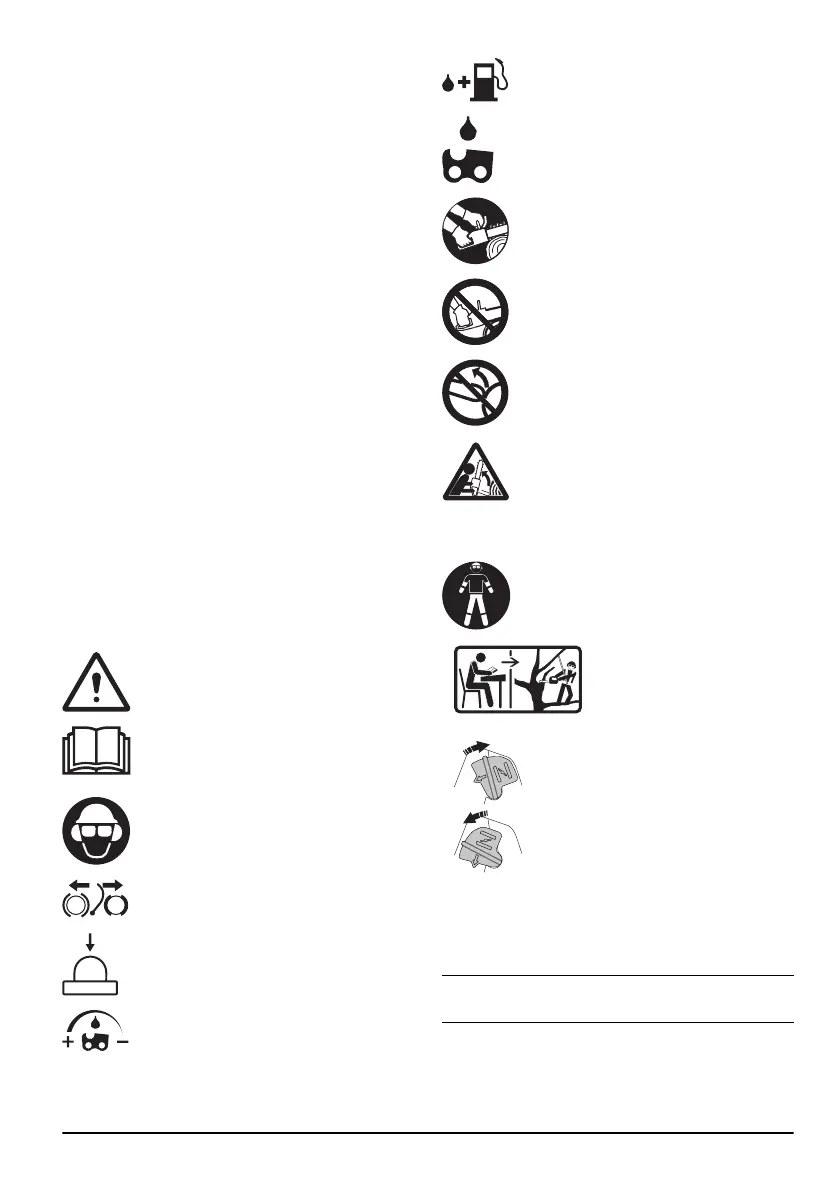

Symbols on the product
Be careful and use the product correctly.
This product can cause serious injury or
death to the operator or others.
Read the operator's manual carefully and
make sure that you understand the
instructions before you use this product.
Always wear approved protective helmet,
approved hearing protection and eye
protection.
Chain brake, engaged (right). Chain brake,
disengaged (left).
Air purge bulb.
Adjustment of the oil pump.
Fuel.
Chain oil.
Both of the operator's hands must be used
to operate the chainsaw.
Never operate the chainsaw holding it with
one hand only.
Never let the guide bar tip come in contact
with any object.
Warning! Kickback may occur when the
nose or tip of the guide bar touches an
object, and cause a lightning fast reverse
reaction, kicking the guide bar up and
towards the operator. May cause serious
personal injury.
Use appropriate protections for foot-leg and
hand-arm.
This chainsaw should only
be used by persons who
are specially trained in
tree maintenance work.
See operator's manual!
Work position.
Choke.
yyyywwxxxx The rating plate shows se-
rial number. yyyy is the
production year and ww is
the production week.
Note: Other symbols/decals on the product refer to
certification requirements for some markets.
1064 - 001 - 31.01.2019 3
