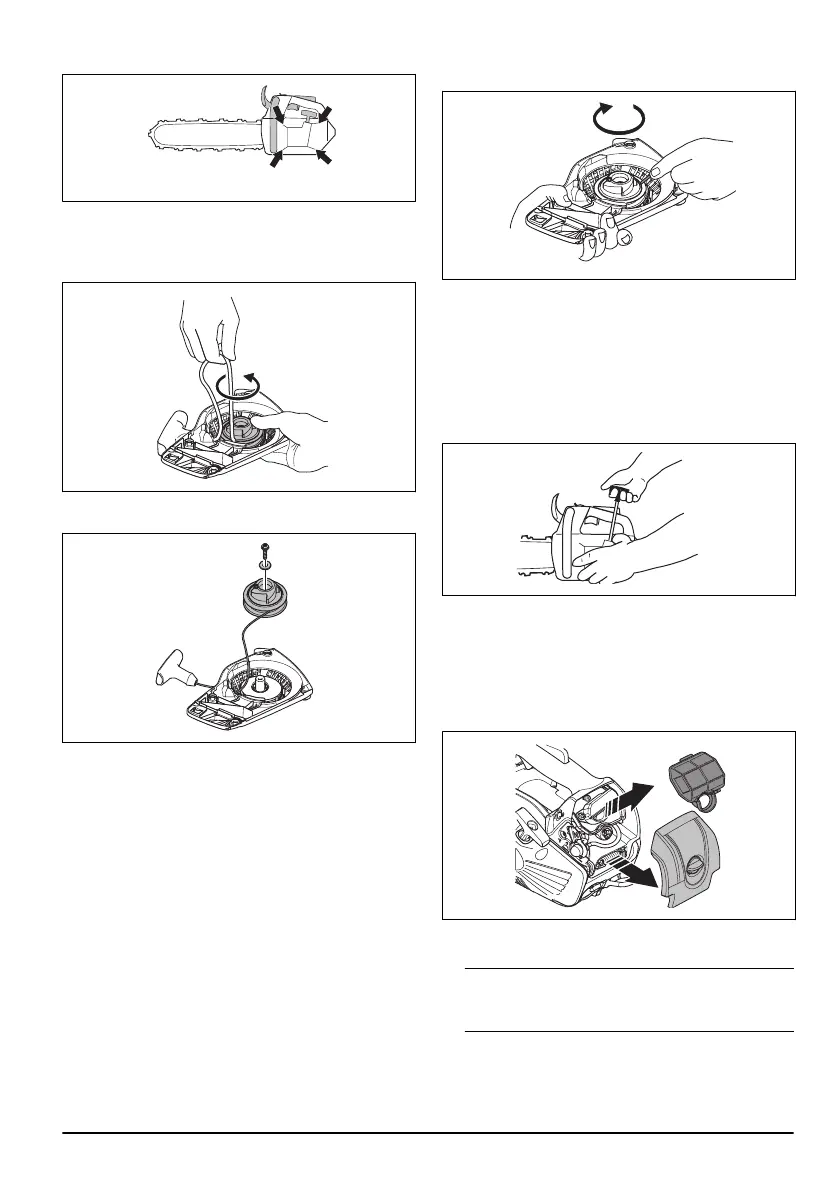

2. Remove the starter housing.
3. Pull out the starter rope approximately 30 cm/12 in
and put it in the notch on the pulley.
4. Let the pulley rotate slowly rearward to release the
recoil spring.
5. Remove the bolt in the center of the pulley and
remove the pulley.
6. Remove the used starter rope from the handle and
the pulley.
7. Attach a new starter rope to the pulley. Wind the
starter rope approximately 3 turns around the pulley.
8. Connect the pulley to the recoil spring. The end of
the recoil spring must engage in the pulley.
9. Attach the screw to the center of the pulley.
10. Pull the starter rope through the hole in the starter
housing and the starter rope handle.
11. Make a tight knot at the end of the starter rope.
To tighten the recoil spring
1. Put the starter rope into the notch in the pulley.
2. Turn the starter pulley approximately 2 turns
clockwise.
3. Make sure that you can turn the pulley ½ turn after
the starter rope is fully extended.
To assemble the starter housing on the
product
1. Pull out the starter rope and put the starter in
position against the crankcase.
2. Slowly release the starter rope until the pulley
engages with the pawls.
3. Tighten the screws that hold the starter.
To clean the air filter
Clean the air filter regularly from dirt and dust. This
prevents carburetor malfunctions, starting problems,
loss of engine power, wear to engine parts and more
fuel consumption than usual.
1. Remove the cylinder cover and the air filter.
2. Use a brush or shake the air filter clean. Use
detergent and water to clean it fully.
Note:
An air filter that is used for a long time can not
be fully cleaned. Replace the air filter regularly and
always replace a defective air filter.
3. Attach the air filter and make sure that the air filter
seals tightly against the filter holder.
