GZ3500T
GB-8

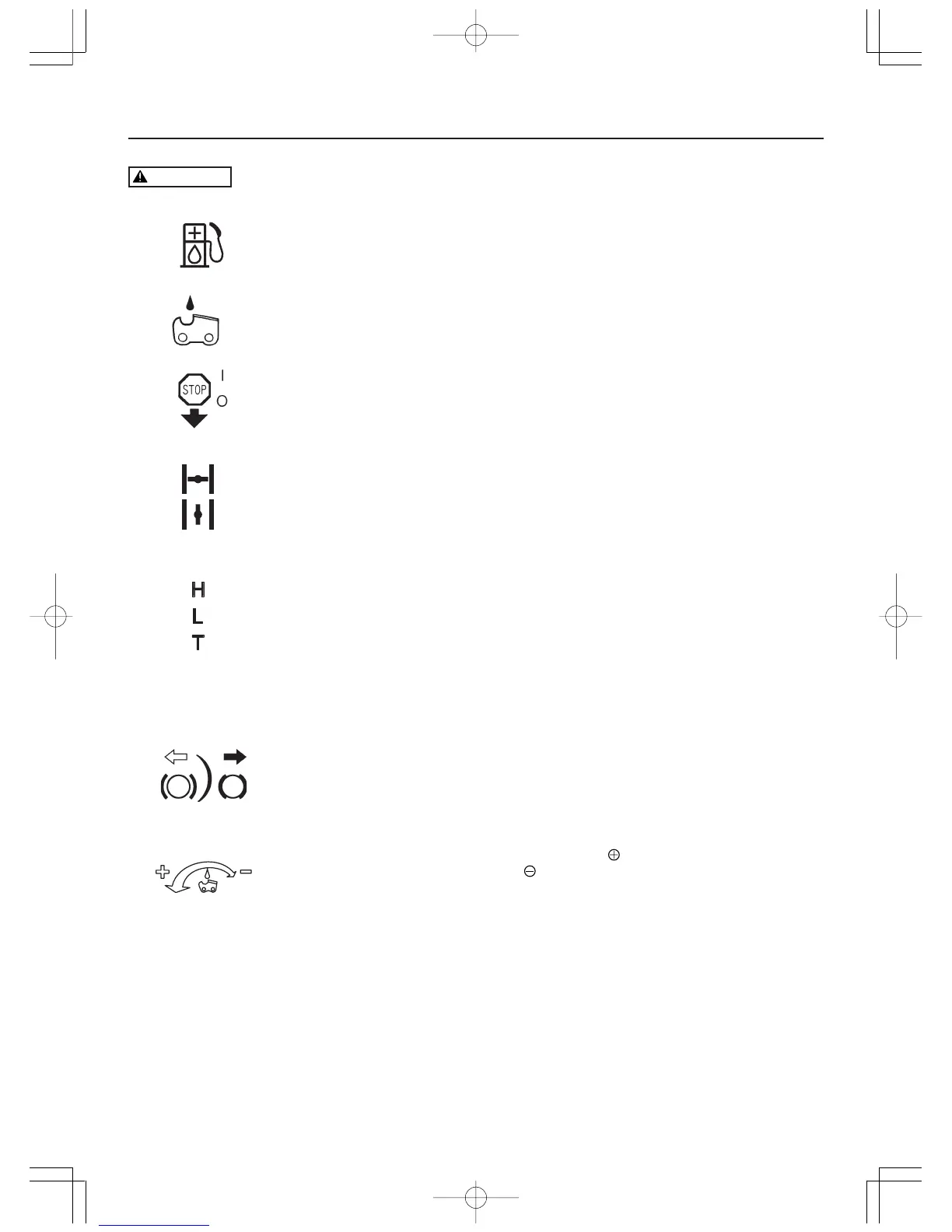

2. Symbols on the Machine
The port to refuel “MIX GASOLINE”
Position: Recoil case (in front of the fuel cap)
The port to top up chain oil
Position: Recoil case (under the oil cap)
Setting the switch to the “O” position, the engine stops immediately.
Position: Right side of the rear handle
Starting the engine. If you turn the choke knob to the point of the arrow,
you can set the starting mode as follows:
Position: Upper-right of the air cleaner cover
The screw under the “H” stamp is The High-speed adjustment screw.
The screw under the “L” stamp is The Slow-speed adjustment screw.
The screw at the left of the “T” stamp is the Idle adjustment screw.
Position: Left side of the rear handle
Shows the directions that the chain brake is released (white arrow) and
activated (black arrow).
Position: Front of the chain cover
If you turn the rod by screwdriver follow the arrow to the "
" position, the
chain oil flow more, and if you turn to the " " position, less. (Regulation
width: 90°)
Position: Bottom of the power unit
For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
WARNING
