Zephyr AK7000BS

8
www.zephyronline.com

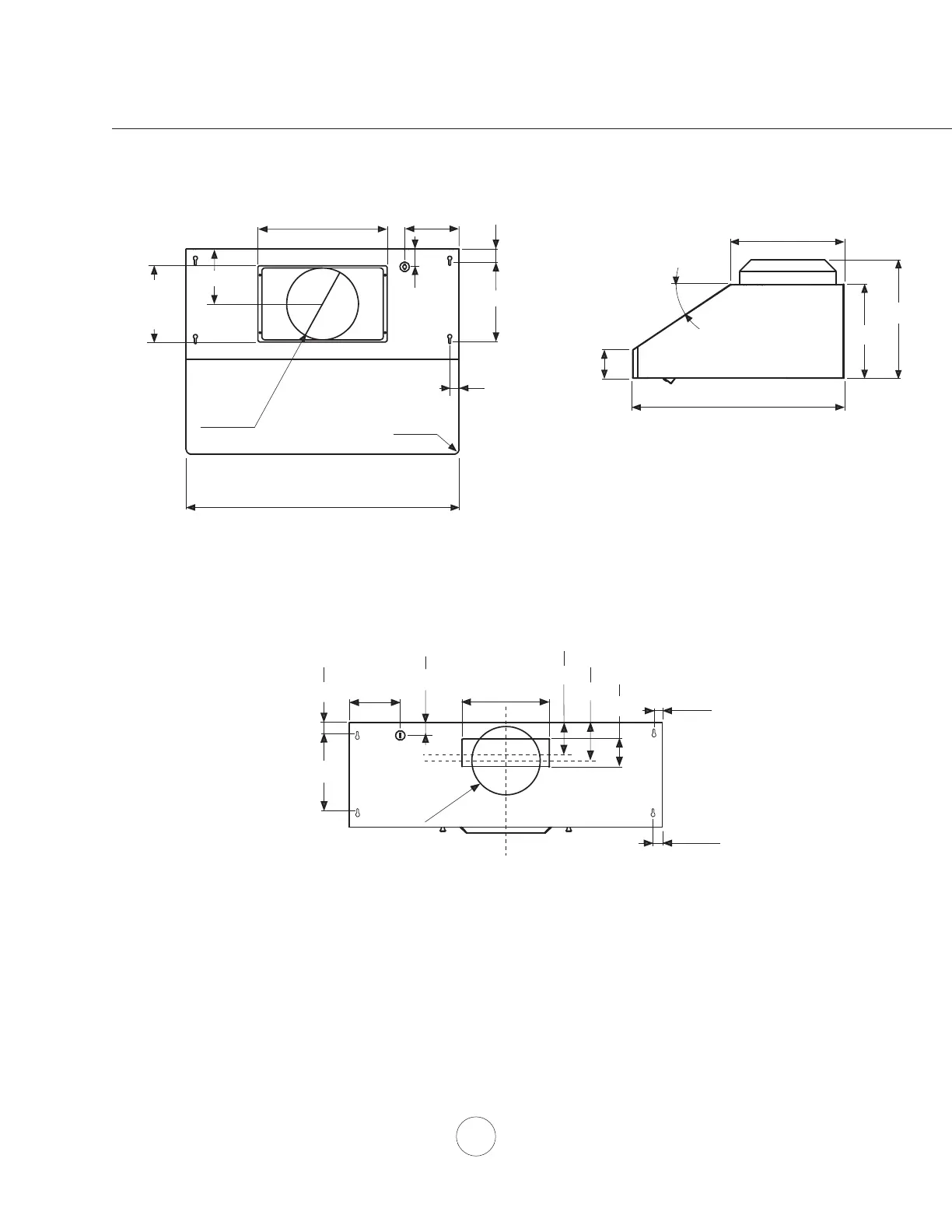

Installation – 6SHFL¿FDWLRQV
top
side
back
8 9/16”
1 5/8”
1”
4 9/16”
6”
*8 1/8”
or
**10 3/8”
*9 1/2”
or
**14 3/16”
2”
*7 7/8”
or
**9 15/16”
* Single Blower Dimension
** Dual Blower Dimension
R 9/16”
29 7/8” (30”), 35 7/8” (36”)
41 7/8” (42”), 47 15/16” (48”)
3”
12”
11”
22 1/2”
37˚
C/L
9 7/8”
11/16”
7 3/8”
3 1/4”
4 1/16”
4 9/16”
1 1/4”
7 7/8”
rect. C/L
round C/L
4 9/16”
2 3/16”
2 3/16”
**15 5/16
”
