INSTALLING THE INTERNAL

BLOWER

NOTE: The following instructions are for

installing the internal blower only.

Install this range hood only with internal blower

model CBI-290A or CBI-600A.

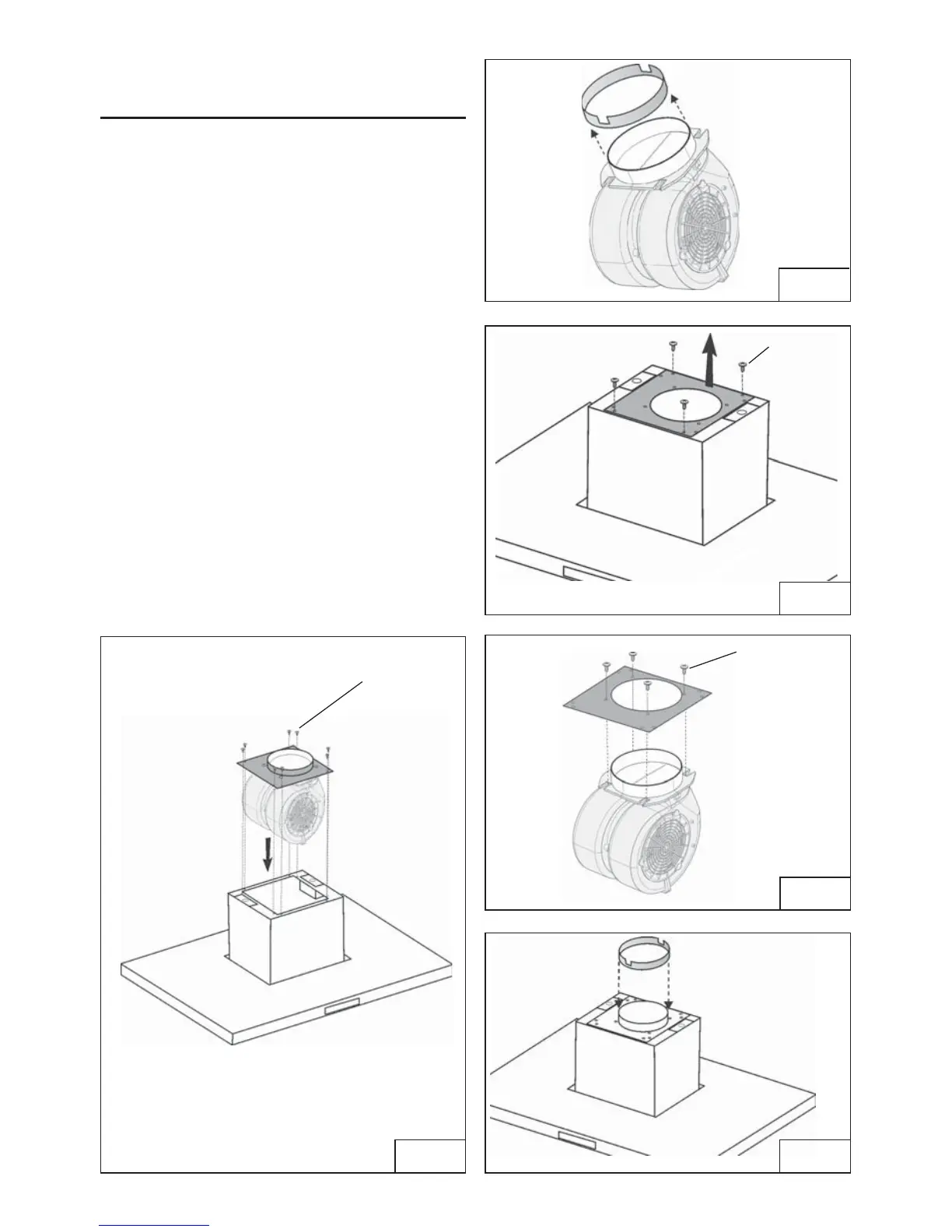

1. Remove the 6” metallic flange provided on

the blower’s air outlet (the flange may

already be pre-installed) (Fig.8).

2. Remove the blower plate unscrewing the

(4) 3.9x9.5 mm screws (Fig.9).

3. Install internal blower into blower plate and

secure using (4) screws (Fig.10).

4. Install assembly blower by means (8) 3.9x6

mm screws (Fig.11).

5. Place the 6” metallic flange provided on the

blower’s air outlet (Fig.12).

FIG. 8

FIG. 9

FIG. 10

FIG. 12

FIG. 11

(4) MOUNTING

SCREWS

(Supplied with the

motor)

MOUNTING

SCREWS

3.9x6mm

MOUNTING

SCREWS

3.9x6mm
