Zephyr ALL-M90BBX User Manual

- 25 -

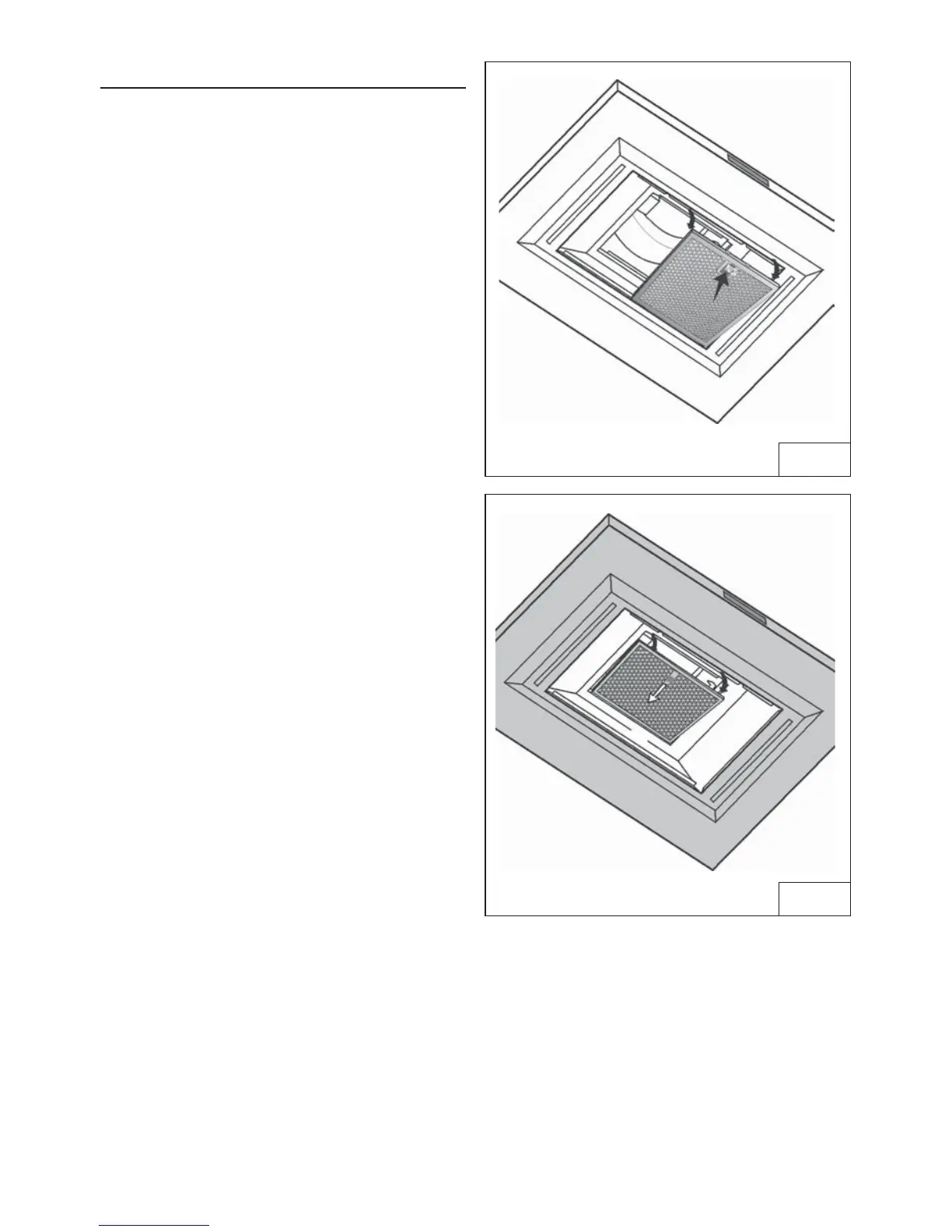

FIG.26
FIG.27
MESH FILTERS
NOTE: prior to use, remove protective film
from the filter frame.
DUCTED AND NON-DUCTED HOODS
1. To remove the MESH filter, pull down
on latch tab to disengage the filter from
the hood. Tilt the filter downward and
remove (Fig.26).
2. To install the MESH filter, align rear filter
tabs with slots in the hood. Pull latch
tab down. Push filter into place and
release tab. Make sure the filter is
securely engaged after installation.
NON-DUCTED HOODS ONLY
1. To remove the CHARCOAL filter, grip
and push filter tab toward rear of hood.
Pull the filter down to disengage the rear
filter tabs (Fig.27).
2. To install the CHARCOAL filter, align
filter in rectangular opening. Push filter
against springs in rear of hood and press
into place. Make sure the filter is
securely engaged after assembly.
3. Install MESH filter after charcoal filter
is installed.
4. The charcoal filter replacement model
is Z0F-01AC.
