Zephyr Breeze I User Manual

25
Breeze I & Breeze II Use, Care, and Installation Guide
ZEPHYRONLINE.COM

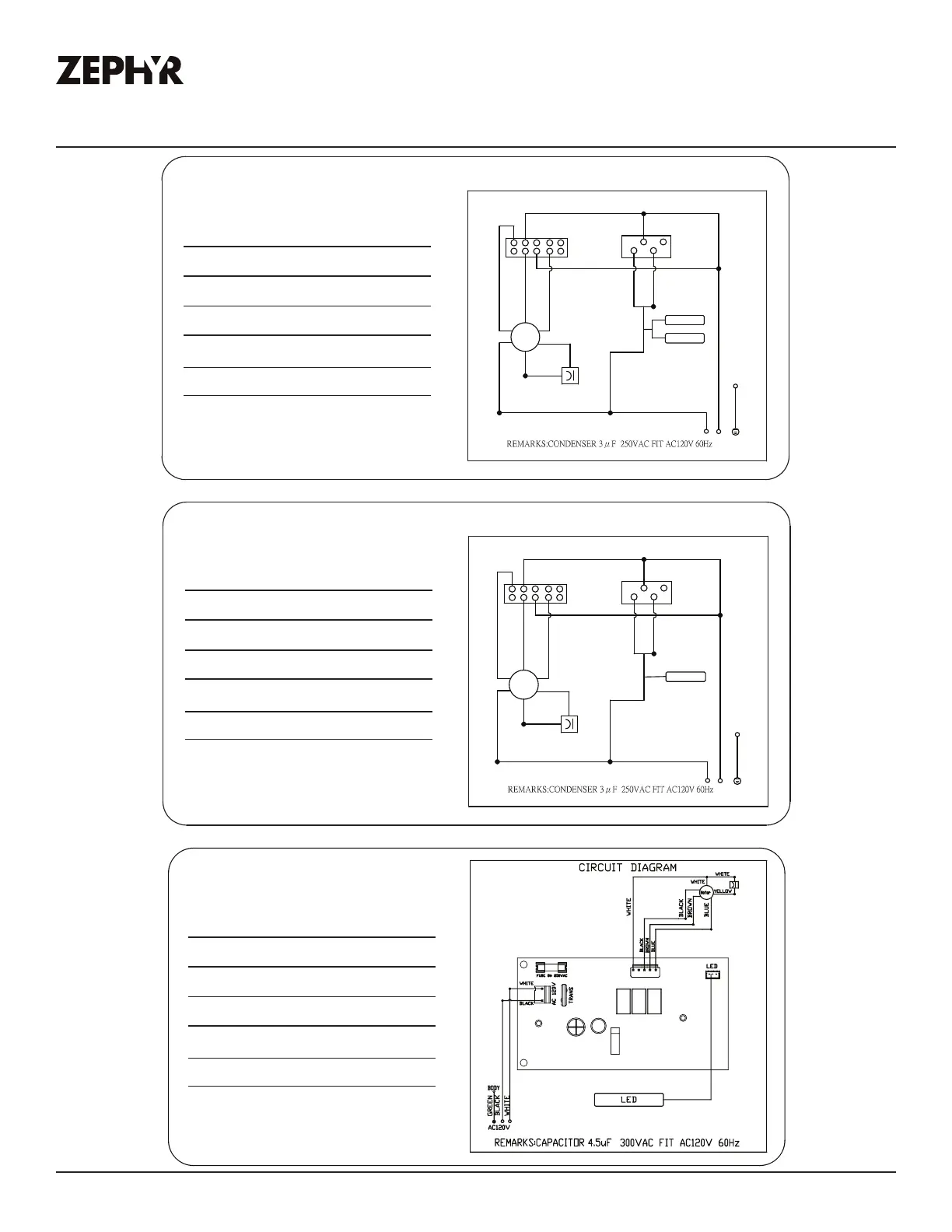

Wiring Diagram
Model:
AK1200Bx, AK1236Bx
Voltage: 120V 60Hz
Power consumption
Total: 70W @0.8A
Lamp: 5W
Fan: 65W
THERMALLY PROTECTED
Model: AK1124Bx
Voltage: 120V 60Hz
Power consumption
Total: 81W@08.A
Lamp: Max. 6W
Fan: 75W
THERMALLY PROTECTED
Model:
AK1100Bx, AK1136Bx
Voltage: 120V 60Hz
Power consumption
Total: 87W@08.A
Lamp: Max. 6Wx2
Fan: 75W
THERMALLY PROTECTED
WHITE
BLUE
YELLOW
WHITE
WHITE
BLACK
MOTOR
BROWN
WHITE
BLACK
BODY
RED
BLACK
GREEN
CIRCUIT DIAGRAM
B/W
B/W
LED
LED
B/W
GRAY
WHITE
BLUE
BLACK
MOTOR
BROWN
WHITE
BLACK
BODY
RED
BLACK
GREEN
CIRCUIT DIAGRAM
B/W
LED
B/W
B/W
YELLOW
WHITE
WHITE
GRAY
