Zephyr Cyclone AK6500BS User Manual

34
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE

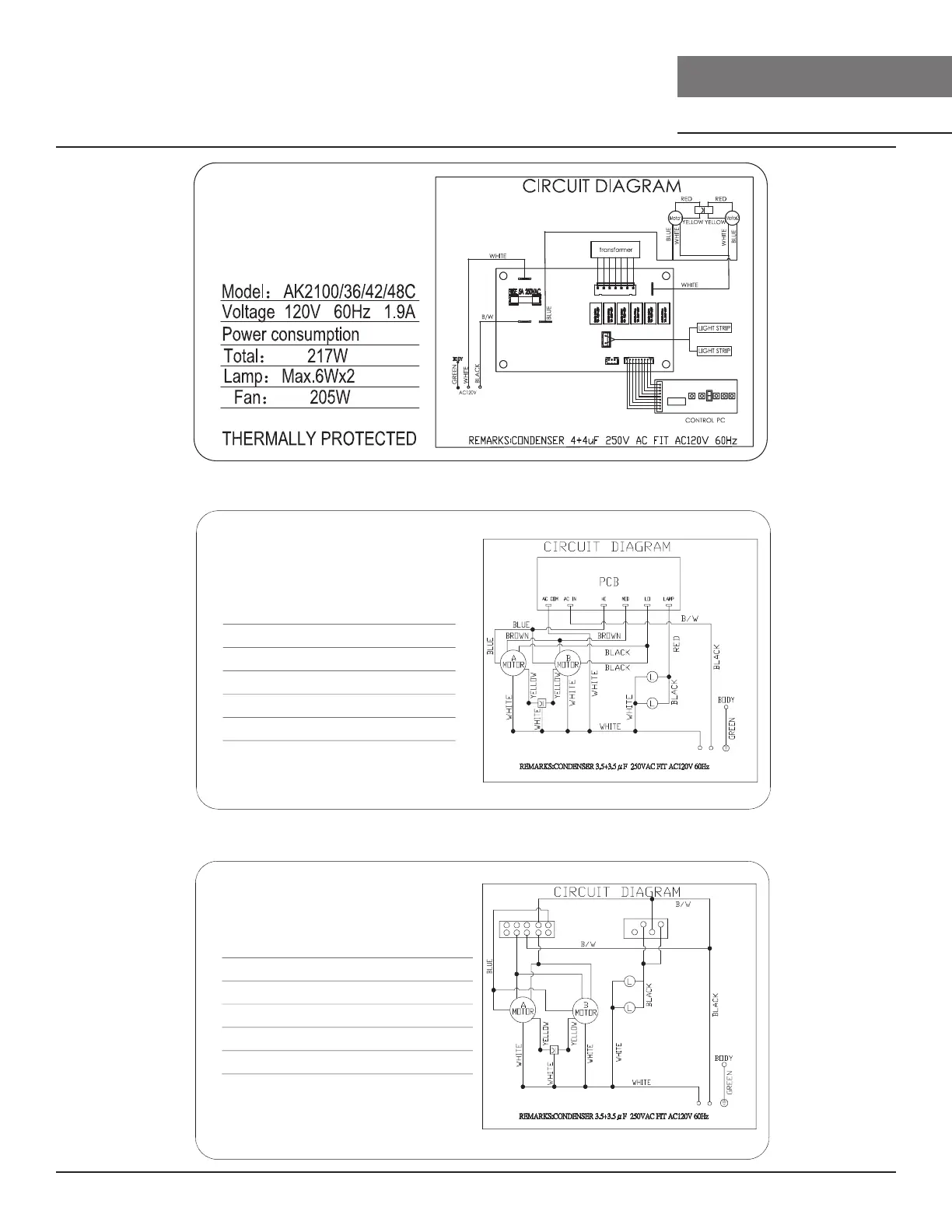

Wiring Diagram
Model: AK2500/36B
Voltage 120V 60HZ 2.4A
Power consumption
Total: 230W
Lamp: Max.35Wx2
Fan: 160W
THERMALLY PROTECTED
Model
Voltage 120V 60HZ 2.4A
Power consumption
Total: 230W
Lamp: Max.35Wx2
Fan: 160W
THERMALLY PROTECTED
AK6500/36/42B
BROWN
BLACK
BLACK
RED
Power consumption shown above for default 850 CFM blower configuration
ACT 390 CFM - Fan Max. 160W @ 2.4A, ACT 290 CFM - Fan Max. 140W @ 2.2A
Power consumption shown above for default 695 CFM blower configuration
ACT 390 CFM - Fan Max. 140W @ 2.2A, ACT 290 CFM - Fan Max. 120W @ 2.1A

Zephyr Cyclone AK6500BS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted
Number of Fan Speeds	3
Interior Light	yes
Voltage	120 volts
Current	2.4 amperes

Weight and Dimensions

Depth	22 1/5 inches
Height	6 2/5 inches
Width	29 4/5 inches
Net Weight	64.7 pounds
