MWD2401AS Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions

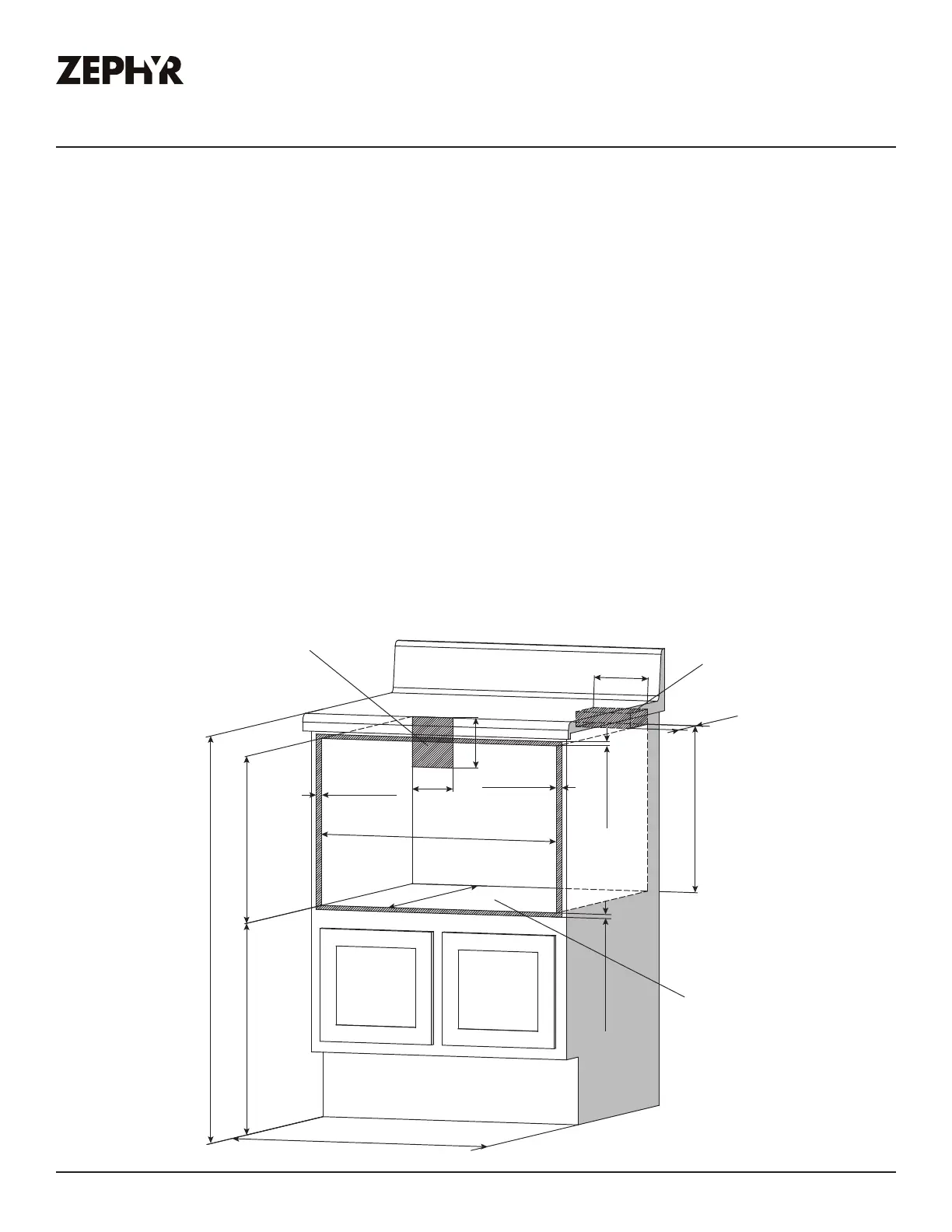

Installation Clearance Requirements
When installing the microwave drawer into a counter, follow the recommended spacing dimensions
shown. The given dimensions provide minimum clearance.
► The microwave drawer can be built into a cabinet, standalone wall, or under a gas or an electric
wall oven where both standard installation and flush mount installation are available. Standard
installation is a standing proud installation.
► Make sure the clearance of the floor between the wall oven and microwave drawer is a minimum of
2”.
► The power supply cord is located on the back of the unit and has a length of 51-1/8” to
accommodate multiple outlet locations, including installation to an adjacent cabinet. The power
supply cord access hole should be a minimum 1-1/2” diameter hole and debarred of sharp edges.
► The contact surface must be solid and level. The floor of the opening should be constructed of
plywood strong enough to support the weight of the oven (about 100lbs).
► This microwave drawer can be fully built-in to cabinetry and does not require any additional
clearances besides what is referenced below.
24” min.
Must support
100lb minimum
23-
1/2
” min.
4”
5”
Suggested electrical
outlet location
Anti-tip
block
6”
7/8” overlap
1-1/4” overlap
7/16” overlap
22-
1/8
”
7/8” overlap
14-13/16”
19”
36”
3-
1/2
”
14-13/16” to bottom
of anti-tip block
