16
Savona, Anzio, Ravenna, Roma Use, Care, and Installation Guide
ZSA, ZAN, ZRV, ZRO
WALL
CORE
Installation Instructions
Mounting the Hood
At least two installers are required due to the weight
and size of the hood.
CAUTION
1. Measure from range top to hood bottom and mark
line A (24” minimum from range top).
2. Plum and mark center line.
3. Mark hood height line B.
ZAN : 18-7/16” from line A
ZSA : 9-1/2” from line A
ZRV : 15-7/8” from line A
ZRO : 11-3/8 from line A
4. Mark mounting spread from C/L.
ZAN : 8-7/8” on line B
ZSA : 9-7/8” on line B
ZRV : 8-15/16” on line B
ZRO : 12-5/8” on line B
5. Fasten (2) M6 x 1-1/2” screws into studs on line B
but do not tighten all the way.
NOTE: Wood blocking may need to be added
behind the drywall if no studs are present. Wall

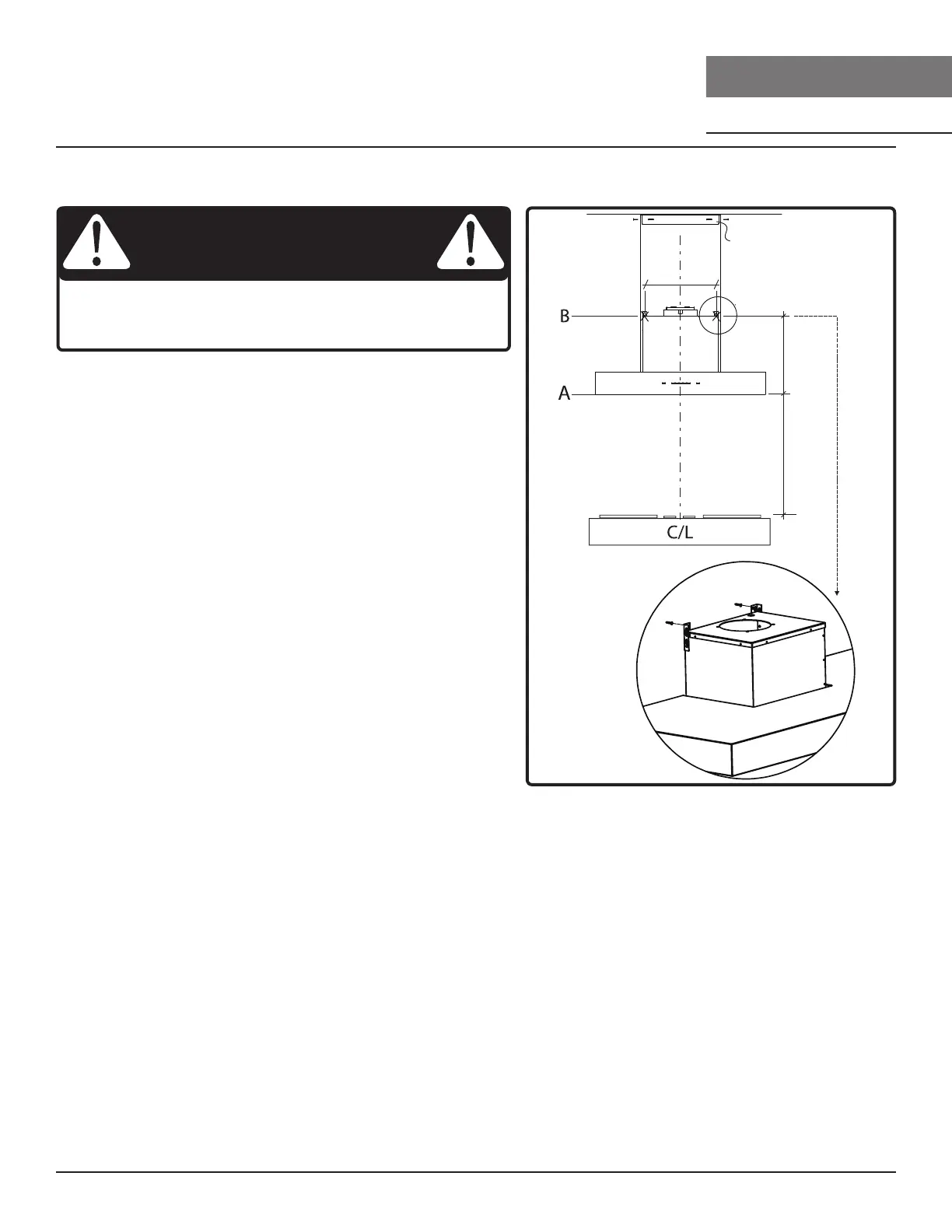

FIG. B
24” min.
Duct Cover Bracket
anchors may also be used but check local codes for compliance. Failure to use suitable wall
anchors and screws to hold the weight of the hood could result in personal injury or damage to
the cooking surface or counter.
6. Remove the aluminum mesh filters.
7. Hang hood onto the mounting screws and hand tighten each screw (FIG. B, A).
8. Center and attach duct cover mounting bracket to wall just below the ceiling or sot using (2) M6
x 1” screws.
9. Install electrical and duct work. Seal duct work with aluminum duct tape.
10. Power up hood and check for leaks around duct tape.
11. Place telescopic duct covers onto hood and extend inner (top) duct cover upwards and secure to
duct cover bracket using (2) M4 x 8 screws. Reinstall mesh filters.
