Savona, Anzio, Ravenna, Roma Use, Care, and Installation Guide
ZSA, ZAN, ZRV, ZRO
WALL
CORE
ACT™ Conversion
Enabling ACT™
To enable ACT™:

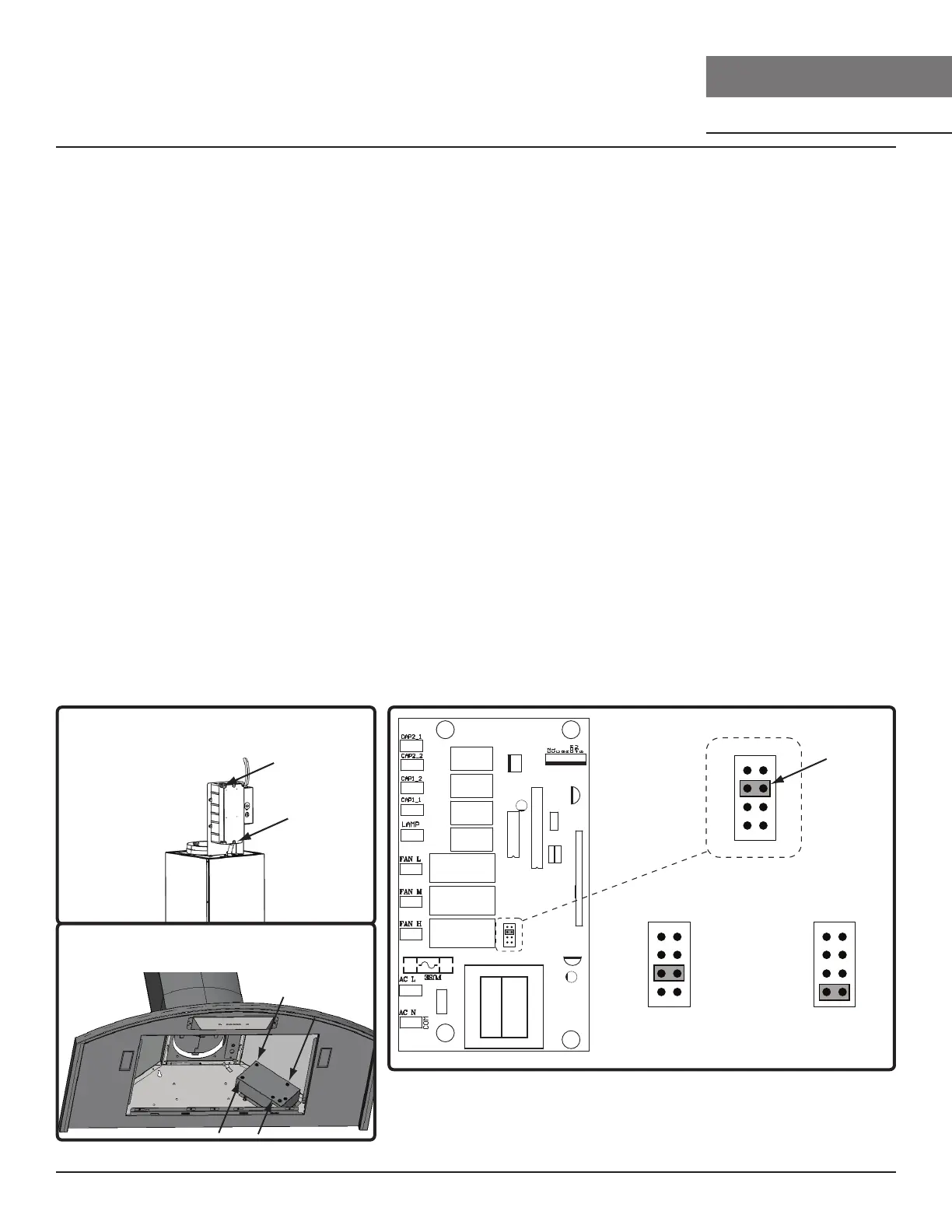

1. Before hood installation, gain access to PC board by following the steps shown on FIG. H.
2. Change plastic jumper positioning as shown in FIG. I to set the desired maximum blower CFM.
3. Re-install PC board and continue with hood installation.
4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the
hood body below the wiring diagram or in another clearly visible location.
To verify if your installer enabled ACT™:
1. With hood o, hold the power button for three seconds. If 5 LEDs illuminate = default max. If 4
LEDs illuminate = max. 390 CFM, and if 3 LEDS illuminate = max. 290 CFM.
2. When ACT™ is enabled, the number of blower speeds will be reduced. 390 CFM = max. 4 speeds
and 290 CFM = max. 3 speeds.
3. There should also be a foil label located inside the hood body near the wiring diagram that
indicates the blower CFM.
Models: ZAN, ZRV, ZRO
- Locate PC board box on top of blower housing.
- Remove 2 to 4 screws attaching PC board cover.
FIG. H
PC Board
1
3
5
7
2
4
6
8
Jum p e r 5 -6 or 7-8
DEFAULT POSITION
Default Max. Blower CFM
Jum p e r 3 -4
Max. Blower CFM
390
Jum p e r 1 -2
Jumper Pins
Plastic
Jumper
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
Max. Blower CFM
290
FIG. I
Models: ZSA
- Remove aluminum mesh filters
Remove 2 to 4 screws attaching PC board cover.
