Installation Instructions

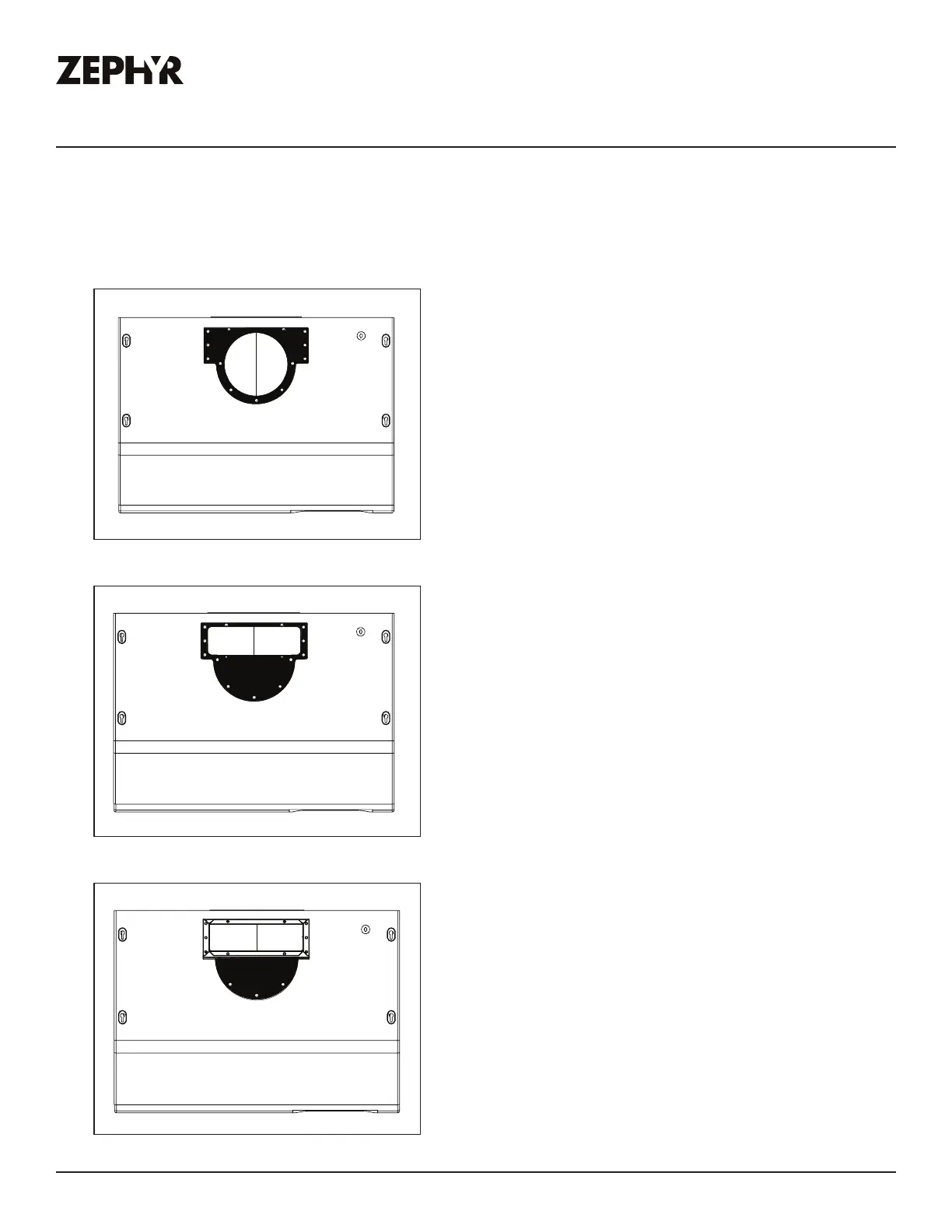

Rectangular Vertical Ducting Preparation
Ź By default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting.
Ź By default the Cyclone is pre-configured for 6” round vertical ducting.
1. Using a Philips-head screwdriver
remove the screws and round vertical
transition adapter from top of hood
body.
2. Replace round vertical transition
adapter with rectangular transition
adapter. Do not secure to hood body
yet.
3. Place 3-1/4"x10" rectangular collar
on top of rectangular transition
adapter. Secure rectangular adapter
and rectangular collar to hood body
using the previously removed screws
from step 1.
