Installation - Internal Blower
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with internal blower models CBI-290A or CBI-600A.
For external and in-line blower preparation please turn to page 13.

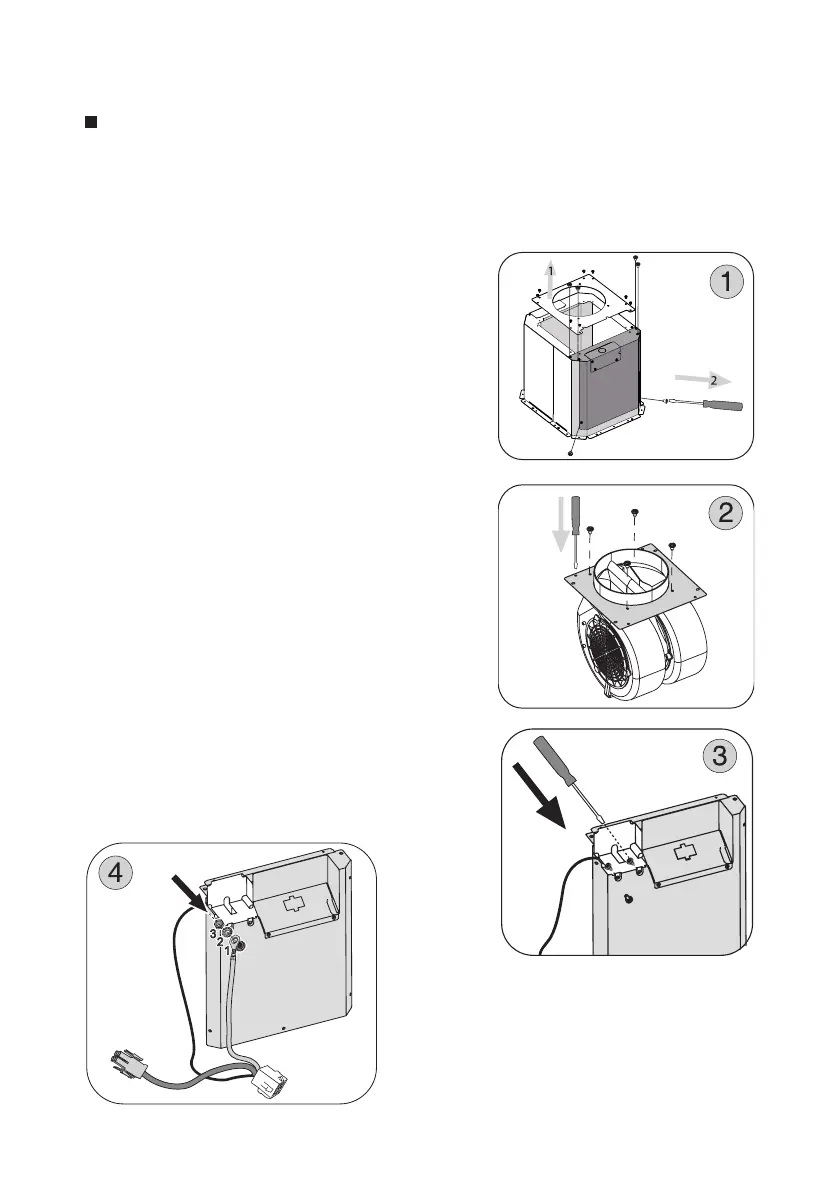

1. Remove the 6" round top plate and then re-
move the remote motor support bracket to
the motor housing. See Fig.1
2. Insert motor into the plate and secure using 4
screws. See Fig.2
3. Secure the capacitor box, connected to the
supplied wire, to the bracket using 2 screws.
See Fig.3
4. Secure the green/yellow ground wire, con-
nected to the wire supplied with the capacitor
cable, using the screw on the bracket. Fig. 4
5. Connect the plate and the motor, on the
remote motor support bracket, securing it
using 2 screws. Fig. 5
- 11 -
