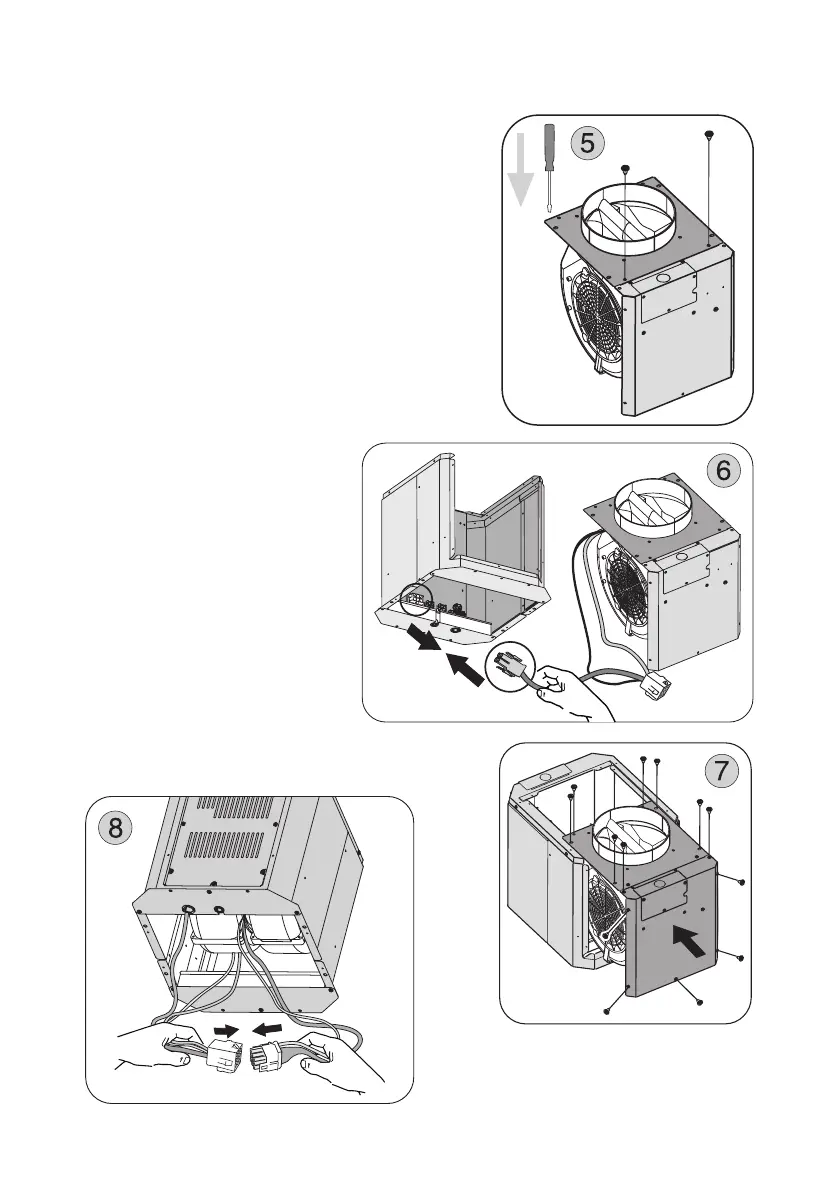

6. Attach the 6 pin male molex connector from
blower wire to the 6 pin female molex con-
nector located inside the blower housing.
See Fig.6
7. Install the motor and bracket, inside the motor
housing, completing the installation using the
other screws (6) that have been supplied. Fig. 7
8. Connect 9 pin male molex connector from
blower wire to 9 pin female molex connector
on the capacitor wire. See Fig.8
WARNING! Place electrical wi-
ring inside the blower housing.
The hood is now ready to be
installed on the wall.
