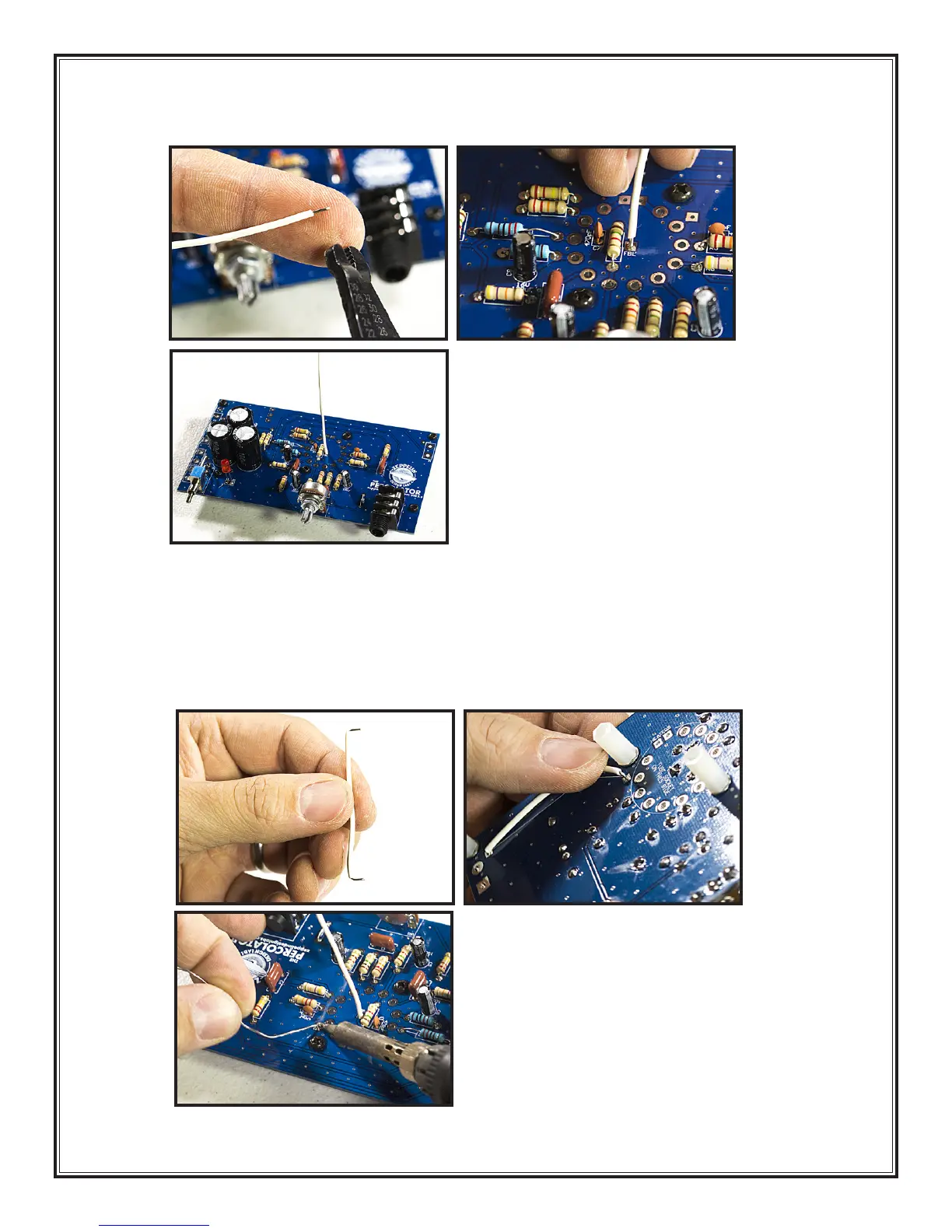

12. 6cm Hookup wire (Part # CB10.4): Strip about 1/8” (3-4mm) of insulation from each end of the
6cm hookup wire. With your pliers bend both ends at a right angle.
37
This wire goes on the solder
side of the board, so flip the board over and install the wire where it goes (note the picture
38
).
Solder it on the component side of the board.
39
Now bend the wire along the surface of the board to make it follow the line printed on the board.
39
37 38
