Zeppelin PERCOLATOR - Page 8

8
In the Components bag:
Part # Description Notes Qty
CB10.1 10.5cm Hookup Wire 20/1 Feedback loop
1
CB10.2 10.5cm twisted pair Hookup Wire 20/1 Heater voltage
1
CB10.3 4cm Hookup Wire 20/1 Ground
2
CB10.4 6cm Hookup Wire 20/1
Output jumper
1
C9, C10, C11 Electrolytic Capacitor 100uF/250V
3
C2, C5, C8, C12 Electrolytic Capacitor 100uF/16V
4
C1, C3, C6 Film Capacitor 0.022uF/250V
3
C4, C7 Ceramic Disc Capacitor 470pF/50V
2
BR1, BR2 Bridge Rectifier 2A/1000V
2
F1 Fuse 1A 250V
1
J1 ¼” Stereo Jack (w/ plastic nut) Input (Plastic barrel)
1
J2 ¼” Mono Jack (w/ metal nut and washer) Output (Metal barrel)
1
KN05 Knob
1
D1 Red LED 5mm
1
VR1 Potentiometer 100KA
1
R1, R6, R11 Resistor 22K Red, Red, Orange, Gold
3
R5, R9, R10 Resistor 220K Red, Red, Yellow, Gold
3
R3, R8 Resistor 47K Yellow, Violet, Orange, Gold
2
R4 Resistor 820R
Gray, Red, Brown, Gold
1
R7, R14, R17 Resistor 1.5K (or 1K5) Brown, Green, Red, Gold
3
R16 Resistor 4.7K (or 4K7) Yellow, Violet, Red, Gold
1
R2 Resistor 1M Brown, Black, Green, Gold
1
R15, R12 Metal Film Resistor 120R 1% Brown, Red, Black, Black, Brown
2
R13 Metal Film Resistor 2.2K (or 2K2) 1%
Red, Red, Black, Brown, Brown
1
SK05 Panel Mount LED Bezel
1
SK10 12 Pin Tube Socket
1
S1 SPDT Toggle Switch PCB Mount
1

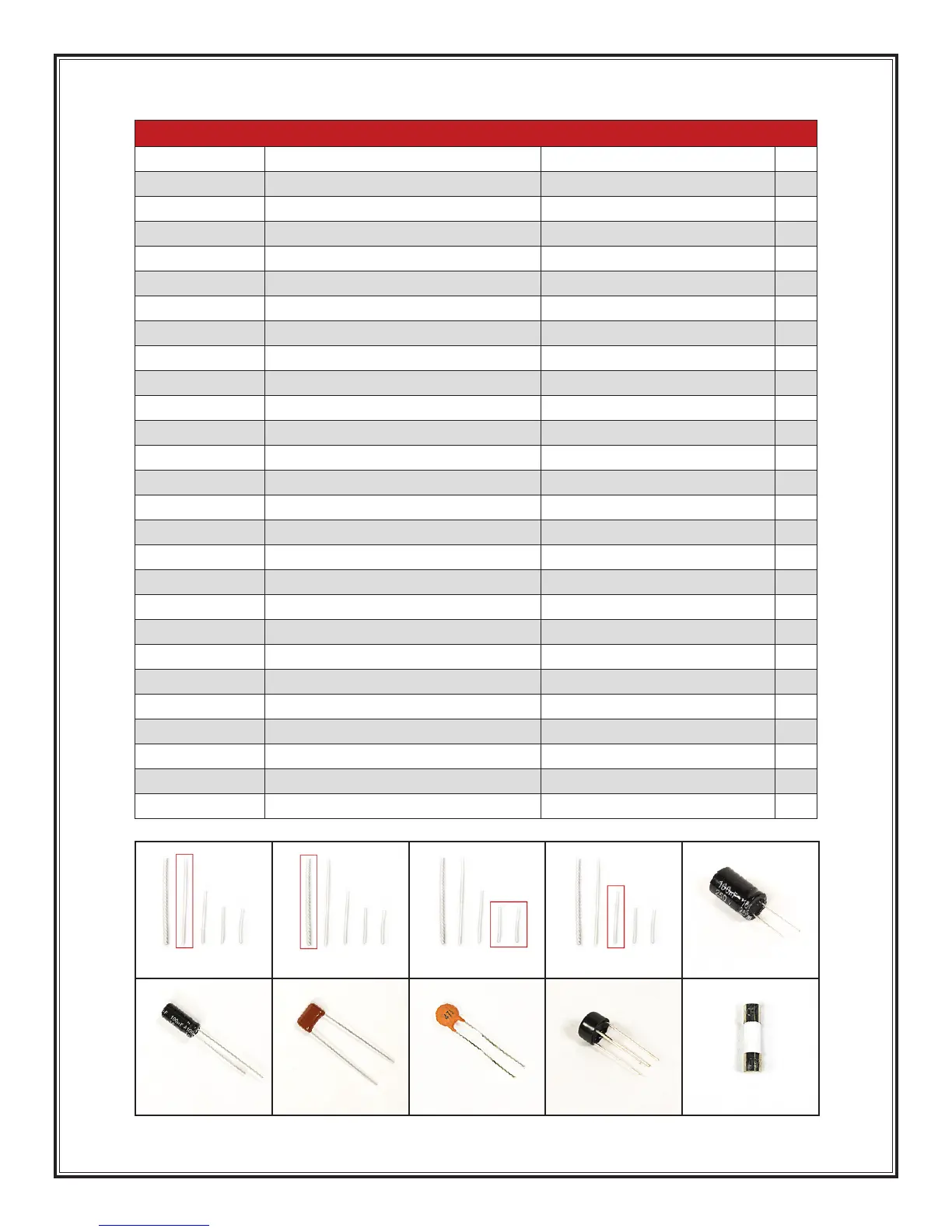

CB10.1 CB10.2 CB10.3 CB10.4 C9, C10, C11
C2, C5, C8, C12 C1, C3, C6 C4, C7 BR1, BR2 F1
