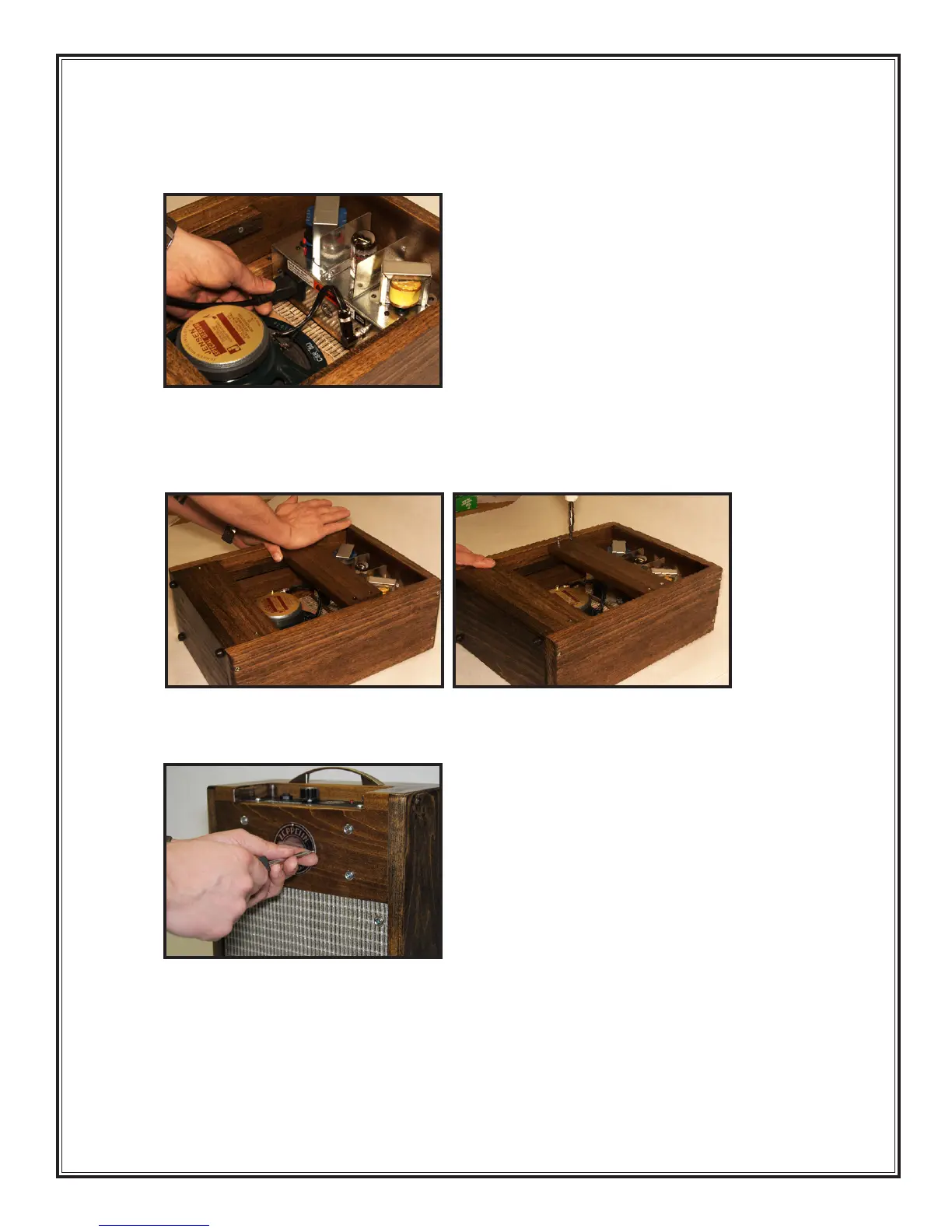

8. Flip the cabinet over face-down. Plug the speaker cable into the amplifier output jack. Plug the
IEC cable (the power cord, Part #CB03) into the amplifier.
298
298
9. Place the Upper Port in place, careful to put it in the same orientation as when you drilled the
holes; look for your mark under that dark finish! Tap it tightly into place against the cleats.
299
Run
the last four wood screws through the Port and tight into the Cleats.
300
299 300
10. Use the 4 #2x3/8” (part #SC62) to screw the badge onto the cabinet front. Do not over tighten
these screws!
301
301
