General Operation
4.20
Compression Damping

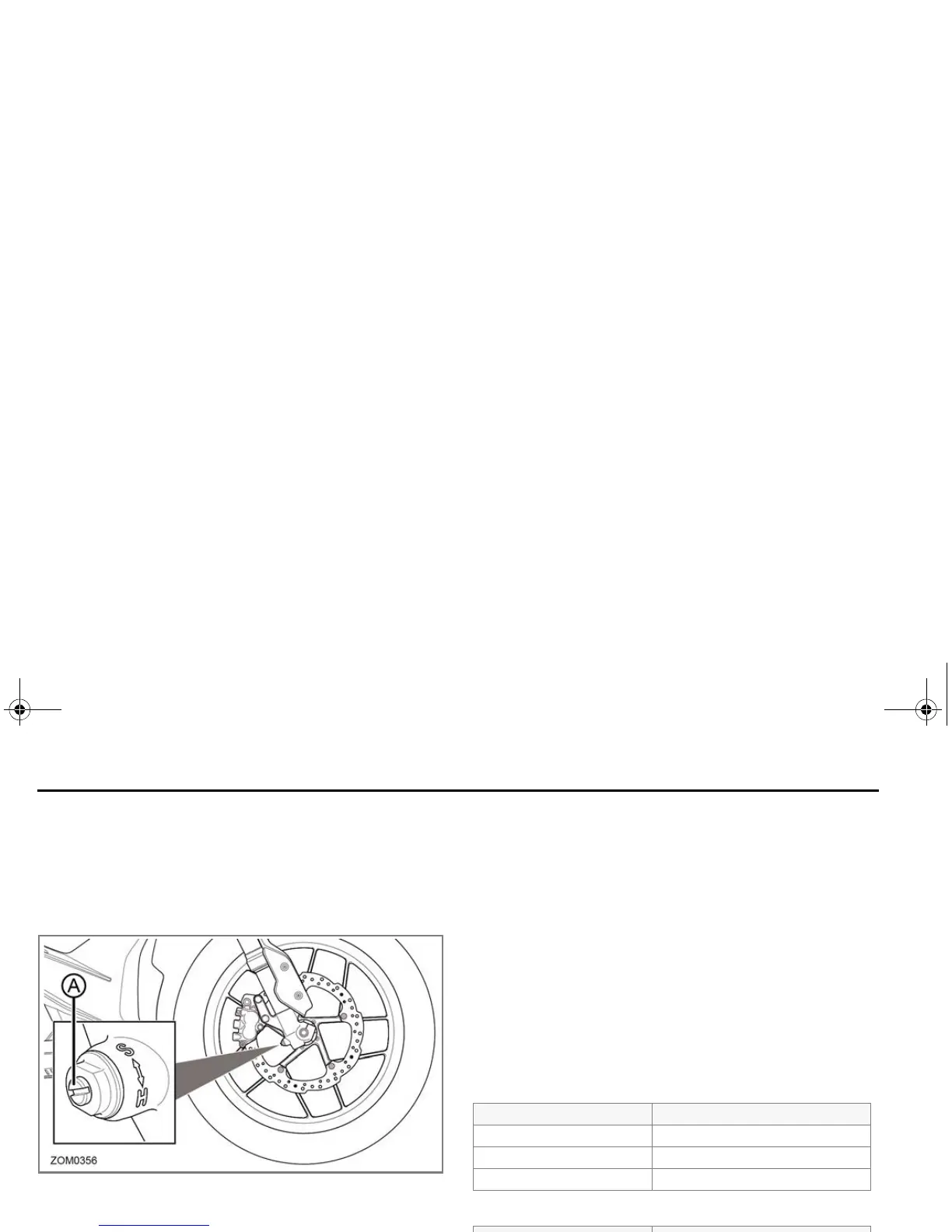

The compression damping is adjusted by turning a screw
on the bottom of each fork leg. Next to the screw are the
letters “H” meaning Hard (slower compression) and “S”
meaning Soft (faster compression). The adjuster has 12
stages of adjustment.
• T
urn the adjuster screw (A) clockwise for slower
compression.
• T
o speed up compression, turn the adjuster screw
counter-clockwise.
Start with a middle setting and fine tune the compression
fro
m there. Proper compression allows the tire to track the
ground over consecutive bumps. Compression that is set
too slow will pack-up (feel harsh over consecutive bumps)
while compression that is set too fast will cause the fork to
bottom out harshly. If the fork is bottoming out, turn the
adjuster one click at a time until the bottom-out stops.
Adjust each fork leg evenly. Replace the rubber dust cover
after the adjustment.
Note: Adjusters should never be forced completely “Soft”
o
r “Hard”; always leave one click of adjustment in either
direction.
Factory Supplied Front Suspension Settings
The following information will allow you to adjust the front
su
spension back to the factory settings the motorcycle was
originally supplied with.
S & SR Models
DS Models
ADJUSTMENT SETTING
Front Fork Compression 6 clicks out from fully closed
Front Fork Rebound 9 clicks out from fully closed
Front Fork Preload 3 turns out from minimum
ADJUSTMENT SETTING
Front Fork Compression 5 clicks out from fully closed
Front Fork Rebound 9 clicks out from fully closed
Front Fork Preload 3 turns out from minimum
