General Maintenance
5.23
12 Volt Fuse Center

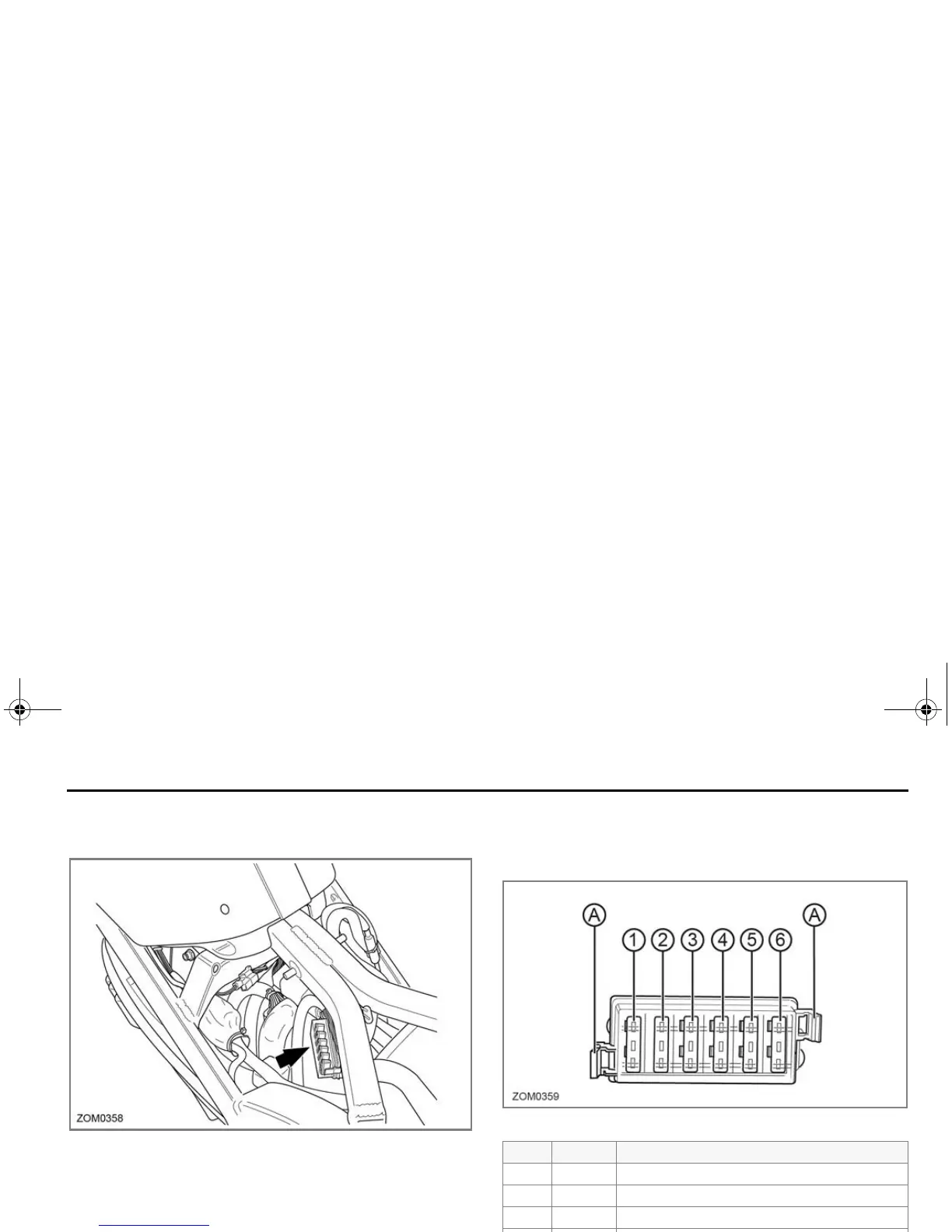

The 12 volt fuse center is located underneath the seat.
The fuse center (see arrow) has a protective cover that
must first be removed to gain access to the fuses. To
remove the cover, squeeze the tabs together and pull off
the cover.
To access the 12 volt fu
se center:
1. Remove two bolts securing the
seat to the motorcycle
frame. Refer to Component Fasteners, page 5.5.
2. Pull the seat rearward to gain access to the fuse center.
3. Squeeze the tabs (A) on the fuse center to remove the
cover.
4. Replace the fuse(s).
The 12-volt fuse values are listed below:
FUSE RATING CIRCUITS CONTROLLED
1 5A ABS-4 Key
2 10A ABS-9 Valve
3 10A Headlight
4 10A Accessory
5 10A Flash Lights, Turn Signals, Horn, Brake/Tail Light
6 5A Dash, Running Lights
