General Maintenance
5.25

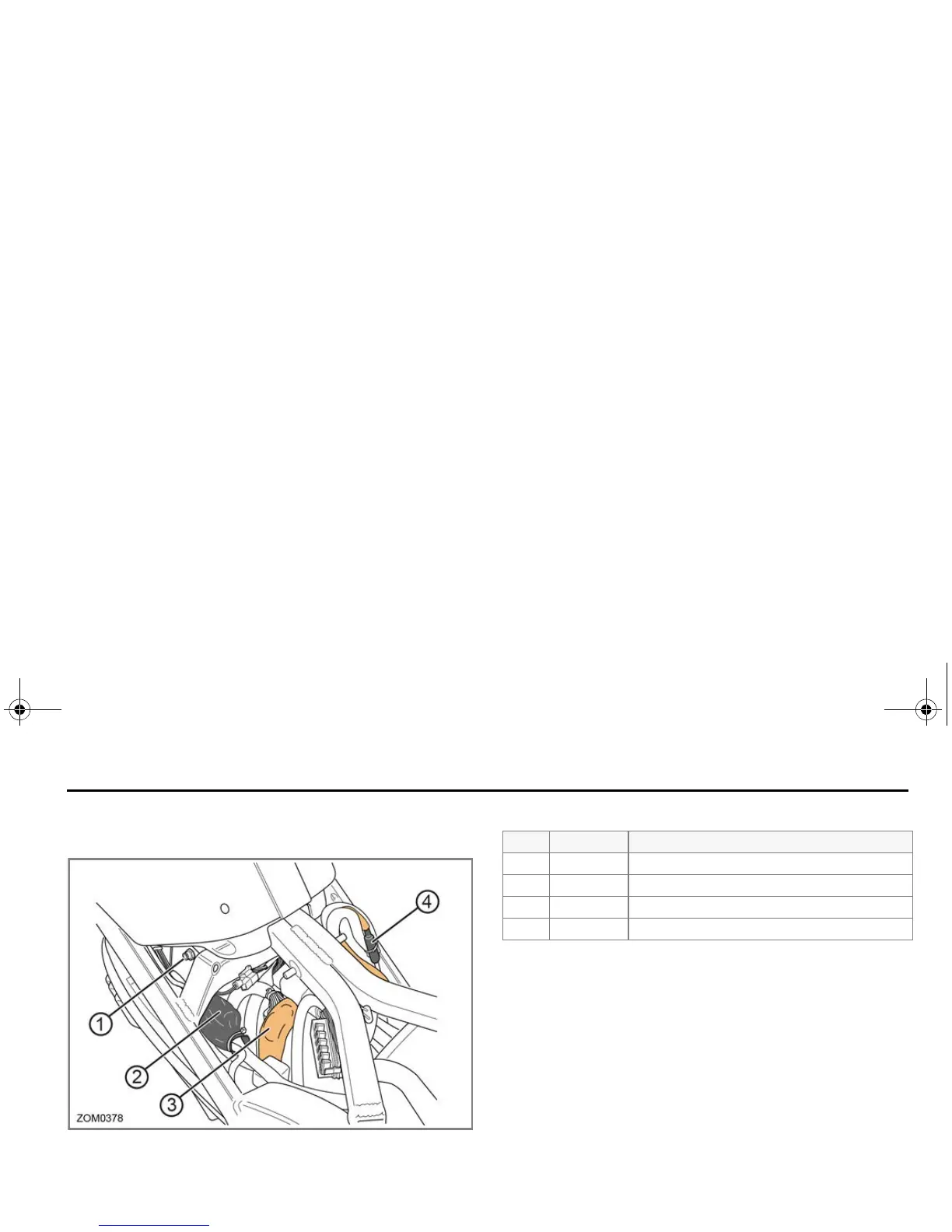

High Voltage Fuse Center
The high voltage fuses are located under the seat.
To access the high voltage fuses:
1. Remove the two bolts securing the seat to the
motorcy
cle frame.
2. Pull the seat rearward to gain access to the fuses.
3. Pull back sheathing to access
fuse holders (if
necessary).
4. Unscrew the fuse’s cover (1, 2, and 3).
5. Replace the fuse.
The high voltage fuse values are listed below:
Note: If the charge fuse (4) needs replacement, contact
your Zero
Motorcycles dealer.
FUSE RATING CIRCUITS CONTROLLED
1 SPT3.15A Low Power B+
2 ABC4A Main Bike Board/Controller
3 ABC4A DC/DC Converter
4 100A Charge Fuse (inline)
