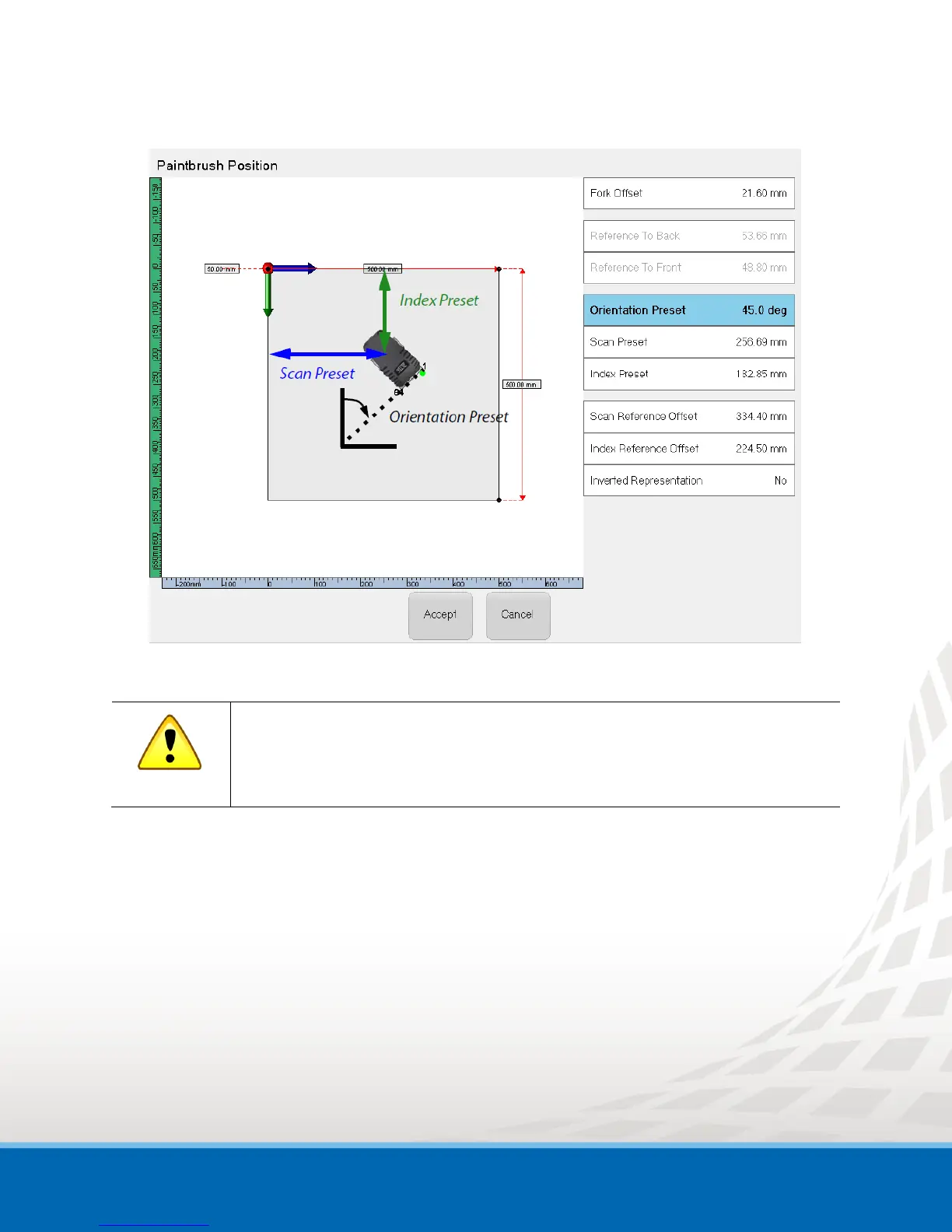

Figure 1-3 PaintBrush Position - Parameters Definition
It is important that your defined positioning is exactly where you will start your
inspection for your data to be properly mapped on your specimen. Scan Reference
Offset and Index Reference Offset are automatically defined from the values above.
These values are defined per the probe/wedge assembly reference point (green dot
on the front of the scanner).
e. Click Accept once the start location and orientation are correctly defined.
5. Complete the definition of your inspection configuration.
For more information see your PaintBrush scanner user manual.
