FRONT DRIVING AXLE TREAD SETTING
A 124 A 125

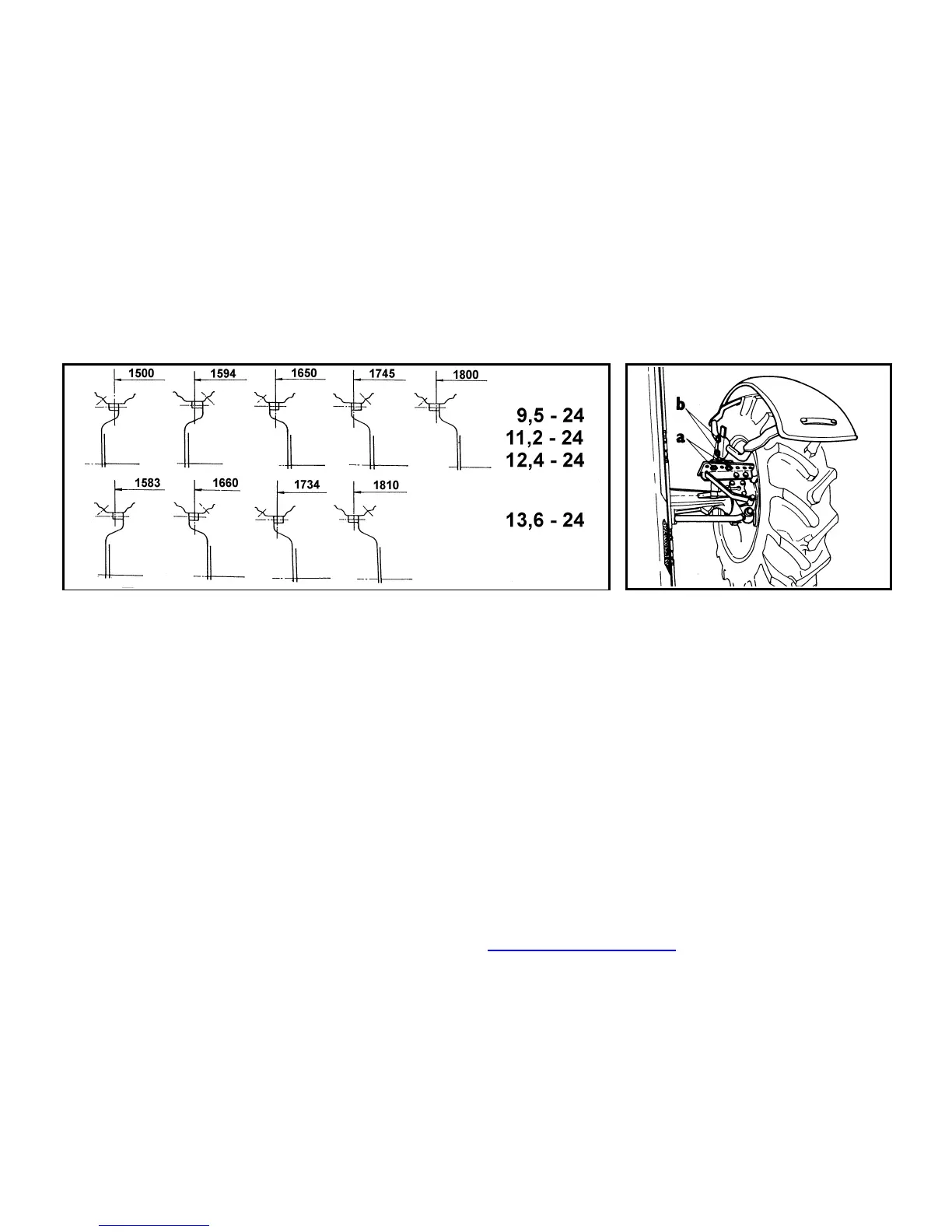

FRONT DRIVING AXLE TREAD
SETTING
The following treads can be set for front
driving axle at used tires 9,5-24, 11,2-24
and 12,4-24:
1500, 1594, 1650, 1745 and 1800 mm.
The following treads can be set for front
driving axle at used tire 13,6-24:
1583, 1660, 1734 and 1810 mm
Tighten front wheel nuts by torque 270 -
300 Nm.
FRONT DRIVING AXLE FENDERS
Front fenders are located on adjustable
holders that can be side ( moving of
screws “a“ into another openings) and/or
height (moving of screws “b“ into another
openings) adjustable according to the
desired wheel treads and used wheel
tire size.
