154
WHEEL TRACK CHANGE
F_02_189
TOE-IN OF THE WHEELS OF THE
FRONT DRIVING AXLE
Proper toe-in of the front wheels of
tractors with the front driving axle is
0 to 2 mm
and is measured on the front wheel hub
flanges (if the front wheels are installed,
you can measure toe-in on the wheel
rims).

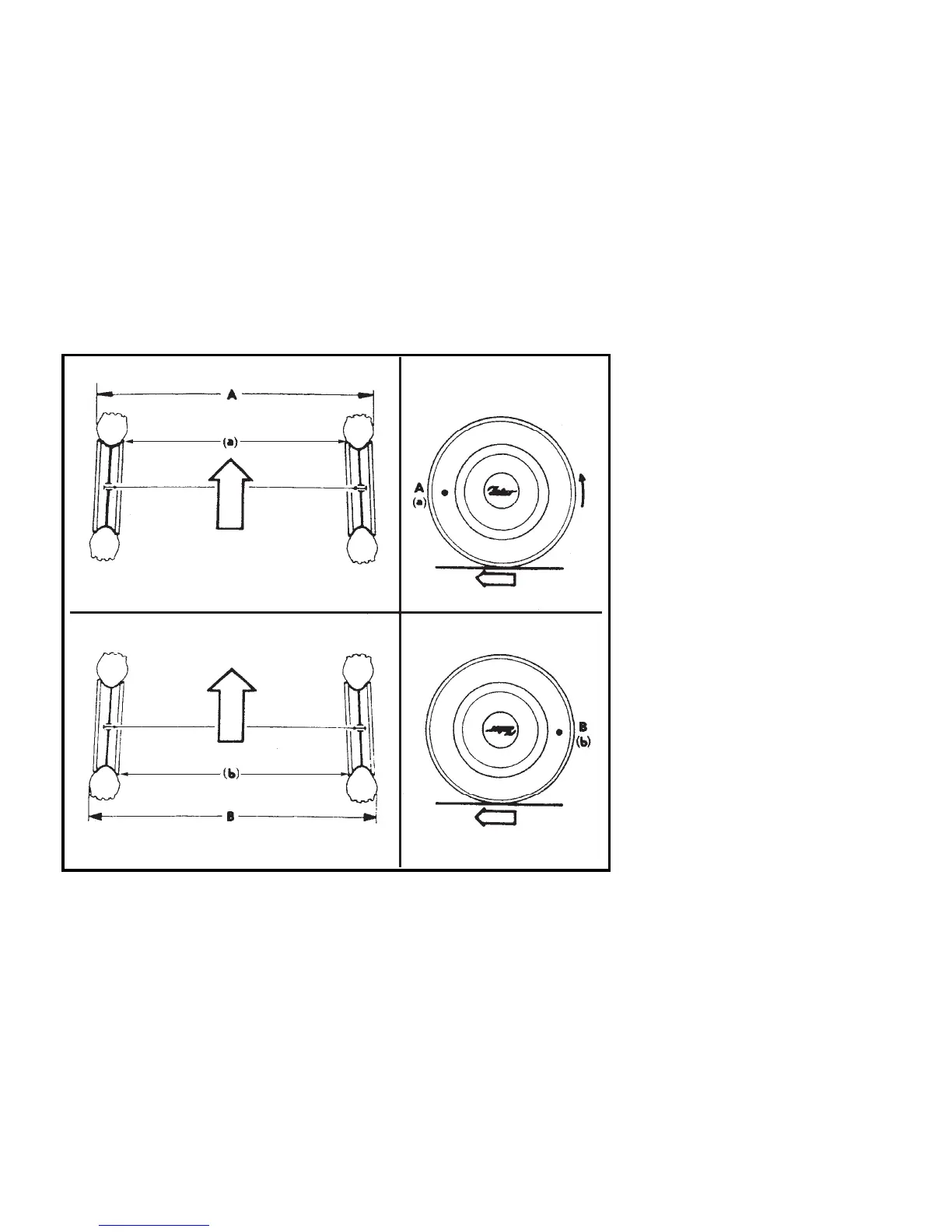

Toe-in “S” is determined by the
difference of the measured values:
S = b - a.
