22
ACQUAINTANCE WITH TRACTOR
FH12N020.tif

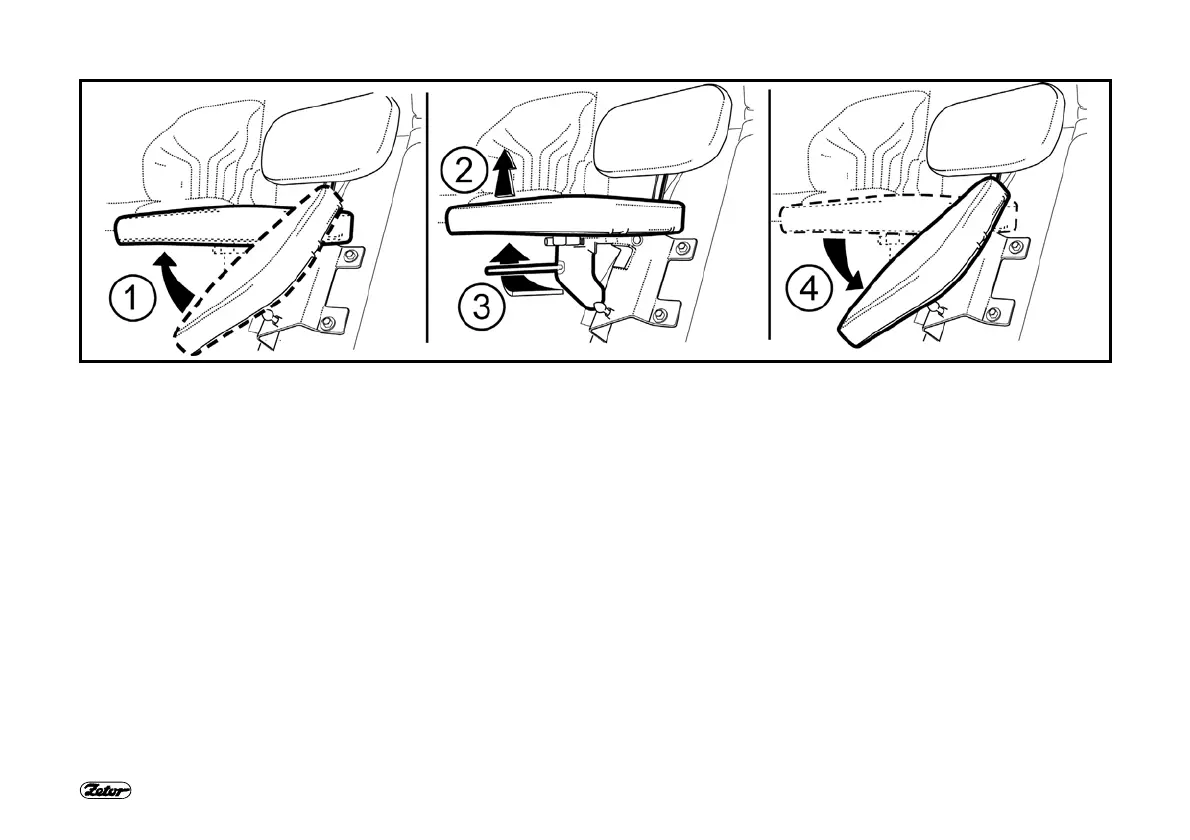

PASSENGER´S SEAT
Passenger´s seat is tiltable and placed on the left mudguard of the cabin.
SEAT TILTING OUT
Passenger´s seat to be tilted out in the direction of an arrow (1) upward. Locking of the seat is done automatically
SEAT TILTING
Lift the passenger´s seat in the direction of an arrow (2), pull the lever (3) to the direction of the driver´s seat, tilt the seat in the di-
rection of an arrow (4).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zetor Proxima 90 and is the answer not in the manual?

Zetor Proxima 90 Specifications

General IconGeneral
Engine Power87 hp
Fuel Tank Capacity90 l
Hydraulic SystemOpen center
Engine Cylinders4
Fuel TypeDiesel
Displacement4.156 L
Hydraulic pump flow50 L/min
PTO Speed540/1000 rpm
Transmission12F/12R
Maximum Lift Capacity4, 200 kg
EngineZetor
Max. lifting force4, 200 kg
