40
ACQUAINTANCE WITH TRACTOR

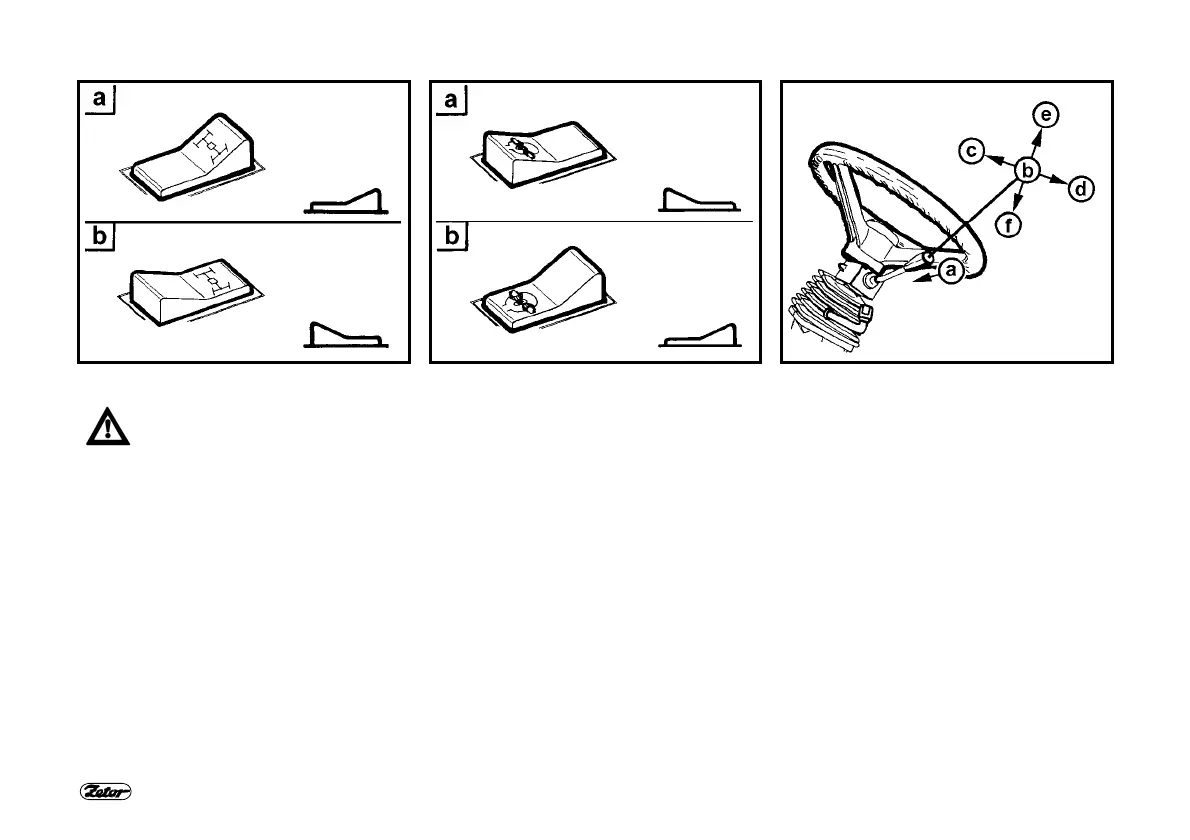

C156 C157 C158
FRONT WHEEL DRIVE SWITCH (f)
Use the front driving axle for in-
creasing the pulling force of the
tractor when rear wheels slip.
a - Front driving axle disengaged
b - Front driving axle engaged
Front driving axle is engaged at stopped
tractor (braked tractor; stopped engine,
switch key is switched-of).
In the basic position, the front driving
axle is engaged (indicator lamp is “ON”)
and disengaging of the axle is made with
the switch (indicator lamp is “OFF”).
PUSH BUTTON OF REAR, FRONT
DIFFERENTIAL LOCKS (j)
a - Differential lock disengaged
b - Differential lock engaged
The differential lock is engaged by press-
ing the differential lock push button that
returns into the previous position after
loosing. Illuminating of the symbol on the
switch indicates that the differential lock
is engaged.
The differential lock is automatically dis-
engaged after pressing the brake pedals.
At tractors equipped with front driving
axle equipped with engageable differen-
tial lock, this is engaged simultaneously
with the rear differential lock engaging.
TURN SIGNAL, HEADLIGHT AND
HORN TOGGLE SWITCH (k)
a - Acoustic horn – press the toggle
switch in axis direction
b - Low beam light
c - Turn signal - right
d - Turn signal - left
e - Light horn
f - High beam light
