Zetor Proxima HS 100 User Manual

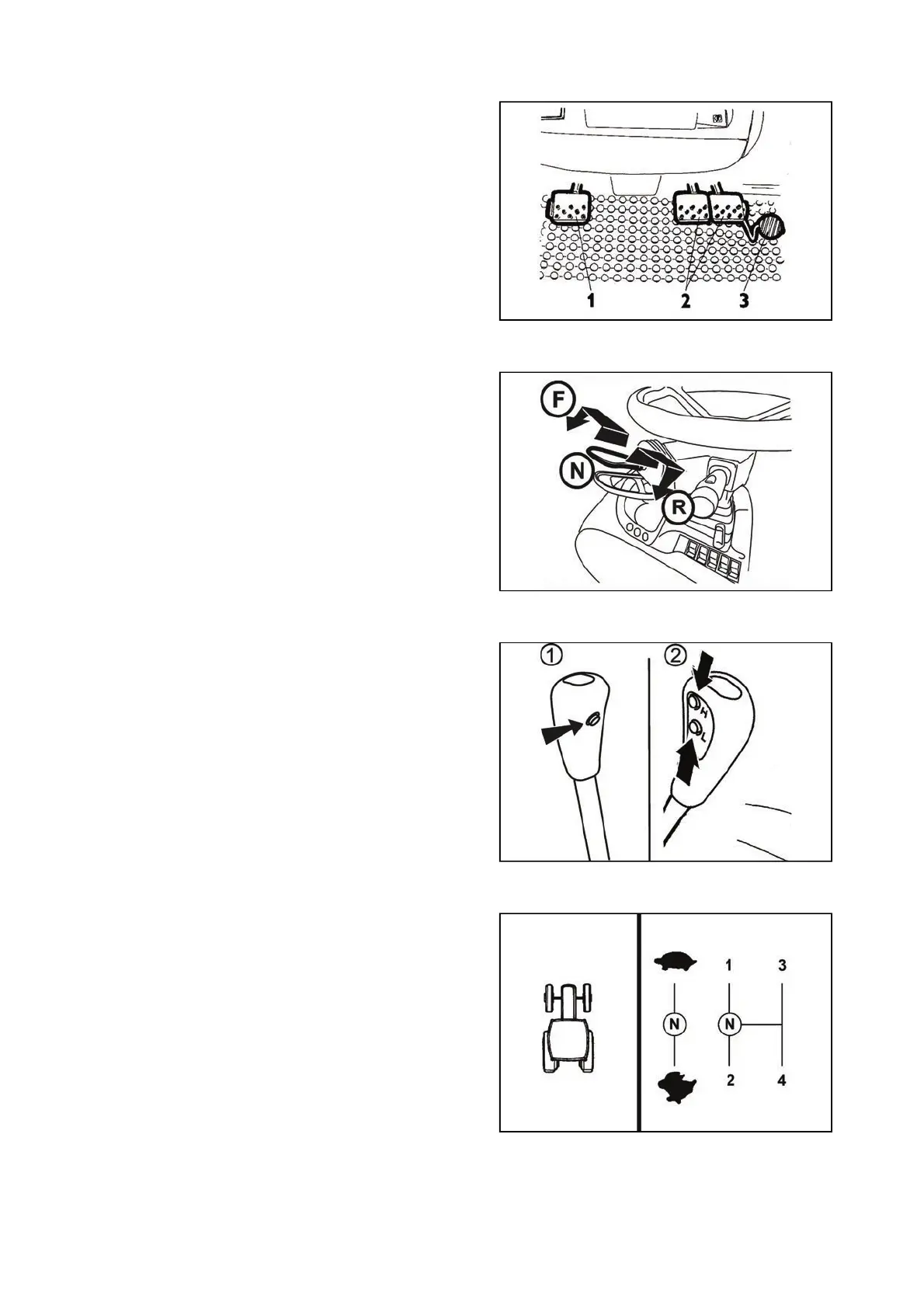

Pedals and levers
Reversing lever
Gear shifting lever
Gear shifting scheme
1. Travel clutch pedal
2. Foot operated service brake pedals connected by latch
3. Foot throttle pedal
P15N027
F - front driving; lever in the front
N - neutral
R - back driving; lever at the back
X212a
- main gear shifting lever
1. button for disengaging clutch on the head of gear
shifting
2. buttons of shifting individual gears of multiplier
FH12N037
Reverse can be shifted only using the reversing lever. The
scheme is attached in the left lower corner of the
windscreen.
E148a
ACQUAINTANCE WITH TRACTOR
44

Zetor Proxima HS 100 Specifications

General

Engine Power	100 HP
Displacement	4.156 L
Number of Cylinders	4
Hydraulic System	Open center
PTO Power	85 HP
PTO Speed	540/1000 RPM
Fuel Tank Capacity	150 L
Max Speed	40 km/h
Gears	24 forward / 24 reverse
