HYDRAULIC SYSTEM
P+11N003 P+11N004 P+11N009
CONTROLLING THE INNER
HYDRAULIC CIRCUIT

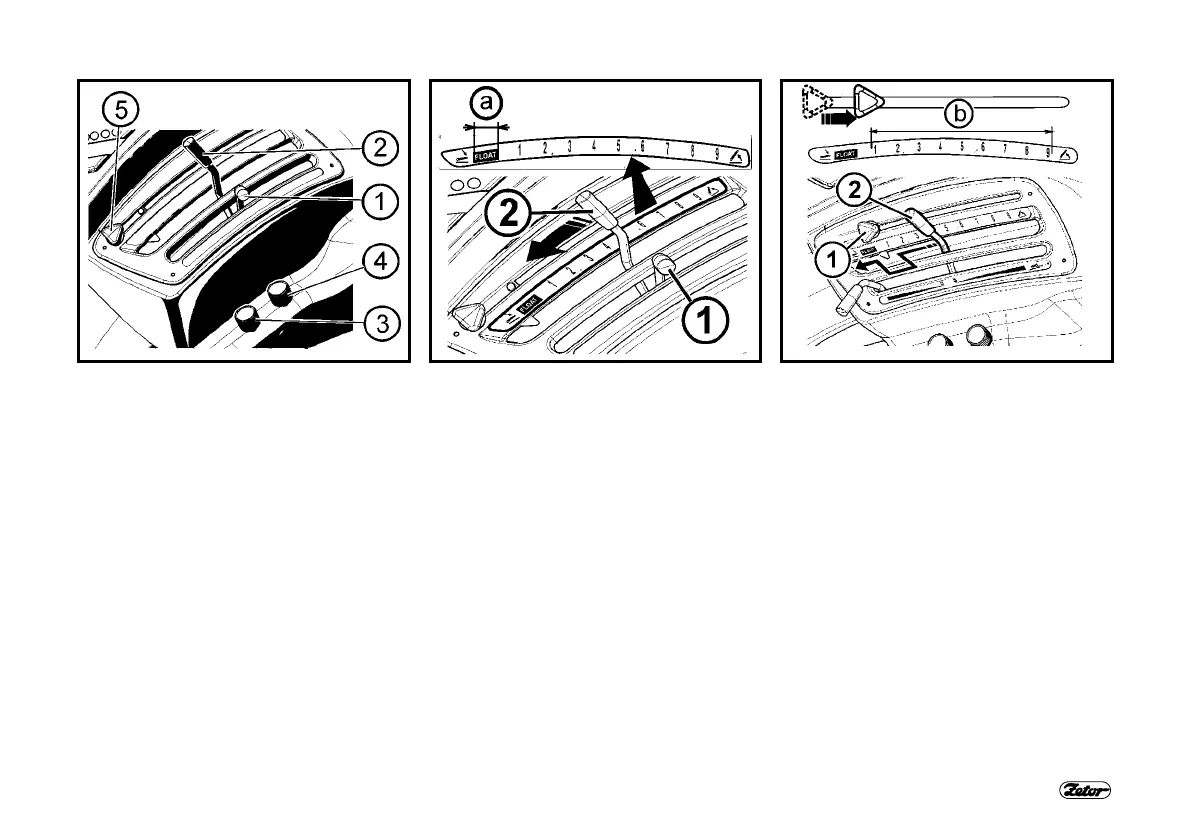

1. position or power regulation lever
2. lever for selecting floating position,
adjusting the height of the three-
point hitch in position regulation or
mixed regulation.
3. three-point hitch lowering speed
control
4. hydraulic system sensitivity control
5. adjustable stop
FREE (FLOATING) POSITION
Free (floating) position makes it possible
to work with tools with a support wheel.
In this position, the arms of the rear
three-point hitch are loose.
Move lever (2) to the front position (a).
The position of lever (1) makes no differ-
ence.
ADJUSTABLE STOP
Under default settings, it is recom-
mended to set the adjustable stop (1) to
a position on the edge between floating
position and the beginning of the range
of lifting of the rear three-point hitch (b).
After pushing the lever towards you, the
lever can be moved over the adjustable
stop.
