INTRODUCTION
12
EN 3201.758.001a 2016-02

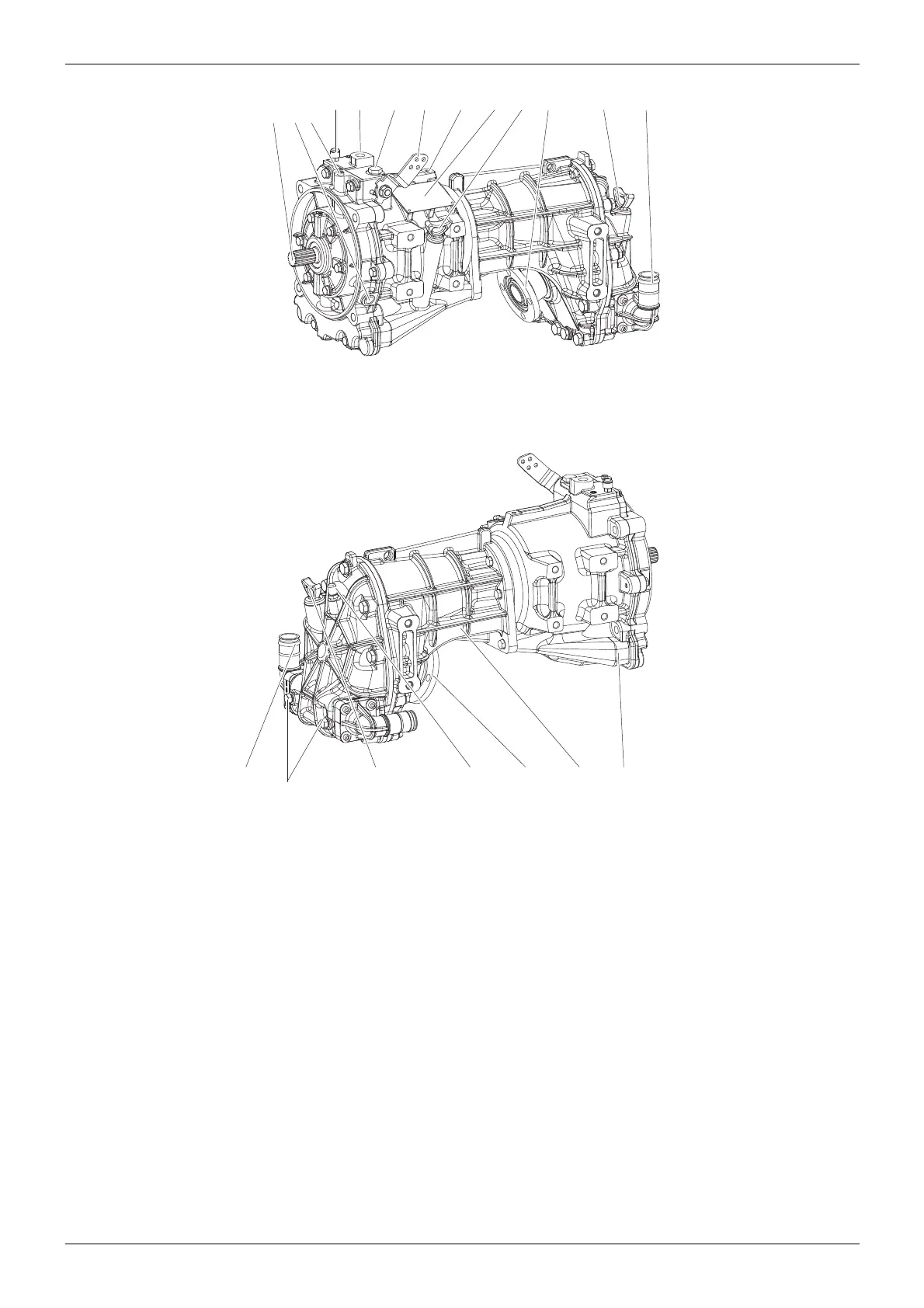

1. Breather Main Unit
2. From external cooler to control unit in Main Unit
3. 9/16 UNF control valve sensor connector
4. Valve control lever
5. From oil pump outlet to external cooler
6. Spline SAE Input Shaft
7. 1/8 - 27 NPT pressure connector C.E.R
8. Identification plate
9. 1/8 - 27 NPT pressure connector E.R
10.Oil dipstick for Main Unit (filling)
11.Output shaft
12.Oil dipstick for V drive Unit (filling)
13.V-drive integrated cooler
14.Anodes
15.Breather V drive Unit
16.V drive Unit
17.Main Unit
1 2 3 4 9 8 10 11 12 13
6 5 7
13 12 15 11 16 17
14
