5.2,2.3 Manual Scan
1.3 Product Descriptions
[ O : MENU > Setup > Service Searching > Manual Scan]
If you know well enough to configure each exact setting
required for manual search of services, you can do manual
scan as well.There are many parameter values that you need to
decide as below.
Amongst other things, the below parameters are what you
need to decide prior to performing manual scan.
1 Tuner
You need to decide which tuner you want to use for manual scan.
2 System Settings
Here you have two options between DVB-S (SD) and DVB-S2 (HD).
3 Frequency
You need to enter the exact fr equency of the transponder that you want to scan.
4 Symbol Rate
You need to enter the exact symbol rate of the transponder that you want to scan.
5 Polarization
Here, you have options for Horizontal, Vertical, Circular Left and Circular Right. You need to know the polarity of the transponder
that you want to scan,
6 FEC (Forward Error Correction)
You need to enter the exact FEC value of the transponder that you want to SGn.
7 Network Scan
Here you have two options for YES and NO.NO is used to scan the transponder (TP) based on the data that your ZGEMMA-STAR 2S
currently has. YES is used to scan the TP not just based on the existing TP data but also using new TP data, if there is
TP data newly transported from the TP. Naturally, YES option takes longer while it may results in a better scan result.
8 Clear Before Scan
YES is used when you want to delete the existing channel list before you start the automatic scan. If you want to keep the existing
list, select NO.
9 Only Free Scan
Here you have two options for NO and YES. If you want to scan only Free to Air channels without any encryption, select YES.
Otherwise, select NO to scan all FTA and CAS channels.
Press OK to activate the manual scan. This will take some minutes. As the scan proceeds, you will see the progressive bar and the
newly found services underneath.
5.2.2.4 Fast Scan
[ O : MENU > Setup > Service Searching > Fast Scan]
In case there are service lists available for certain satellites,
for example, Astra or Hotbird, you can install the lists in
the channel list of your ZGEMMA-STAR 2S.
If default service lists are not available, you can run the
service scan automatically or manually to add TV and radio
channels to the channel list of your ZGEMMA-STAR 2S.

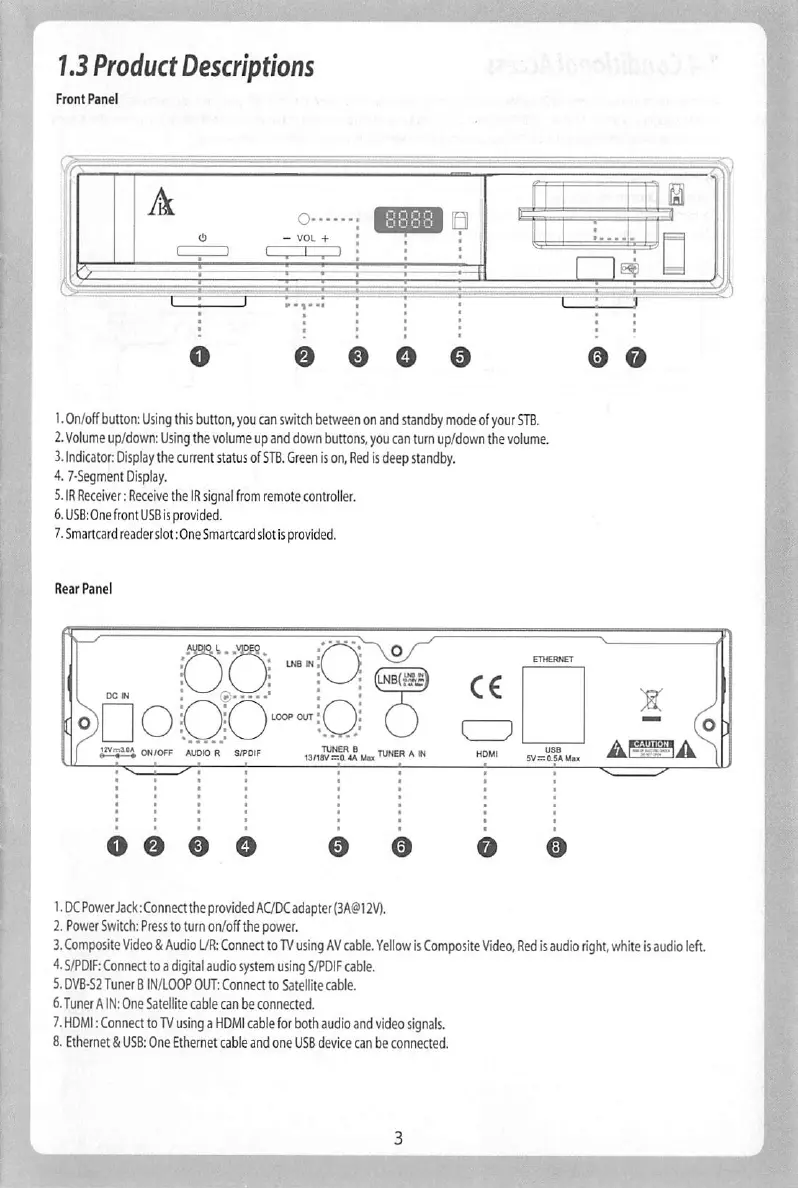

Front Pane
:m
e 0 o 0
1. On/off button: Using this button, you can switch between on and standby mode of your STB.
2. Volume up/down: Using the volume up and down buttons, you can turn up/down the volume.
3. Indicator Display the current status of STB. Green is on, Red is deep standby.
4.7-Segment Display.
5. IR Receiver: Receive the IR signal fr om remote controller.
6. USBiOne front USB is provided,
7. Smartcard reader slot :One Smartcard slot is provided.
Rear Panel
o e
iaVq»A fMlOPV AUDIO ft 8/POlF TUNER A
USB
9V=&6All0it
o o o o
O O 0 9
■' l.DCPowerJack:ConnecttheprovidedAC/DCadapter(3A@12V).
2. PowerSwitchiPresstotumon/offthepower.
3. Composite Video & Audio L/R: Connect to TV using AV cable. Yellow is Composite Video, Red is audio right, white is audio left.
4. S/PDIF: Connect to a digital audio system using S/PDIF cable.
5. DVB-S2 Tuner B IN/LOOP OUT: Connect to Satellite cable.
B.Tuner A IN: One Satellite cable can be connected.
7. HDMI: Connect to TV using a HDMI cable for both audio and video signals.
8. Ethernet & USB: One Ethemet cable and one USB device can be connected.
