ZGEMMA STAR 2S User Manual

h6 Main Features
•CPU 751 MHz
■Linux Operating System
• Media Player
• Downloadable Plug-ins supported
• 1X Smartcard Readers
• MPEG2 / H.264 Hardware Decoding
•2 DVB-52 Tuners
• 256MB NAND FLASH/512MB DDR Memory
■ lO/lOOMB Ethernet Interface
•2x USB 2.0
•HDMI
•CVBS-F Audio L/R
• SPDIF for digital bit stream out (Coaxial)
• EPG supported
• Automatic & Manual Service Scan supported
• Multiple LNB control (DiSEqQ supported
•Skin change supported
• Stable power adaptor (external)

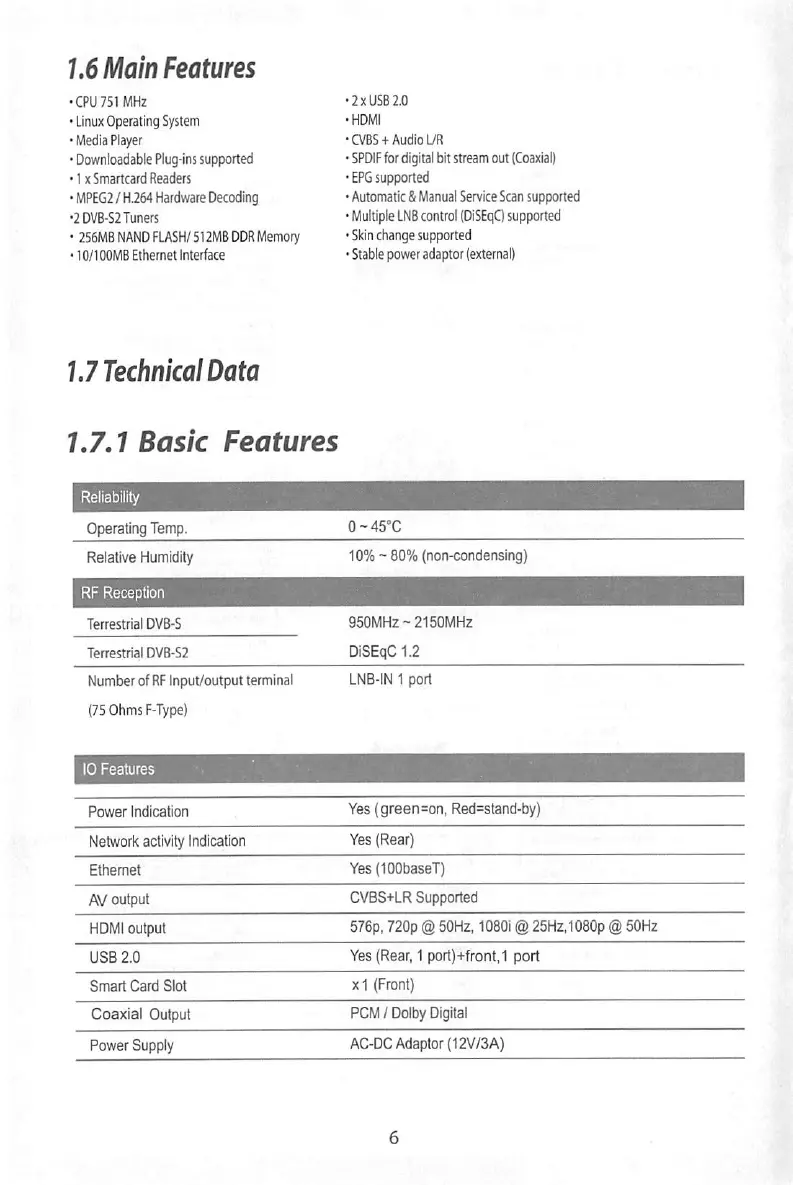

1.7 Technical Data
1.7.1 Basic Features
Reliability
0 - 45°C
Operating Temp.
Relative Humidity
10% - 80% (non-condensing)
RF Reception
950MHz ~ 2150MHz
Terrestrial DVB-S
DiSEqC1.2
LNB-IN 1 port
Terrestrial DVB-S2
Number of RF Input/output terminal
(75 Ohms F-Type)
10 Features
Power Indication
Network activity Indication
Ethernet
AV output
HDMI output
USB 2.0
Smart Card Slot
Coaxial Output
Power Supply
Yes (green=on, Red=stand-by)
Yes (Rear)
Yes (lOObaseT)
CVBS+LR Supported
576p, 720p (g 50Hz, 10801 @ 25Hz.1080p @ SOHz
Yes (Rear, 1 port)+front,1 port
x1 (Front)
PCM / Dolby Digital
AC-DC Adaptor (12V/3A)
Setup menu consists of the following sub-menus.
1 System Settings
2 Service Searching
3 Common Interface
4 Parental Control
5 Factory Reset
6 Software tJpdate
5.2.1 System Settings
5.2.1.1 Audio/Video
[ O : MENU > Setup > System Settings > Audio/Video]
Here you will find options necessary to set up the audio and
video configuration of your ZGEMMA-STAR 2S.
RED is for cancel and GREEN is for OK.OK key of RCU br
working in this mode
Amongst the parameters given in this menu, the following ones are generally what you need to decide for the audio and video.
1 Video output
Hereyou need to decide which videooutput you wantto use between yourTV and ZGEMMA-STAR 25. The available options are as
below.
•HDMI
•SCART
2 Resolution
You need to decide which resolution to use.
3 Downmix
YES is used when you want to set the audio output to be down-mixed to Stereo. NO is used when you do not want to set the audio
output to be down-mixed to Stereo.This option is recommended when you are using S/PDIF connection.
5.2.1.2 Other settings
IO : MENU > Setup > System Settings > Other Settings]
In this menu you will find various customization options and
this menu can be displayed in three different
formats: Simple, Intermediate, and Expert.
Amongst the options given in this menu, the following ones
are generally w4iat you may need to know.
