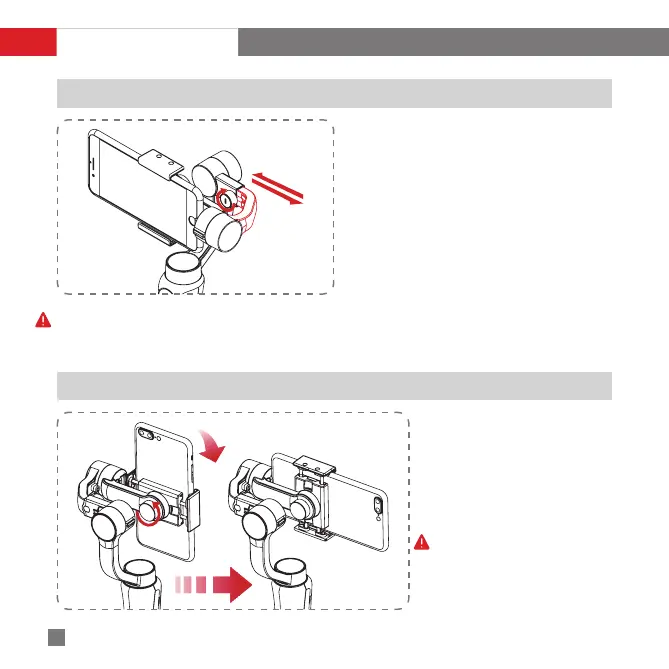

Gravity Center Adjustment
Switching Mobile Mounting Direction
If the smartphone fails to stay in level and keeps
tilting when mounted, loosen the Roll (Y) Axis
Thumb Screw to adjust the gravity center by sliding
the horizontal arm (as marked red in the Figure) until
the smartphone stays still and vertical on the tilt axis.
Tighten the Thumb Screw after the smartphone is
well balanced in level to ensure normal operations.
Loosen the Mobile Clamp Thumb
Screw on the back and rotate
the mobile clamp to the desired
direction (either in horizontal or
vertical).Tighten the Thumb Screw
to ensure normal operations.
Proper adjustment of gravity center ensures better power saving during operation. The stabilizer may
still function well when the gravity center is not properly configured, however, it may lead to more power
consumption on the motors, and can greatly affect the torque output.
NOTICE: Make sure the stabilizer
is powered off before changing the
mobile mounting direction.
Balance Adjustment
