INSTALLATION OF THE INDOOR UNIT

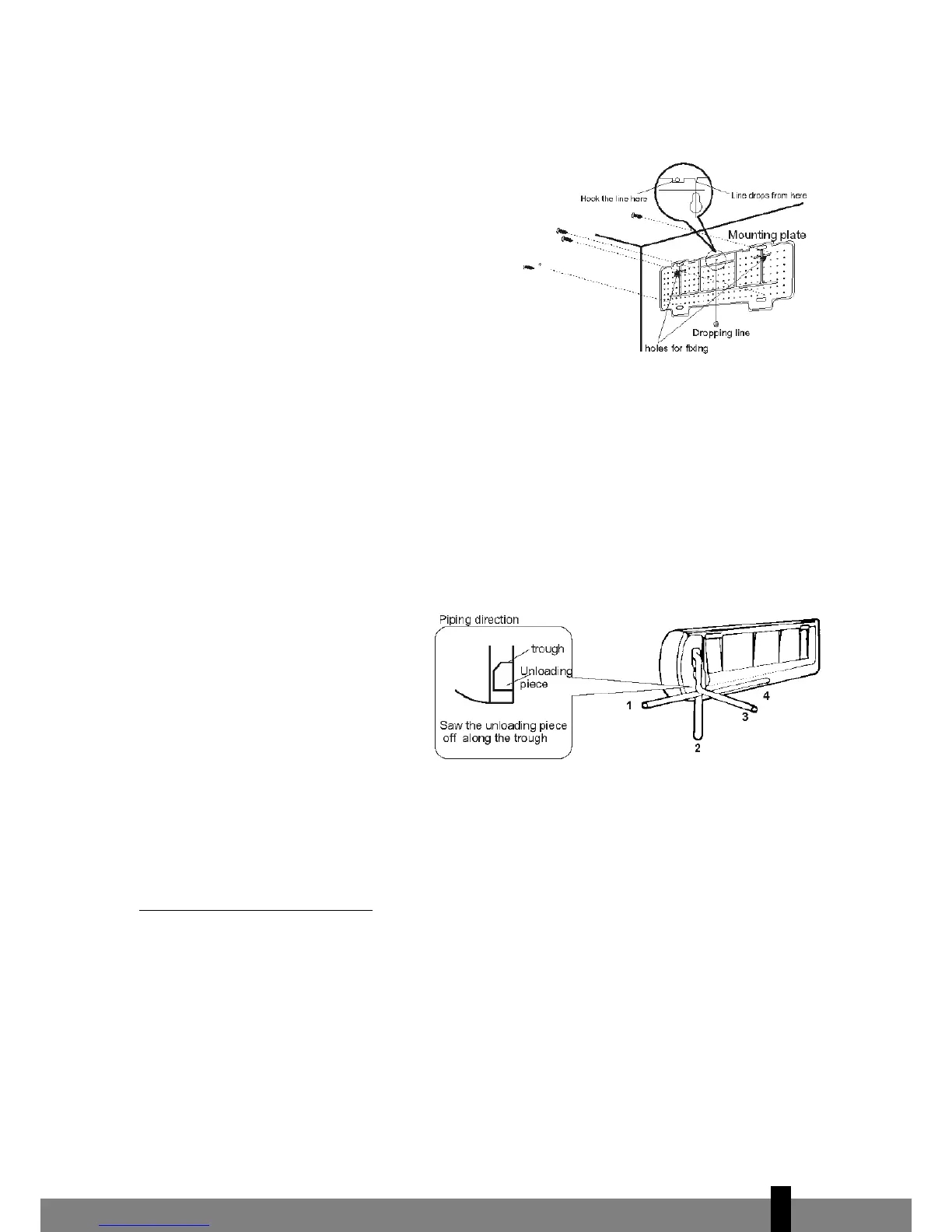

1. Installing the mounting plate
- Fit the mounting plate at the location
where the indoor unit will be hung. Take
a
ccount of the direction of the pipes.
- Place the mounting plate horizontally with
the aid of a level indicator or plumb line.
- Drill holes with a depth of 32 mm in order
to mount the plate.
- Insert the plastic plugs into the holes and
screw the plate into position with self-
tapping screws.
- Check that the mounting plate is firmly in
position and drill the hole for the pipes.
Note: the shape of the mounting plate may differ per model. However, the installation method is the same.
2. Drilling a hole for wires/pipes
- Determine the position of the lead-through hole for the wires/pipes on the basis of the drilling hole in
the mounting plate.
- Drill the hole in the wall. The hole must slope a little to the outside.
- Place a pipe sleeve in the hole in order to protect the wall.
3. Indoor unit wire/pipe installation
- Insert the wires/pipes (gas and liquid
pipes) through the hole from the
outside, or from the inside if you
have installed the indoor unit first.
- Create a recess that corresponds with
the direction of the pipes.
Note: create recess 1, 2 or 4, depending on the position you have chosen for the hole in the indoor unit.
- Fit the drainage hose after connecting the wires/pipes. Now connect the power cables. Finish by
insulating the pipes, cables and drainage hose.
Insulation of the pipe connections:
Insulate the connection pieces with insulating material and then wrap
them in vinyl tape.
