Page 10 MS - SOUND decoders MS440 to MS990 and MN - NON-SOUND decoders MN170 to MN340

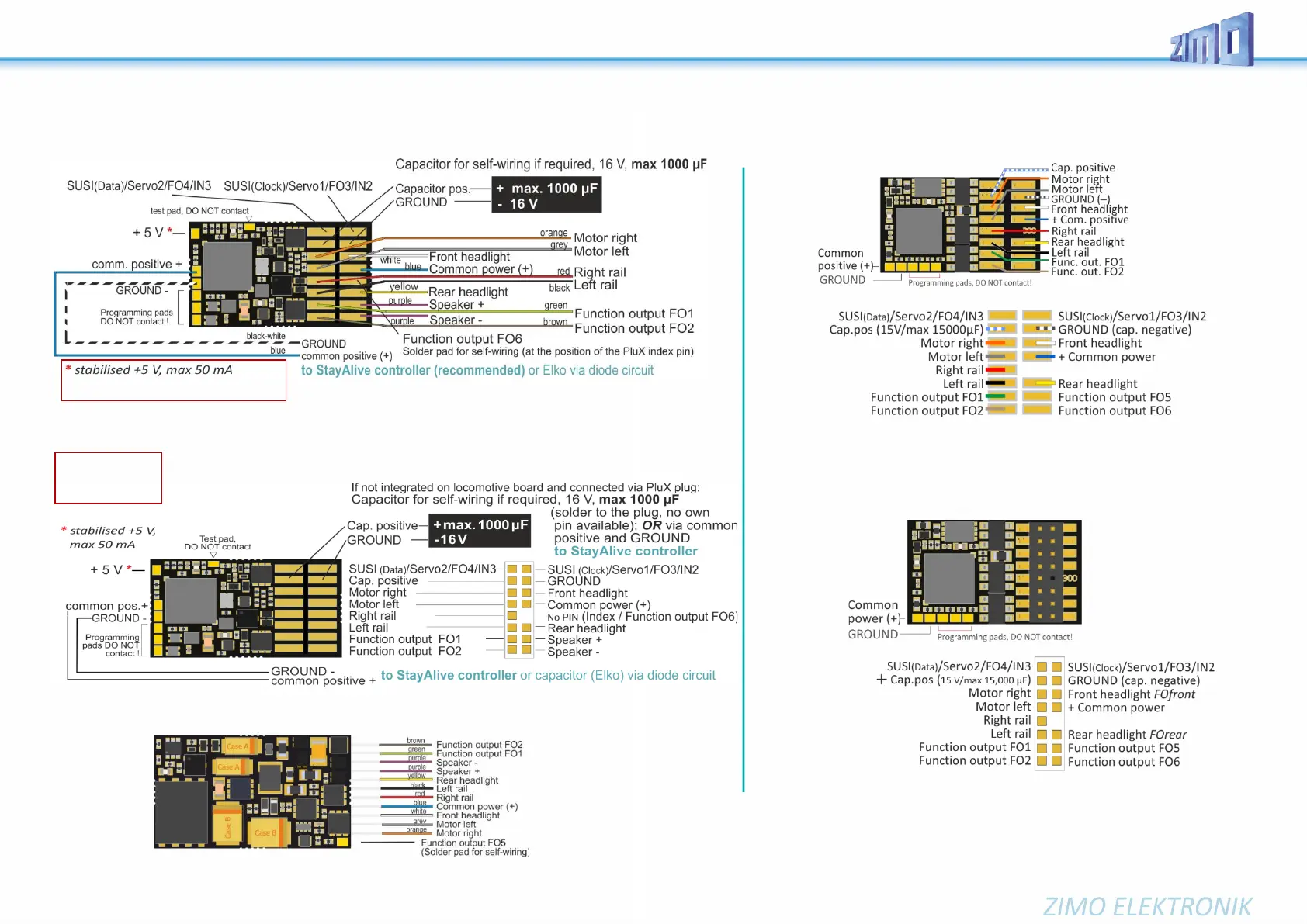

MS480, MS480R, MS480F Top side with wires
MS480P16 Top side (with PluX16)
Bottom side MS480, MS480P16 (drawing shows wired version)
MN300, MN300R, MN300F Top Side with wires, NON-SOUND
MN300P16 Top side with PluX16, NON-SOUND
Rev. B only! (Produced from August 2022)
Rev. B only!
(produced from
August 2022)
