ZIMO MS440C - Page 16

Page 16 MS - SOUND decoders MS440 to MS990 and MN - NON-SOUND decoders MN170 to MN340

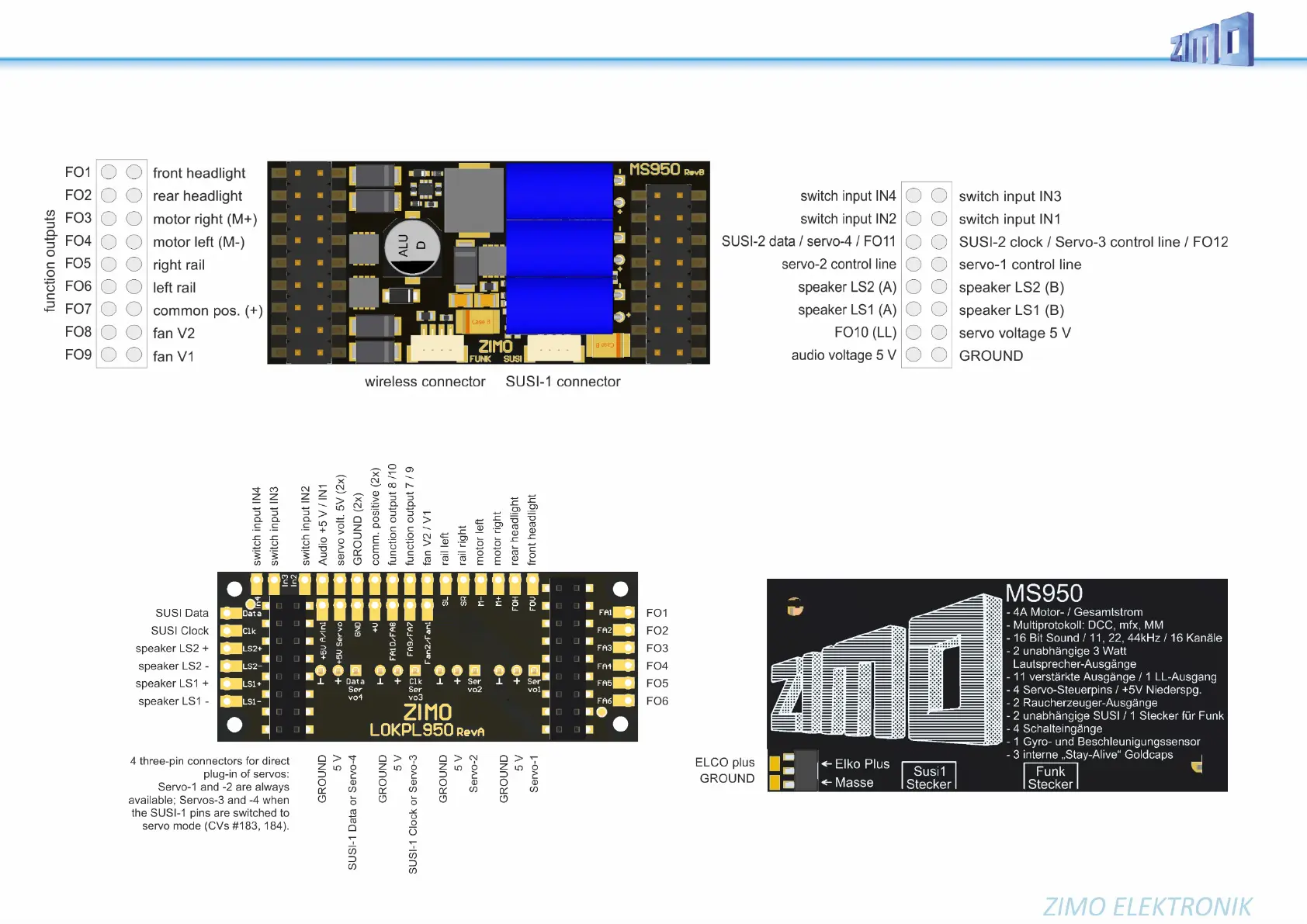

MS950 (Rev.B)
LOKPL950 loco board, suitable for large scale decoder MS950
(shown in smaller scale)
MS950 Bottom side (with base plate)
Base plate above the back of the MS950, visible: ELCO Plus and GROUND connector
