Non-Sound Decoder MX600 - MX634 and Sound Decoder MX640 - MX658 Page 63

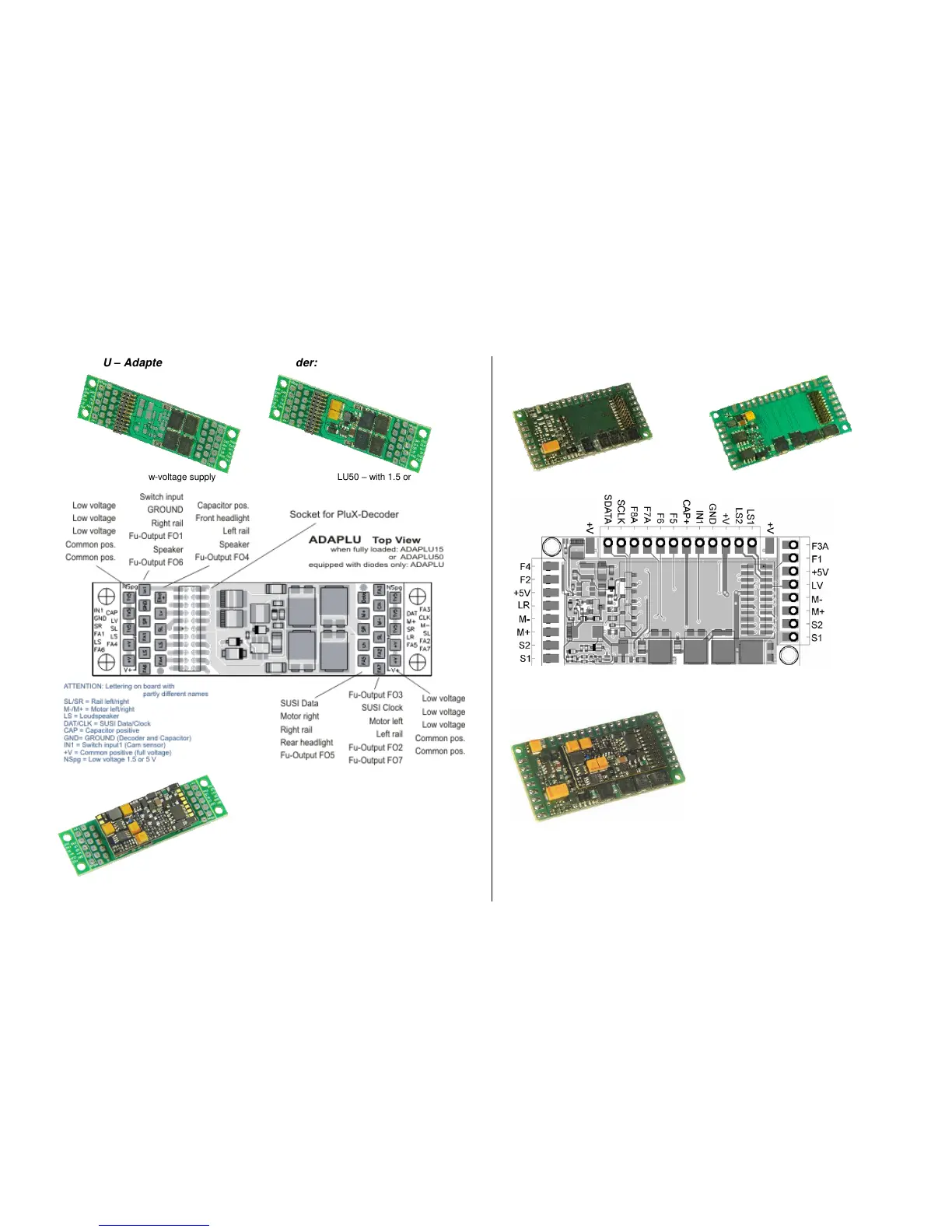

ADAPLU – Adapter boards for PluX22 decoder:
ADAPLU – without low-voltage supply ADAPLU15 or ADAPLU50 – with 1.5 or 5.0 V supply

ADAPLU with MX645P22 plugged in
results in a sound decoder with
1.8 A motor (total current)
9 function outputs
2 logic-level outputs (for servos, SUSI)
3 Watt audio, 4 – 8 Ohm, 32 Mbit
with direct connection for 16 V catalytic capacitors or su-
per caps to 6800 μF
Dimensions: 45 x 15 x 8 mm
ADAMTC – Adapter boards for MTC-21 decoder:
ADAMTC – without low-voltage supply ADAMTC15 or ADAMTC50 – with 1.5 or 5.0 V supply

ADAMTC50 with MX644C plugged in
results in a sound decoder with
1.8 A motor (total current)
8 function outputs
2 logic-level outputs (servos, SUSI)– low voltage
output
3 Watt audio, 4 – 8 Ohm, 32 Mbit
with direct connection for 16 V catalytic capacitors
or super caps to 6800 μF
Dimensions: 44 x 26.5 x 6 mm
A capacitor
(electrolytic or
gold cap module)
is connected to
V+ and CAP-
