DEX & DBX Installation, Maintenance and User Instructions - April 2011 7

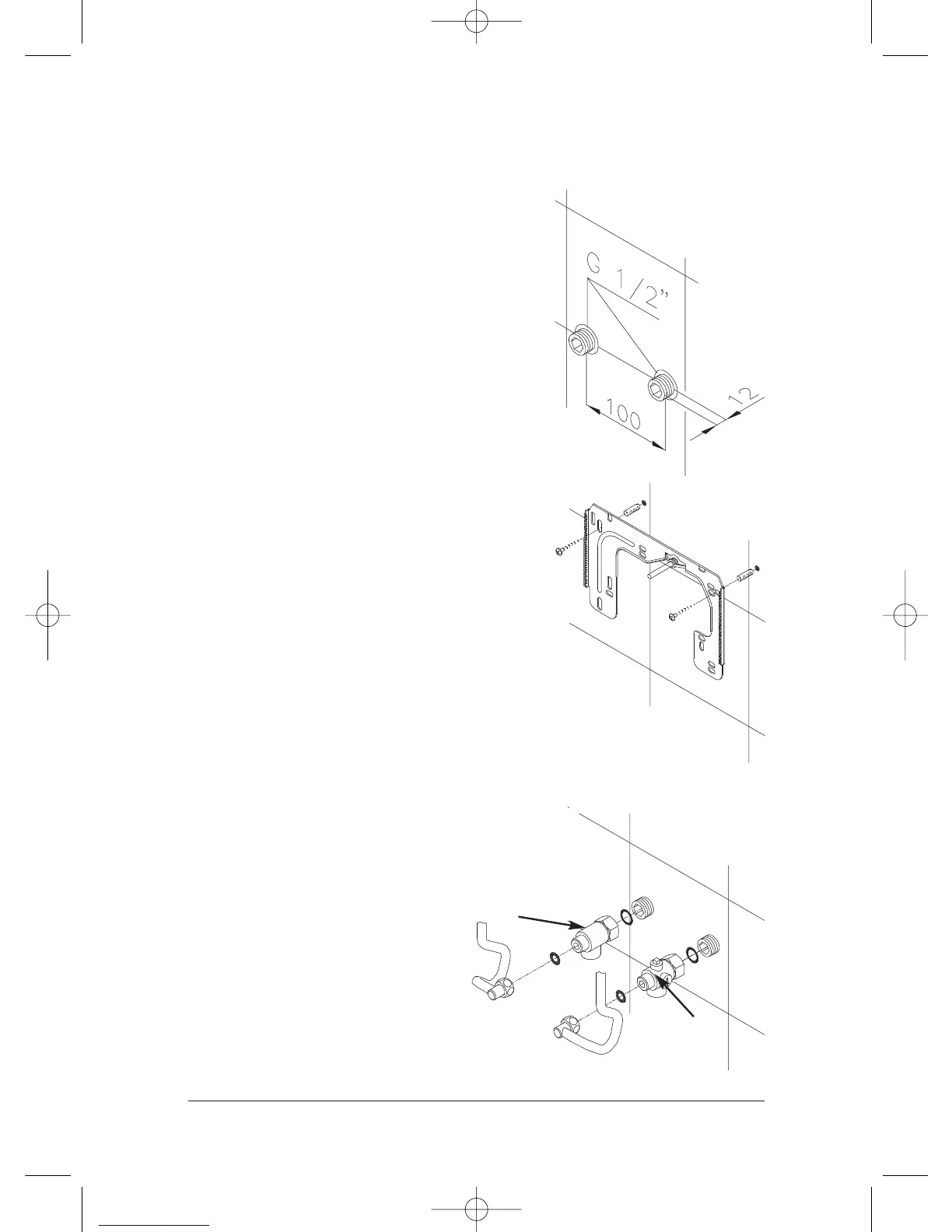

Fig 1
Fig 2
A
B
Installing the wall bracket
1.Thoroughly flush the water supply pipes before
installation to remove any water borne debris.
2.Using a 12mm hexagon key, screw the screw
in nipples into the wall connections. After
tightening the double nipples must protrude
by 12mm.
3.Hold the mounting template on the wall and
align it so that the holes in the template fit
over the connections. Use the template to
locate the drilling positions and drill them with
a 6mm bit, ensuring that there are no hidden
cables or pipe-work. Attach the wall bracket
using the fixings and screws supplied.
4.Offset tiling or uneven surfaces can be
compensated for by up to 30mm with the aid
of the spacers supplied. The spacers are fitted
between the wall and the wall bracket.
Installing the connection pieces
1.Screw the cold water connection piece (A) with
the union nut and the ½” seal onto the cold
water connection.
2.Screw the hot water connection piece (B) with
the union nut and the ½” seal onto the hot
water connection.
