Zip FlushMaster 40090 - Installation Steps; Set Up Water Discharge

Page 4 of 12 87100 v1.12 09.22 FlushMaster
Single stall
1.5 to 2.5 Litre
Discharge Capacity
Twin stall
3.0 to 5.0 Litre
Discharge Capacity
Triple stall
4.0 to 7.5 Litre
Discharge Capacity
Single
stall
Twin
stall
Single trough
Maximum trough
length 600 mm
Single trough
1.5 to 2.5 litre
discharge capacity
Single trough
3.0 to 5.0 litre
discharge capacity
Single trough
4.0 to 7.5 litre
discharge capacity

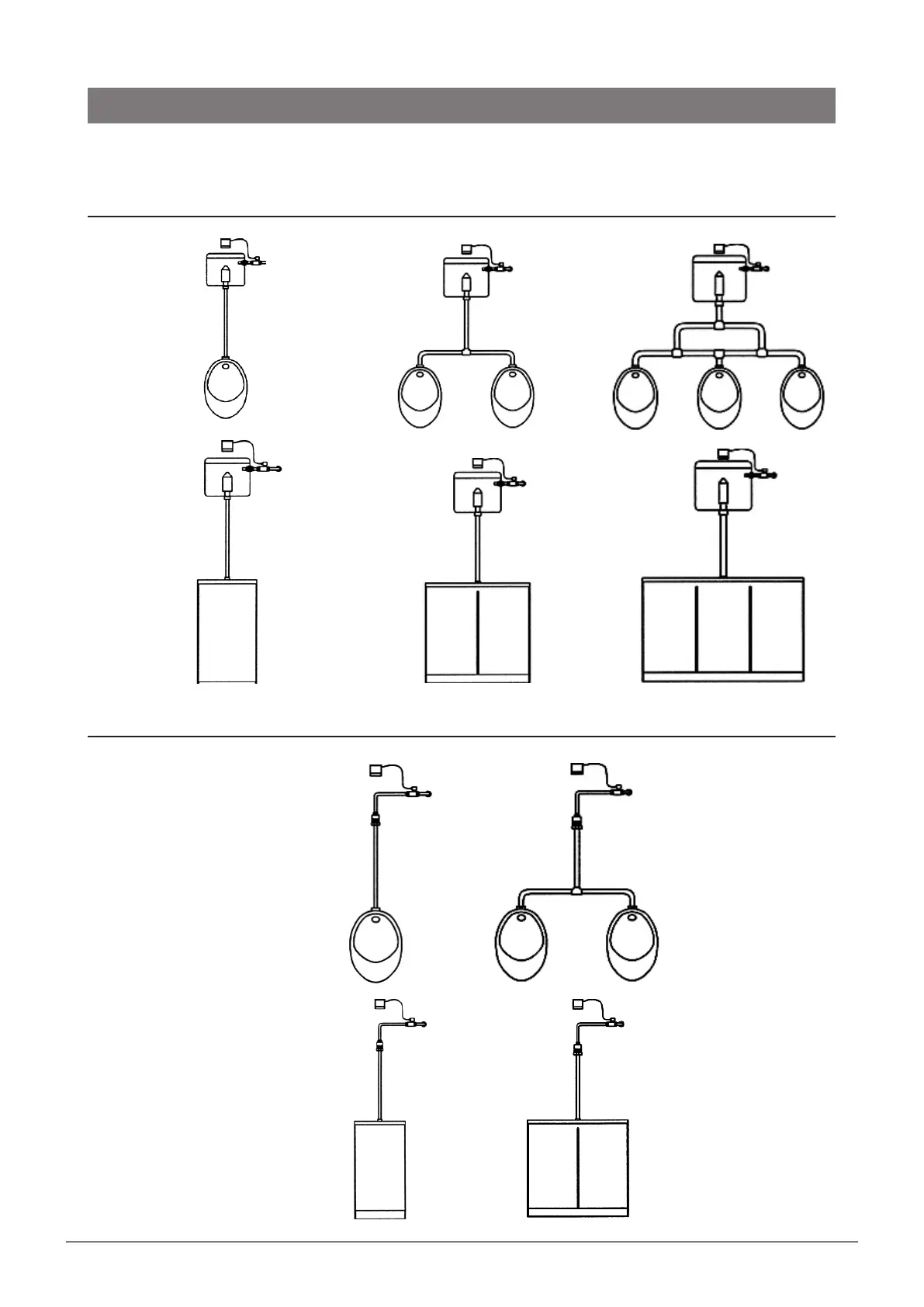

Typical Installation with Cistern
Typical Installation with Direct Injection
Installation
1. Set up water discharge
Twin trough
Maximum trough
length 1200 mm
