Quick Start Installation Guide
807118UK v1.12 12.23 G5 BC Quick Start Guide

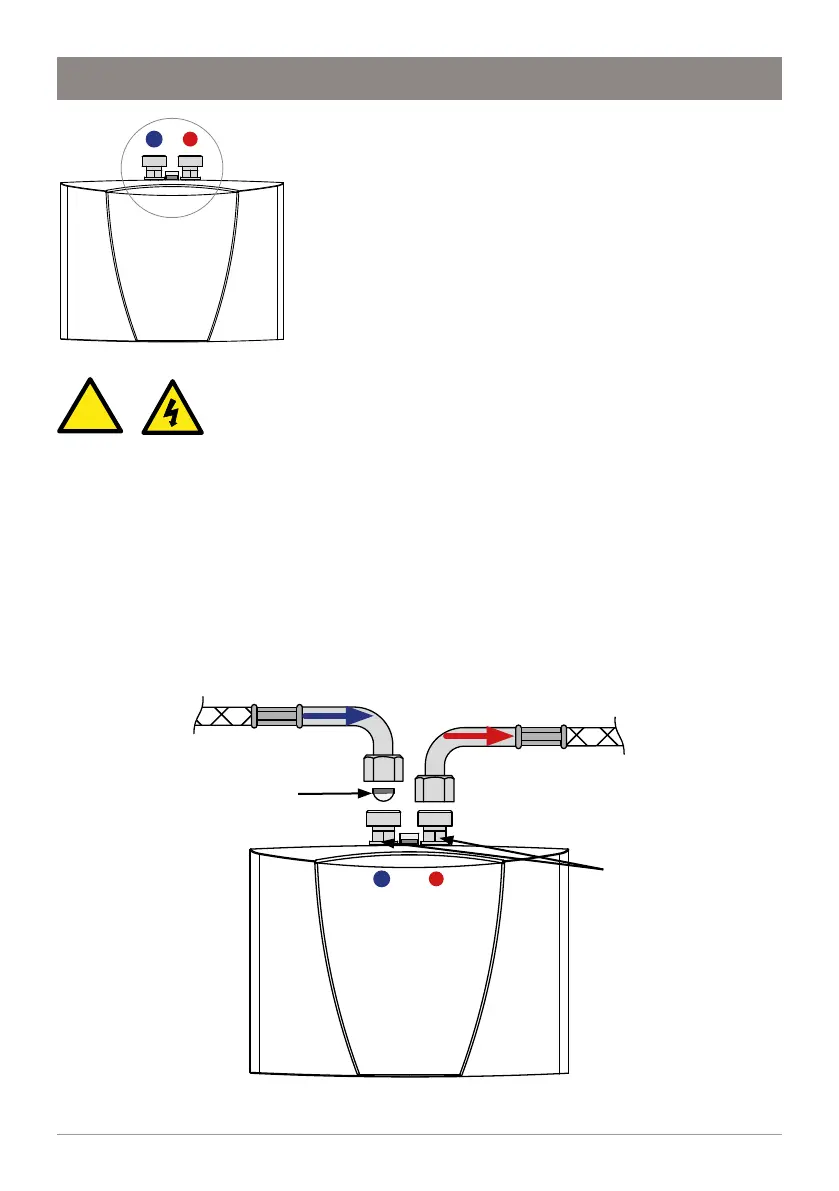

SECTION 10: Connect the Booster
Booster
Booster
Hold connections
with spanner
while tightening hoses
3/8" BSP
connections
Do not connect to electrical power until commissioning.
Do not over tighten hose connections.
Braided hoses supplied cannot be lengthened.
Strainer
Cold water into Booster,
connect to Command Centre
BYPASS OUT
see pages 20-23
Hot water out of Booster,
connect to Command Centre
BYPASS IN
see pages 20-23
