Zip HydroTap G5 BC100 - SECTION 6: Set up the Ventilation

12
Quick Start Installation Guide
807118UK v1.12 12.23 G5 BC Quick Start Guide
SECTION 6: Set up the ventilation
!

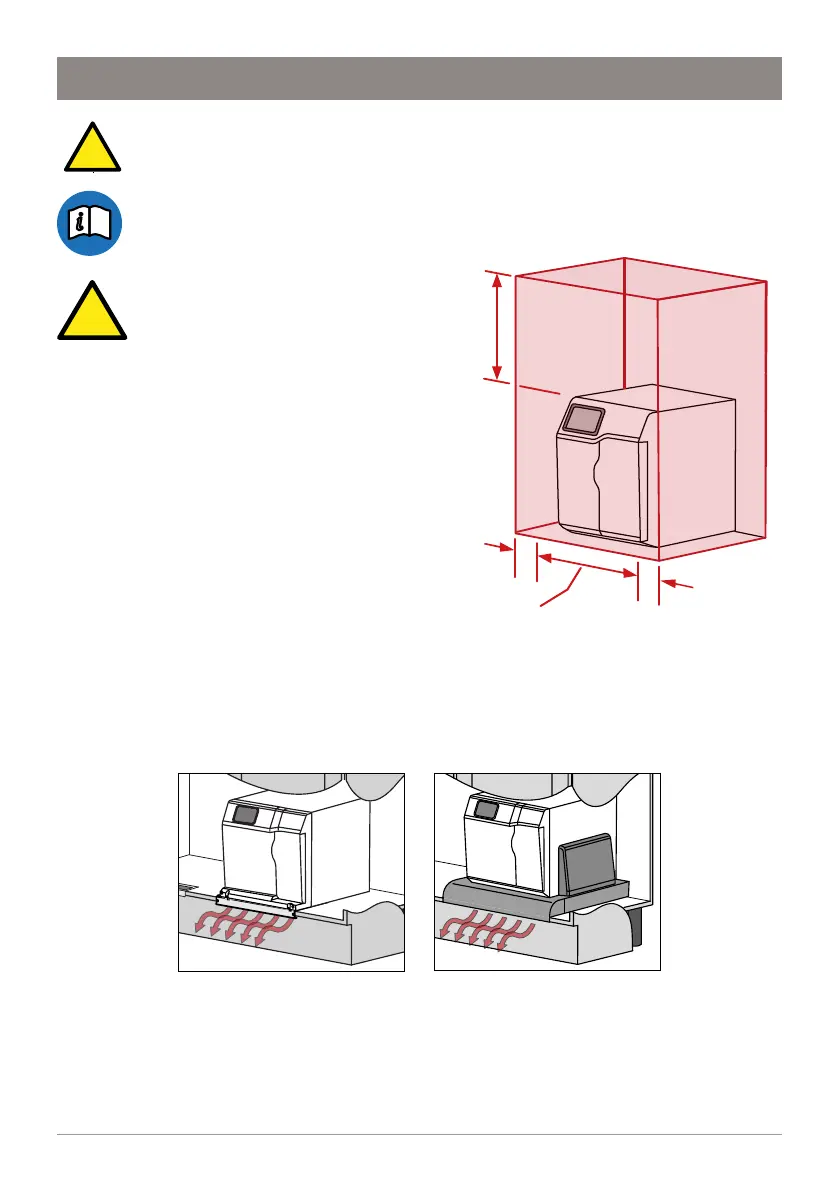

A clearance envelope
around the Command
Centre must be provided
to allow ventilation for the
safe and effective use of the
HydroTap system.
Command Centre width
200mm
50mm
50mm
Use instructions supplied with individual kit parts.
!
!
Use of tools can be hazardous. Assess the risks before you start.
Front vent Side vent & tray
If cupboard temperature exceeds 35°C, additional ventilation is required.
Contact your Zip service provider for options (including additional vents and
fan kit).
BC HydroTap is supplied with either of two ventilation systems. Follow the
instructions to suit your model.
All models
