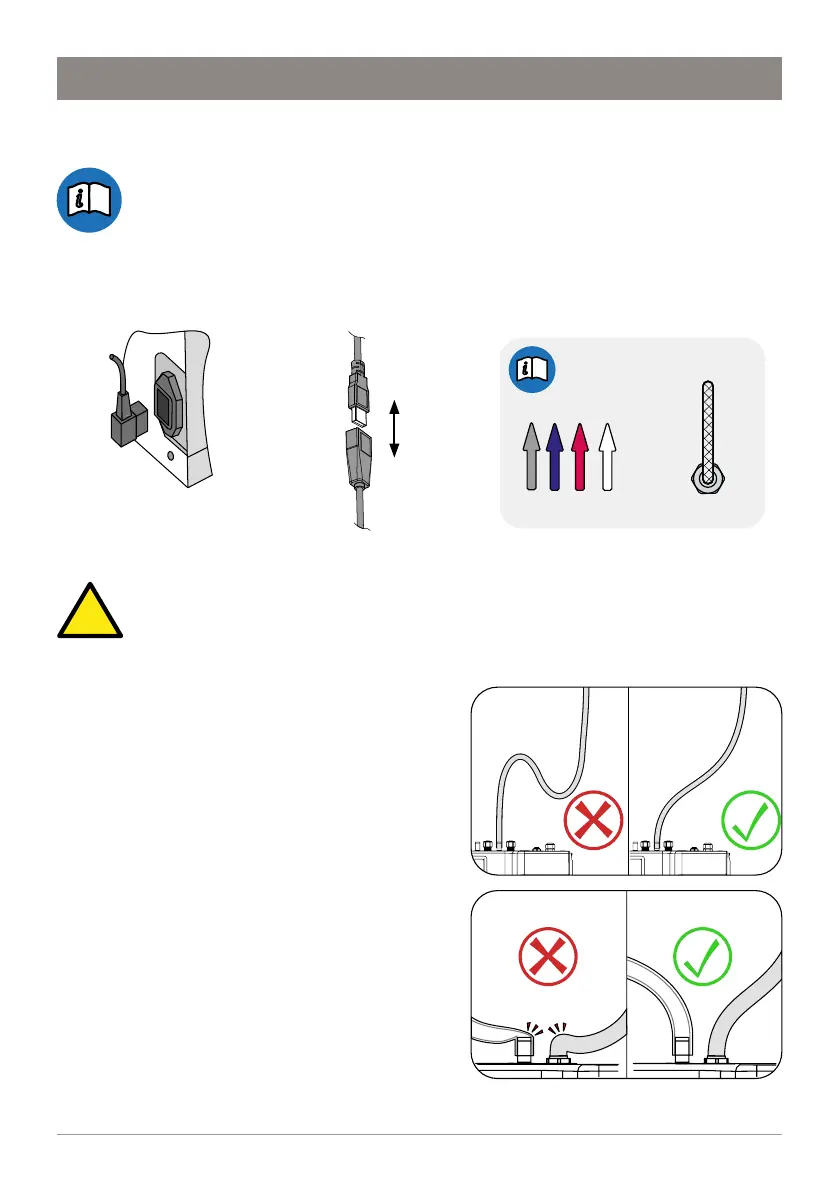

SECTION 11: Connect the Command Centre
For HydroTap, mixer tap and any optional accessories, use
instructions supplied with individual kit components.
Connections key
HydroTap
Braided hose
Command
Centre
USB
Tap
Generic installation instructions
Mains power cable
Do not connect to the mains
socket until commissioning
Installation diagrams are for illustrative purposes only.
Hoses are not shown to scale and cannot be lengthened.
Tips for hose connection
• Push the silicone hose over the
connector for a minimum of 15mm.
• Ensure there is a constant fall from
the tap down to the Command
Centre.
• Hoses must be trimmed to avoid
loops and kinks. Take care when
positioning before cutting and make
a clean cut straight across the hose,
using a sharp blade.
• The hoses must not be under tension
when installed.
