Installation instructions & user manual
9120-25693 v3.00 Oct 2018 - ZIP CEX
Technical support
Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk
INSTALLATION
Check that the power supply is
switched off prior to electrical
connection!
• Dismantle off the power cable in order to
insert the cable with its outer insulation
through the water splash protection sleeve
up to the cord grip into the appliance.
• Lead the cable through the water splash
protection sleeve into the appliance in order
to securely fix the outer insulation of the
cable with the cord grip. If necessary, use
one of the three predetermined breaking
points for the cable entry (at the right, left or
top). The protective sleeve prevents water
from entering the appliance alongside the
connection line. The protection sleeve must
be used!
• Mount the cord grip. The cord grip must be
used!
• Strip the cables and plug them in the
connecting terminals according to the wiring
diagram. The appliance must be earthed.
• Ensure that all connections are fully
tightened and secure.
• Following electrical connection, fit the front
cover. Make sure not to trap any cables
between the front cover and the body of the
appliance.

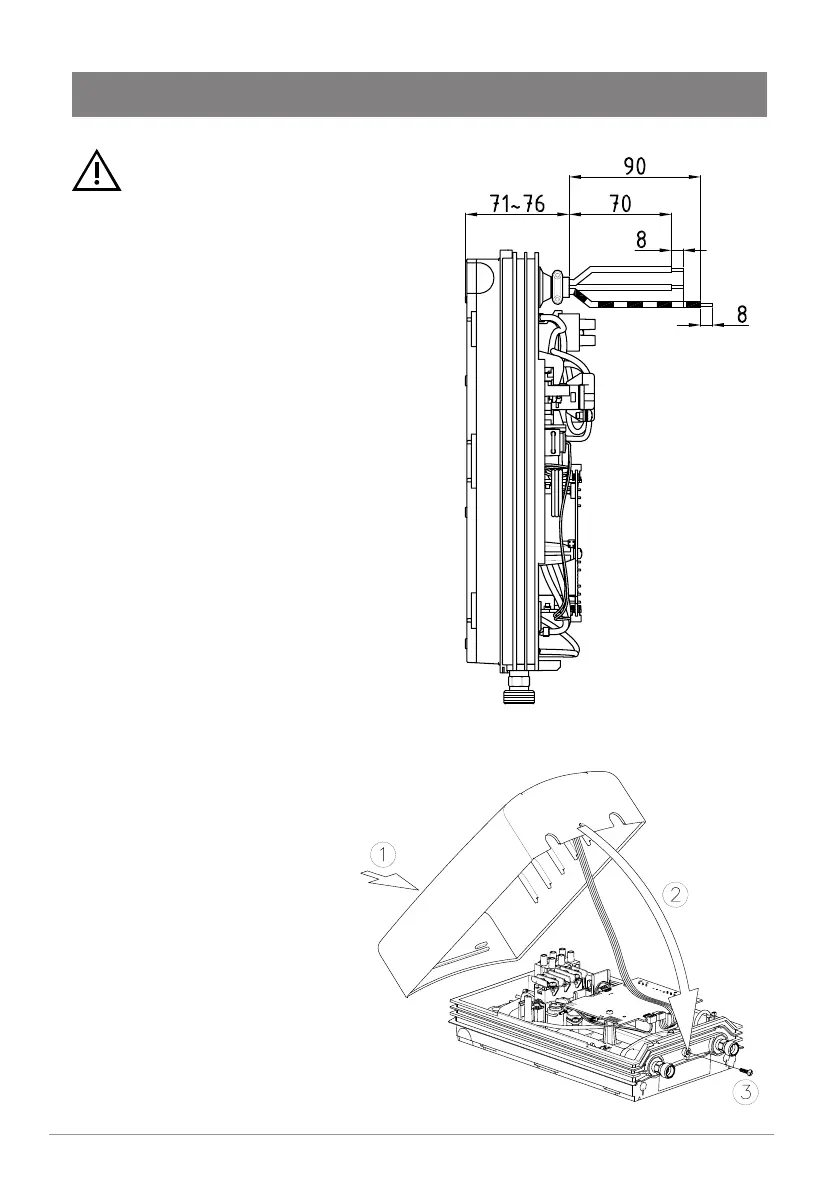

Fig. 5
Fig. 6
