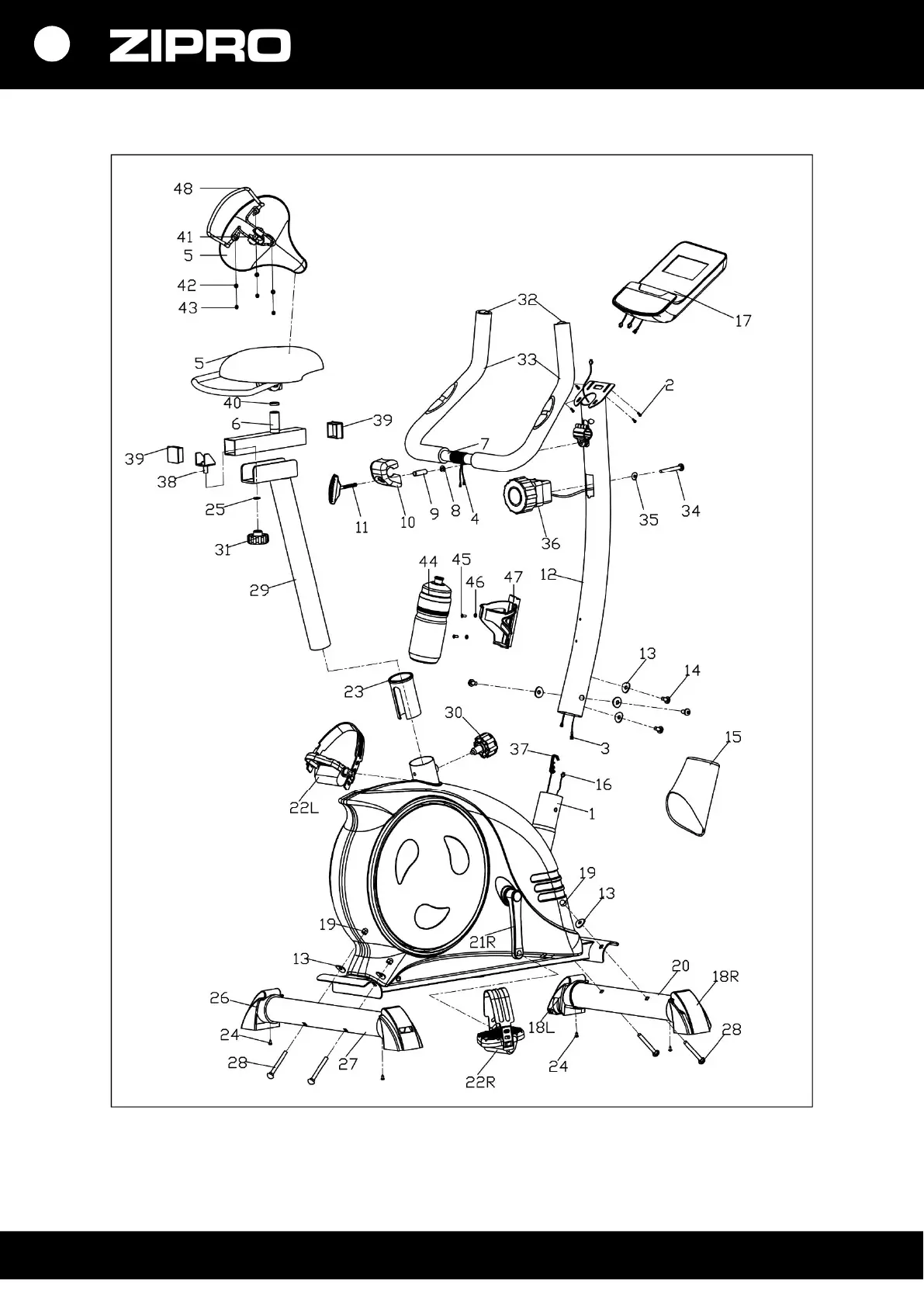

Zipro Easy - Assembly Diagram

21
EN
PARTS LIST
No.
Description
Quantity
No.
Description
Quantity
1
Front main frame
1
25
Seatback
1
2
Front base
1
26
Connecting cable
2
3
Rear base
1
27 L/R
Pedal
1/1
4
Bolt M8x90
2
28
Sensor cable
1
5
Curved washer D8x2xφ25xr39
2
29
Resistance adjustment cable
1
6
Nut M8
6
30
Upper connecting cable
2
7
Front base foot
2
31
Upper sensors cable
1
8
Rear base foot
2
32
Handlebar column
1
9
Rear main frame
1
33
Resistance adjustment knob
1
10
Heart rate connecting cable
2
34
Curved washer D5
1
11
Grip
2
35
Cross-head bolt M5x55
1
12
Bolt M8x80
2
36
Handlebar cover
1
13
Curved washer Φ20xd8.5xr30
6
37
Handlebar adjustment knob
1
14
Heart rate measurement cable
2
38
Separator
1
15 L/R
Handlebar handrail
1/1
39
Handlebar
1
16
Saddle adjustment knob
1
40
Handlebar grip
2
17
Flat washer D10
1
41
Cross-head bolt M5x73
4
18
Saddle guide U-bracket
1
42
Spring washer D8
6
19
Handlebar handrail cap
2
43
Handlebar cap
2
20
Hexagonal bolt M8x15
20
44
Computer
1
21
Flat washer D8
19
45
Bolt M8x73
2
22
Saddle and seatback column
cap
1
46 L/R
Crank
1/1
23
Saddle and seatback frame
1
47
Cross-head bolt ST3x10
2
24
Saddle
1
