ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

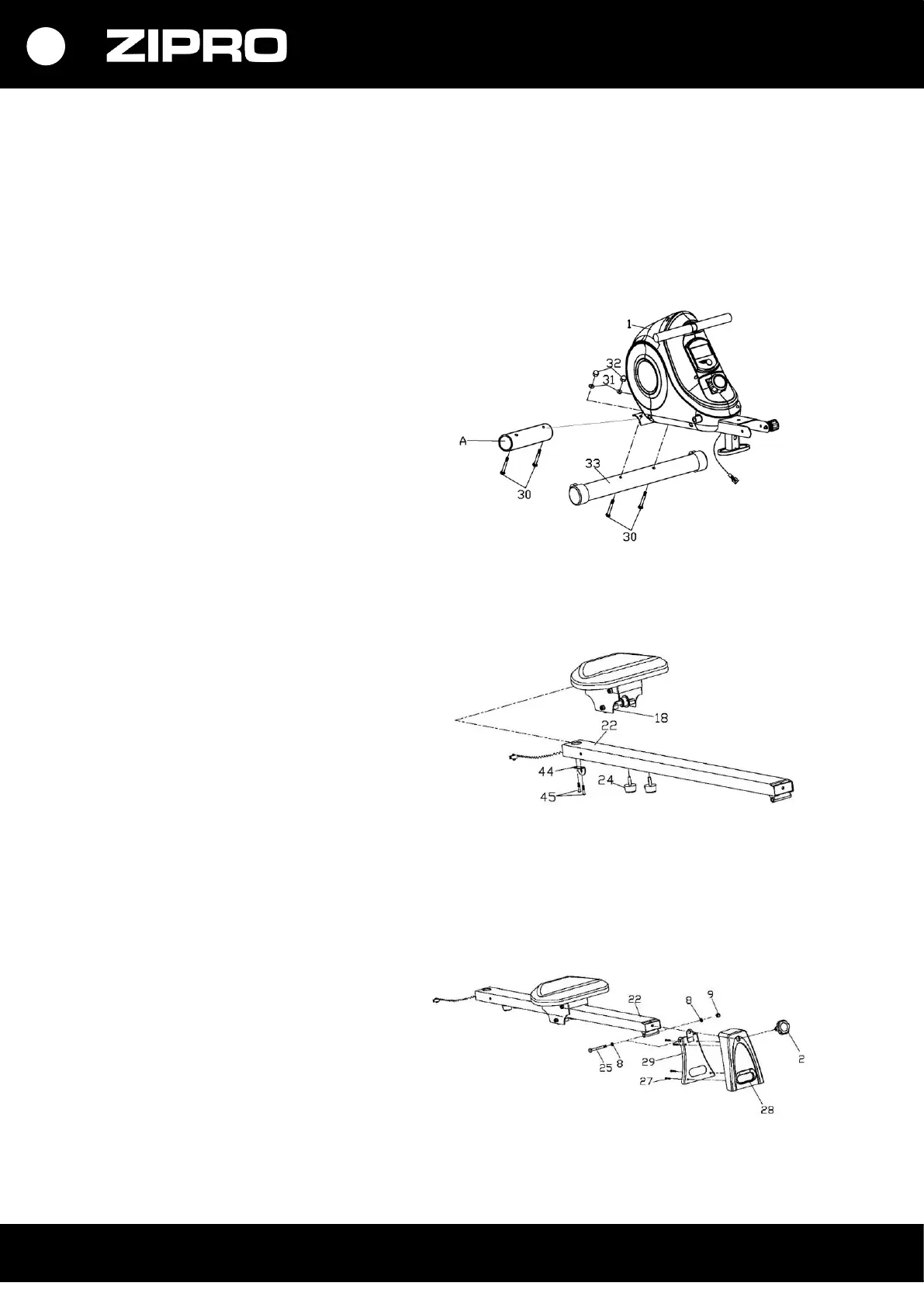

STEP 1.
Remove the paper cover and fix the front
base (33) to the main frame (1) with bolts (30),
curved washers (31), and nuts (32).
STEP 2.
Remove stoppers (24), screws (45),
and the back plate (44).
Lock the saddle with the slider (18)
on the slider track (22) and retighten the locks
(24) and the back plate with screws (45).
STEP 3.
Fix the rear base (29) to the slider track (22)
with the hexagonal bolt (25) with the flat
washer (8) and the nylon nut (9).
Then put the cover (28) onto the rear base
(29) and screw it with screws (27).
Screw the knob (2) on.
