Instructions Manual for 5EVM-D Models
M5EVMD2011I
5EVM-D: Electric Vehicle Home AC Charging Station
© ZIV APLICACIONES Y TECNOLOGÍA, S.L.U. 2020
8
When installing and commissioning the equipment, follow the instructions described in the Low
Voltage Electrotechnical Regulations. The installation of the equipment requires an external
overcurrent protection (MCB) and a differential breaker (RCD).

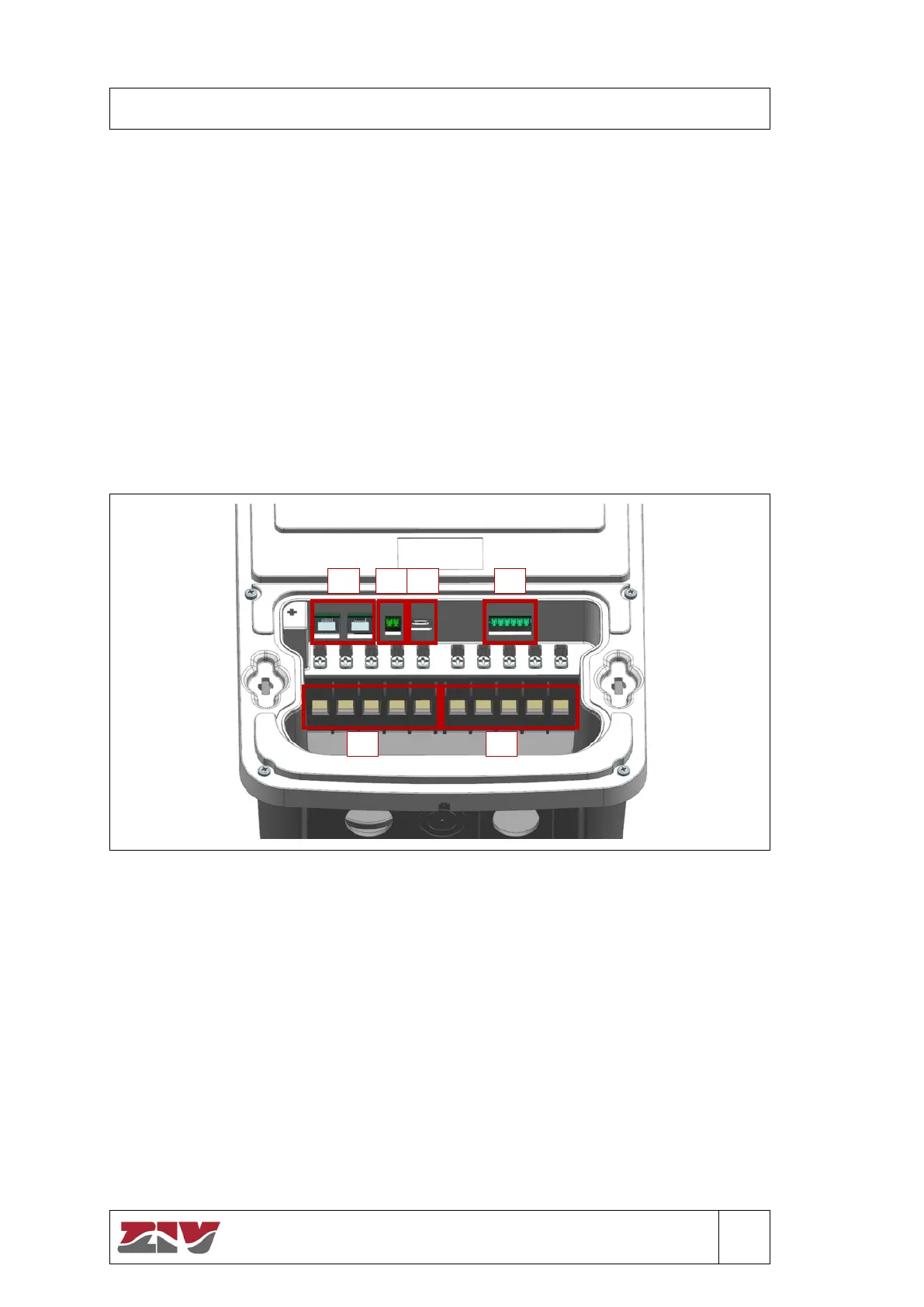

4.3 Connection Elements
To access the connection, remove the front wire cover.
The connection blocks are as follows:
1. Equipment Power Supply.
2. Power supply to the electric vehicle (hose).
3. Pilot wire (CP).
4. Communication RS-485.
5. USB connector (no functionality assigned).
6. Connector for "Home AC" accessory (load balancing).
Figure 5. Connection Elements.
