TF1700 & ZKAccess CLASSIC 3.5 software INSTALLATION GUIDE

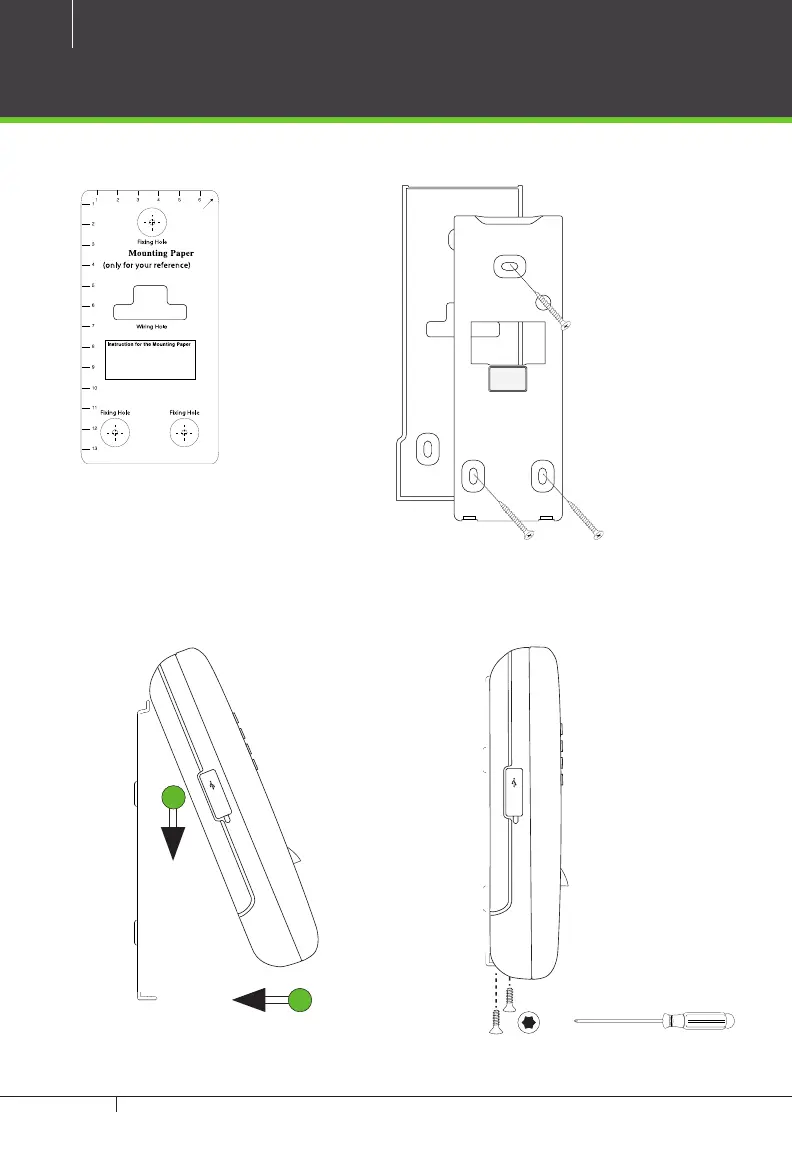

Mounting the reader on the wall
Fix back plate to the wall using wall mounting screws
TF1700
Stick this mounting paper to the wall
or door frame. Drill the holes according
to the mounting paper.
We recommend drilling the mounting plate screws into solid wood (i.e. stud/beam). If a stud/beam
cannot be found, then use the supplied drywall plastic mollies (anchors).
1. Stick the mounting
template on the wall
and make holes as
per the markings.
2. Mount the rubber gasket
and the back plate on the
wall with the help of the
supplied screws.
Reset
4. Use star-shaped screw to mount it3. Inserting Reader to backplate
1
2
To Next Page
