TF1700 & ZKAccess CLASSIC 3.5 software INSTALLATION GUIDE
SN 000000000000
Purple
Brown
White
Black
Gray
Blue
Red
Yellow
Orange
Green
:
:
:
:
+12V
GND
IWD1
IWD0
RLED
GLED
BEEP
WD0
WD1
GND
485+
485-
+12V
GND
Red
Black
White
Green
Blue
Gray
Purple
Green
White
Black
Blue
Yellow
Red
Black
BELL-
BELL+
SEN
GND
BUT
NO1
COM1
YNC1
NO2
COM2
RJ45-1
RJ45-2
RJ45-3
RJ45-6
Bell LOCK Alarm Ethernet
Power485WG-OutReader
Fingerprint Access Control
Manufacturing license No: 75569364-2
SBTS Registered No: H0201
Power Supply DC 12V == 3A
Operating Environment Temperature: 0ºC-45ºC
ISO9000 :
2008 CE FC RoHS
69370226

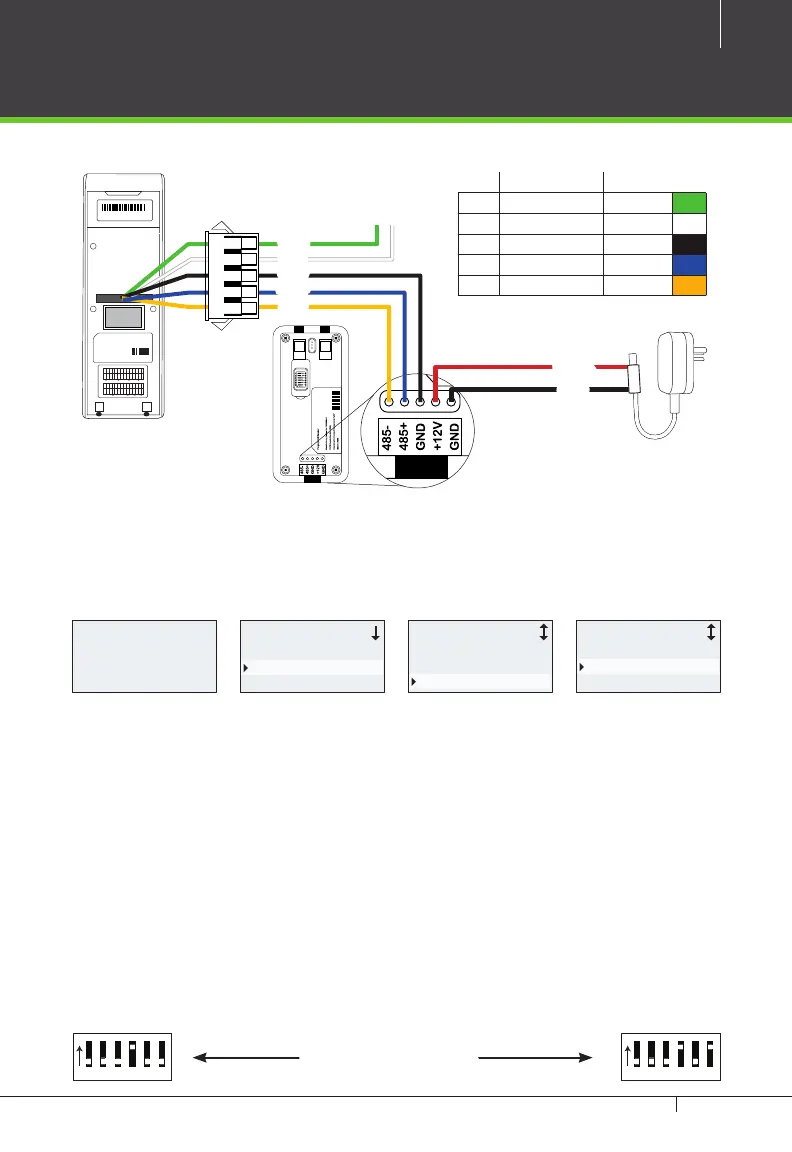

FR1200 Connection
TF1700 Settings
TF1700
FR1200
PIN DESCRIPTION WIRE
1 WD0 Red
2 WD1 White
3 GND Black
4 485+ Blue
5 485- Yellow
1. Steps to activate the master and salve functionality between TF1700 and
FR1200 as shown in the diagram on the left.
2. There are six DIP switches on the back of FR1200, Switches 1-4 is for RS485 ad-
dress , switch 5 is reserved , switch 6 is for reducing noise on long RS485 cable.
3. If FR1200 is powered from TF1700 terminal ,the length of wire should be less
than 100 meters or 330 ft.
4. If the cable length is more than 200 meters or 600 ft. , the number 6 switch
should be ON as below
5. 5.If the 485Reader set as Salve , it will be used as inBIO-series reader , check
page 28 to know more.
12V DC
GND
Weigand Out
GND
WD0
WD1
485+
485-
123456
ON
123456
ON
Distance: More than 200 meters
Welcome
13:04
15-01-21 WED
Menu
User Manage
Options
PenDrive Mng
Options Access Options
Power Mng
Comm Opt
Access Options
DSen. Mode NO
485ReaderMaster
MasterState Out
To Next Page
