37
TF1700
&
ZKAccess CLASSIC 3.5 software INST
ALLA
TION GUIDE

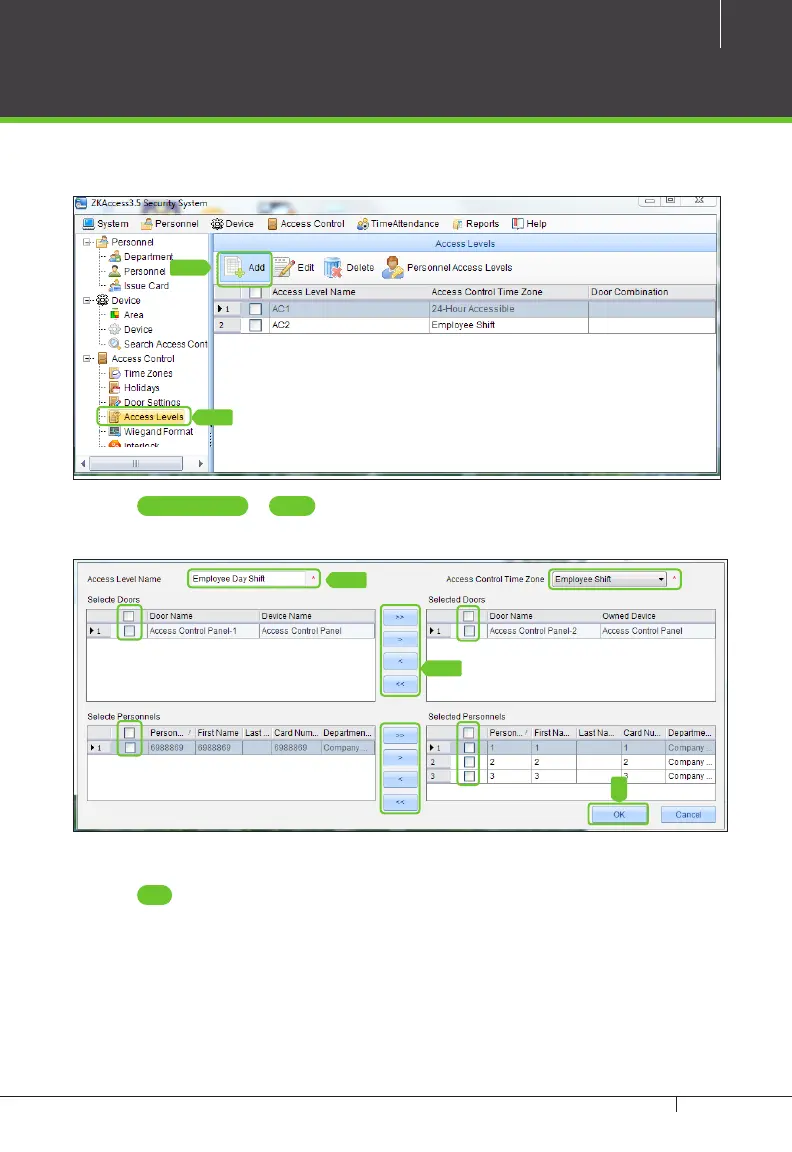

Creating an A
ccess Level
1.
Click
Access levels
>
Add
1
1
Access levels means in a specic time period, which door or door combination
can be opened through verication
2.
Set the access level name, time zone, doors
, and personnel that will have access.
3.
Click
OK
to complete setting and quit
2
2
2
36
38
Table of Contents
What' S in the Box
2
Table of Contents
3
Optional Accessories
4
Safety Precautions
5
Product PIN Diagram
6
Product Dimension
8
Cables and Connectors
9
Mounting the Reader on the Wall
10
Power Connection
11
RS485 Connection
12
PC Connection
12
FR1200 Connection
13
Lock Relay Connection
14
Normall Open Lock
14
Normall Close Lock
15
Aux. Input Connection
16
Exit Button Connection
16
Aux. Output Connection
17
Alrm Button Connection
17
Door Bell Button Connection
18
Weigand Input Connection
19
RFID Button Connection
19
Weigand Output Connection
20
Access Control Panel
20
Standalone Installation
21
FR1200 Connection
21
Installation with Third Party Panels
22
C3 Conroller Panel Connection
22
Inbio Conroller Panel Connection
23
How Does TF1700 Work
24
Troubleshooting
25
How to Place a Finger on Scanner
26
Electrical Specifications
28
Specifications
29
Downloading
31
Installation
32
Adding an Area
33
Adding a Device
34
To Add a Standalone Device
34
To Add an Access Control Panel
35
Creating a Time Zone
36
Creating an Access Level
37
Creating Departments/Enrolling Personnel
38
Importing Personnel Data from Device
40
Exporting Personnel Data to Device
41
Door Settings
42
Real Time Monitoring
43
Exporting Reports
44
Passage Mode
45
First-Card Normal Open
