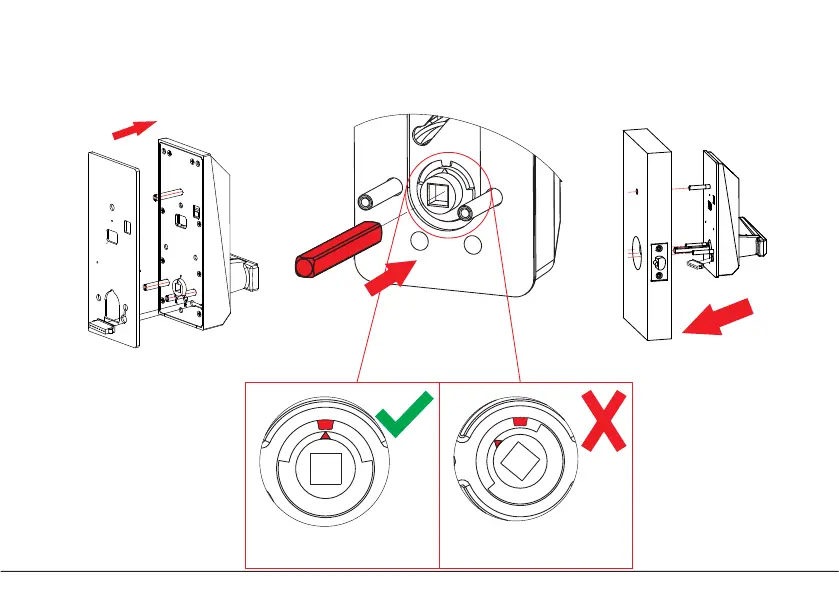

3.Install outdoor unit (B) with gasket (C) and spindle (H) on the door.
6
H
B
C
3.3
Attach
outdoor unit
(B) to door
by putting
it through
door
holes
.
3.2
I
nser
t
spindle (H)
into
the clutch.
3.1 Put gasket (
C) on
outdoor
unit
(B).
Clutch c orrect p osition: T he triangle
must b e v ertically c entered.
Incorrect position
