7

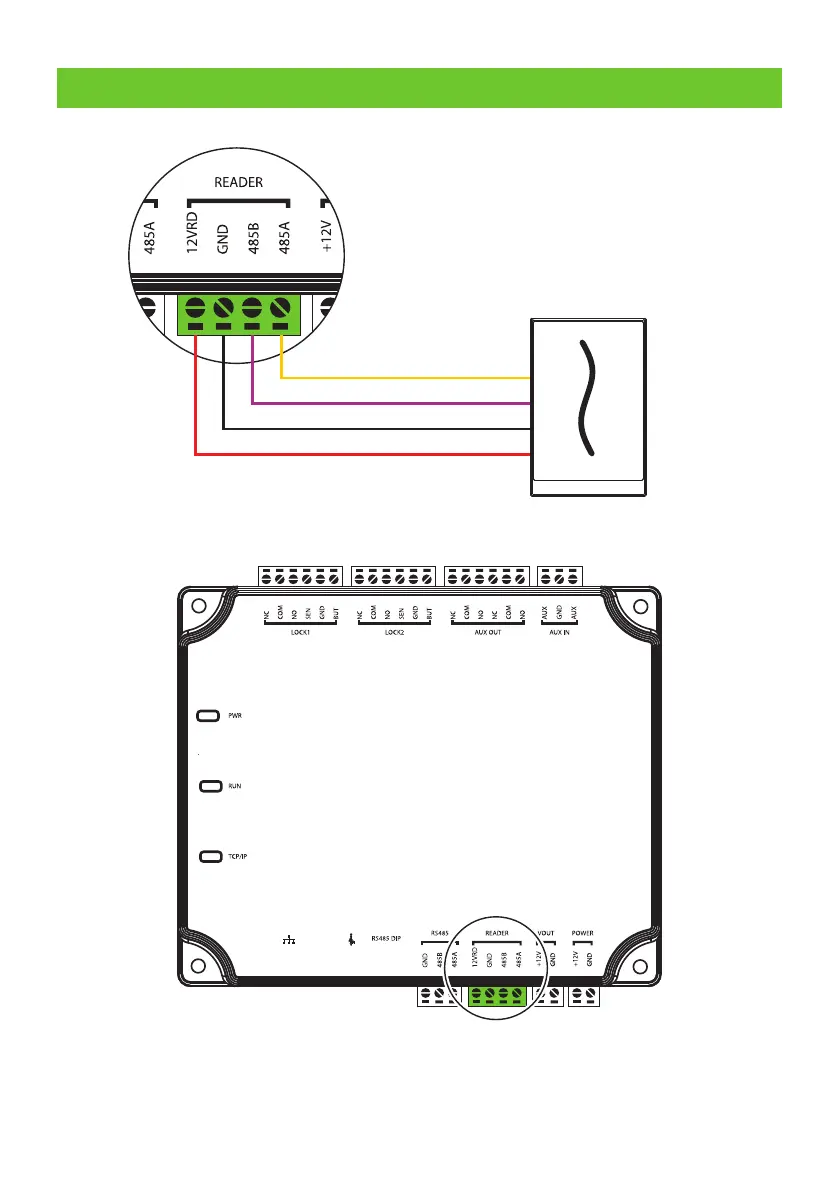

RS485 Reader Connection
8
RS485-
RS485+
GND
VCC
RS485 Reader
Note:
1. It
’
s recommended to connect maximum four r
eaders to one C2-260.
2. A single RS485 reader interface can supply a maximum of 750 mA (12V
) current. So the entire current
consumption should be less than this max value when the readers share the po
wer with the panel.
7
9
